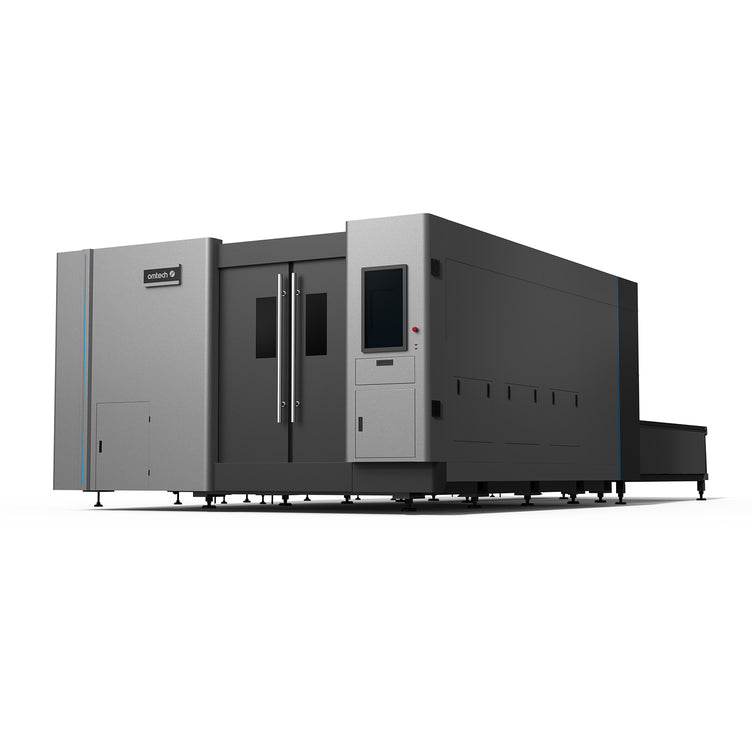

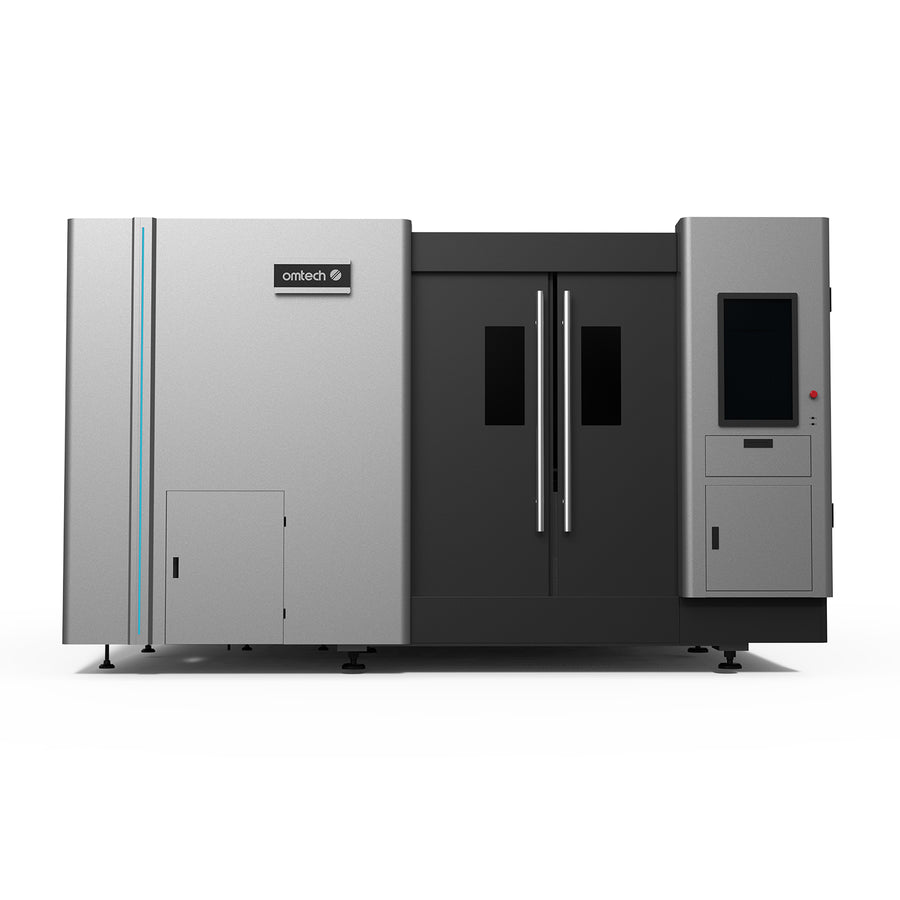

“FC-105SAT, Most desired FC for variety metal fabrication”
Price Match Guarantee
*Monthly Payment Depends on Your Credit, APR as low as 5.09%, All Payments are 100% tax-deductible
Industrial Fiber Laser Water Chiller
Transformer (SG-40) and Blower
Free On-site Installation and US Base Training
2-Year Limited Warranty and Life-time Support
Download
Get A Custom Quote
Equipped with a 1.5 kW to 6 kW IPG laser power source, the world leader in fiber optics, known for its excellent beam quality, high energy density, superior electro-optical conversion efficiency, and guaranteed stability. Maintenance-free laser cutting with an expected lifetime of 100,000 operation hours. (RAYCUS power source optional)
This model has offered the all-in-one compact design to save space on your shop floor to increase your productivity output per square feet.
Swiss-designed laser head specifically engineered for a variety of power for large format cutting applications. The industrial fiber laser head includes a high-pressure resistant, anti-dust laser shield and air-tight sealed interior that keeps the optics free of dust and debris. A drawer-type lens mount allows easy access for routine maintenance, and interchangeable laser nozzles providing an array diverse cutting capabilities.
Japanese Shimpo reducer delivers the features for today’s industry needs. High reduction ratios, without sacrificing efficiency. A compact design with overhung load capacities, and ultimate precision backlash options. All of that, while requiring minimal maintenance that ensures the reliability of machine performance at the top level of industry.
An anti-crash auto-tracking system protects the laser head & lens from accidental collisions, while a two-point centering focus system finds the perfect focal distance instantly.
With a top laser head moving speed at 2133mm per second, the FC-105SAT can help speed up your production process, saving you time and money.
European-engineered Schneider servo motors power the laser head across the gantry- rail system with extreme precision within ±0.05 mm and repeated positioning within ±0.02mm.
The high-precision Helical Gear Rack & Pinion system is 5x mill-cut ruler-processed and laser-interferometer tested to ensure acute cutting accuracy. An easy-to-use adjustment block allows quick readjustments throughout the life of the machine.
The cutting platform equipped with removable SawTooth Blades to minimize laser beam reflections and disperse radiation, enhancing edge cut quality and facilitating kerf clearance. Included sheet metal clamps provide extra stability throughout processing.
Freely to adjust the 17” computer monitor with its convenient swing-arm mount. RK–330AM Industrial Computer with Windows 10 PRO provides multi-user management and enhanced data security for businesses large and small. Upload cut files via USB 3.0, LAN, Serial Port, or Wireless Network Card.
The industry-standard fiber cutting software simplifies complex sheet cutting tasks with in-depth design tools, integrating CAD, Nest, and CAM modules in one package. Complete drawing, editing, nesting, and workpiece framing in only a few clicks.
Create various gas assist presets that activate automatically or manually control the type of gas, flow, and pressure independently. The actual air/gas pressure output is displayed on the control panel in real time. FC-105SAT additionally provides an automatic lubrication system.
Multiple debris zones funnel below the workbed to collect scrap and dust, channeling metal waste into a rolling cleanup tray.
Your purchase includes an OMTech OEM PRO-Series Water Chiller specially designed to water-cool industrial fiber laser systems
Your purchase includes an SG-40 Electric Transformer and TNS-30 Automatic Voltage Regulator to ensure a consistent supply of electricity to the fiber power source. The included centrifugal dust blower removes up to 2356 m³/h.
Design, final assembly, and quality control completed in USA with 2-Year Bumper to Bumper Limited Warranty.
All purchases include lifetime product technical support with an OMTech Laser Specialists based in Anaheim, California.
Your purchase includes onsite installation and training service led by OMTech US based Expert Technician. Your team will learn all basic aspects of fiber laser safety, machine setup, maintenance, software, and (time permitting) your specific cut job configuration.
-
Working Area
3000 × 1500 mm
-
Positioning Accuracy (X/Y)
±0.05 mm
-
Repeated Positioning Accuracy (X/Y)
±0.02 mm
-
Max Speed
2166 mm/s
-
Z-Axis Travel
330 mm
-
Max Acceleration
1 G
-
Work Table Max Load
700 kg
-
Metal Safety Cover
YES
-
Shuffle Table
Dual Shuffle Platform (25s)
-
Tube Cutter Dimensions
Circular Tube: φ20-220mm; Square Tube: φ20-150mm; Rectangular Tube: Diagonal ≤200 mm
-
Machine Packaging Dimensions
Main Bed + Switch Bed + Base：5000 × 2300 × 2100 mm; Tube Cutting Section + Base: 8200× 1140× 2300; Large Metal Enclosure: 4800 × 2200 × 2250 mm
-
Power Parameters
3-Phase AC380V 50 Hz/60 Hz(Compatible with 208V, 220V, 480V power systems via transformer)
-
Power Protection Level
IP54
-
Laser Power
1500 - 4000 W
-
Power Parameters
3-Phase AC380V 50 Hz/60 Hz
-
Max Tube Cutting Load
150 kg
-
Max Tube Cutting Length
6000 mm
-
Machine Size
8330 × 3910 × 2260 mm
-
Machine Net Weight
9150 kg (6 kW)
-
30 mm Circular Cut Accuracy
0.05-0.10 mm
-
30 mm Adjacent Cut Accuracy
0.05-0.10 mm
-
200 mm Adjacent Cut Accuracy
0.05-0.10 mm
-
200 mm Diagonal Cut Accuracy
0.05-0.10 mm
You Choose The Power of The Laser
Laser power can vary from 1 to 6 kW depending on the thickness and quality of the material to be cut. Ask the sales office for more information to choose the right power for your needs.

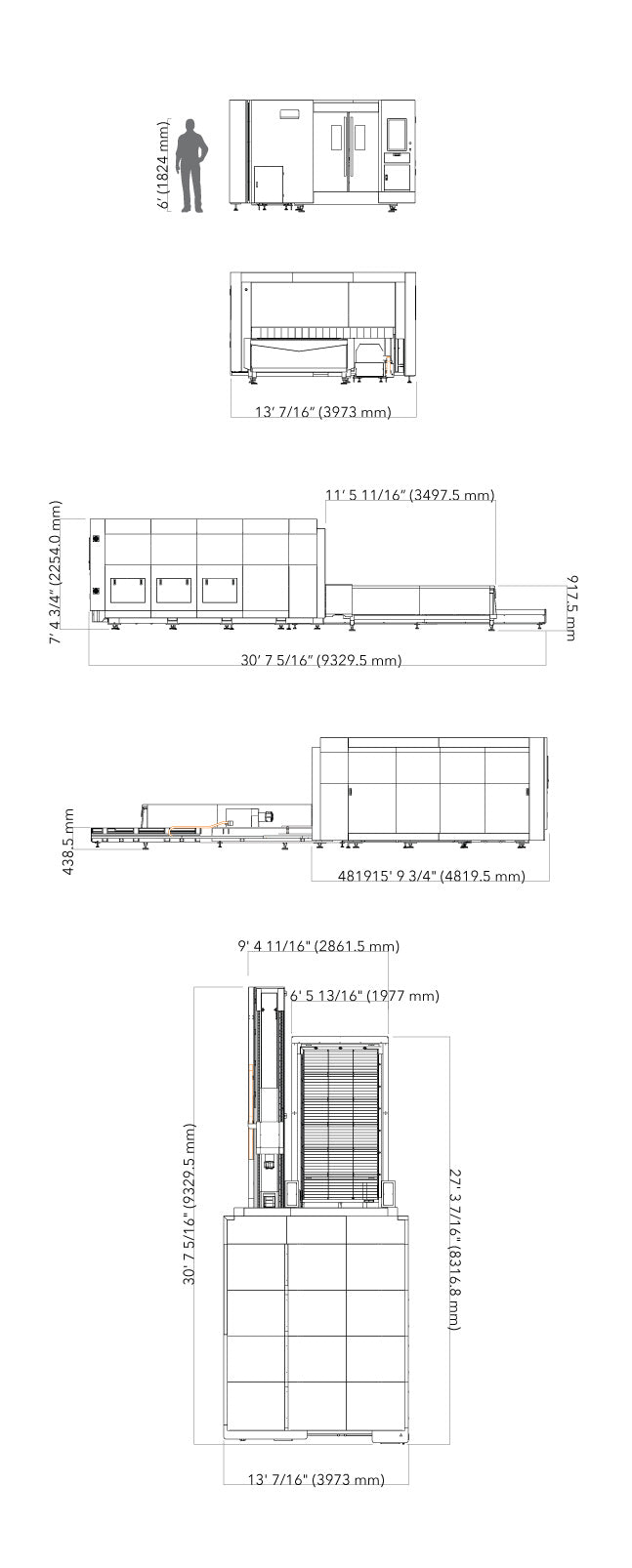

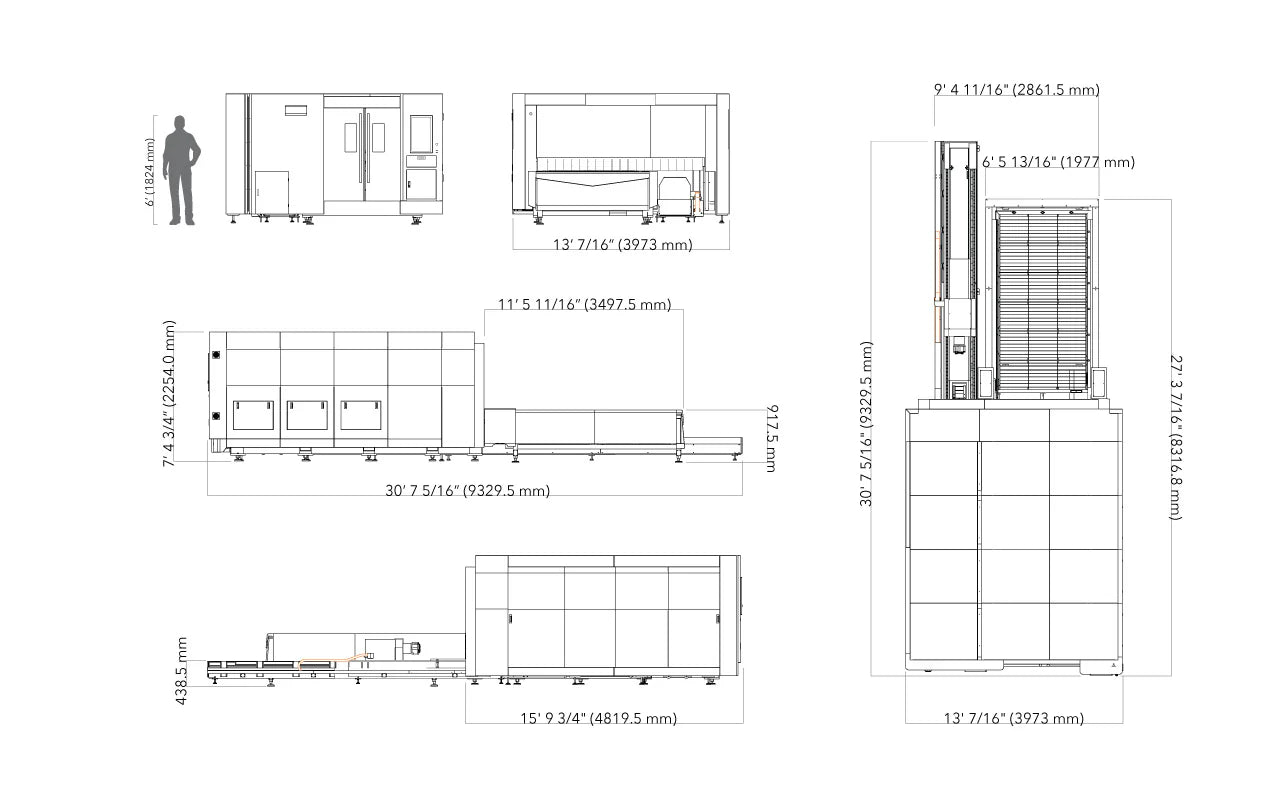

Dimensions
Warranty 30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your OMTech Fiber Cutter purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new OMTech machine that we do, which is why every Fiber Cutter Machine purchase includes our Hassle-Free OMTech 30-Day Return option in order to fully experience and evaluate their new OMTech machine.
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the OMTech FC Series of products will perform according to the warranty policy stated above from date of invoice.
Title
The FC-105SAT is worth considering if your business regularly cuts both sheet metal and tubes, needs a 3000 × 1500 mm sheet working area, handles tubes up to 6 meters long, and would benefit from a dual-table production workflow.
If you only process flat sheet, only produce small parts, or have relatively low cutting volume, a simpler FC-Series configuration may offer a better return on investment.
The FC-105SAT supports both sheet metal and tube cutting, with IPG laser power options ranging from 1.5 kW to 6 kW. For sheet metal, maximum cutting capacity increases with laser power. At 6 kW, the machine can cut carbon steel up to approximately 28 mm, stainless steel up to 16 mm, aluminum up to 14 mm, and brass or copper up to 10 mm under suitable cutting conditions.
For tube fabrication, the FC-105SAT supports round, square, rectangular, and structural profiles such as angle iron and C-channel. It can handle round tubes from 20–220 mm, square tubes from 20–150 mm, and rectangular tubes with a diagonal of up to 200 mm. The maximum supported tube length is 6000 mm (19.68 ft), with a maximum load of 150 kg (330 lbs).
The FC-105SAT is best suited for fabrication businesses that regularly work with both sheet and tube metal. Typical applications include automotive parts, structural components, furniture frames, machinery, equipment fabrication, railings, enclosures, and custom metal products.
For shops that only cut flat sheet metal, a dedicated flatbed fiber laser may be a more economical choice.
Both machines offer a 3000 × 1500 mm sheet cutting area, but the FC-105SAT adds an integrated tube cutting system and a dual shuffle platform. The FC-105SAT is therefore better suited for businesses that need to process both sheet and tube products or require a more production-oriented workflow.
The FC-510 may be a better fit when your work is primarily flat sheet metal and you do not need integrated tube cutting.
Yes. Commercial financing plans are available with monthly payments depending on credit profile (APR as low as 5.09%). Equipment financing allows 100% tax deductibility under Section 179 in the US. Contact our sales department for custom quotes and term options.
Due to its combined sheet and 6 m tube cutting system, the FC-105SAT is a heavy-duty industrial setup:
- Footprint & Weight: Total dimensions are 8330 × 3910 × 2260 mm (27.3 × 12.8 × 7.4 ft), with a total weight of 9,150 kg (20,172 lbs). Ensure your shop floor meets industrial concrete load-bearing standards and has forklift/crane rigging available upon delivery.
- Power Supply: Operates on 3-phase AC 380V (50 Hz/60 Hz). Includes a high-capacity SG-40 Electric Transformer and TNS-30 Voltage Regulator to adapt to U.S. 208V, 220V, or 480V 3-phase power systems.
- Assist Gas Requirements: High-purity nitrogen (N₂) can be used for stainless steel and aluminum when oxide-free edges are required, while oxygen (O₂) is commonly used for thicker carbon steel. A dry compressed air system (≥16 bar) can also be used for high-speed cutting of suitable thin-gauge materials.
The FC-105SAT features a 25-second fast dual exchange platform. While the laser head actively cuts a 5' X 10' sheet inside the fully enclosed Class 1 chamber, operators can safely unload finished parts and load a new raw sheet on the external platform. This eliminates downtime between cycles, boosting overall shop throughput by up to 40% compared to single pull-out bed designs.
