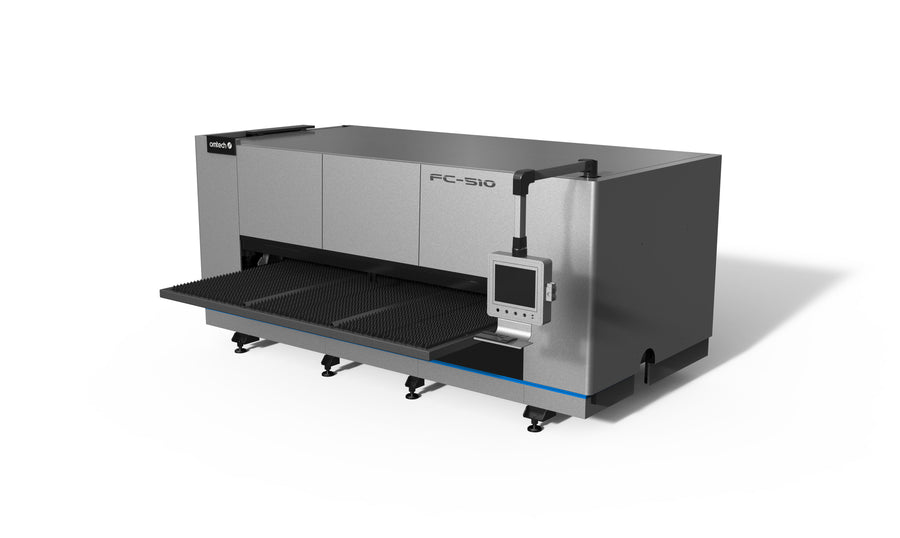

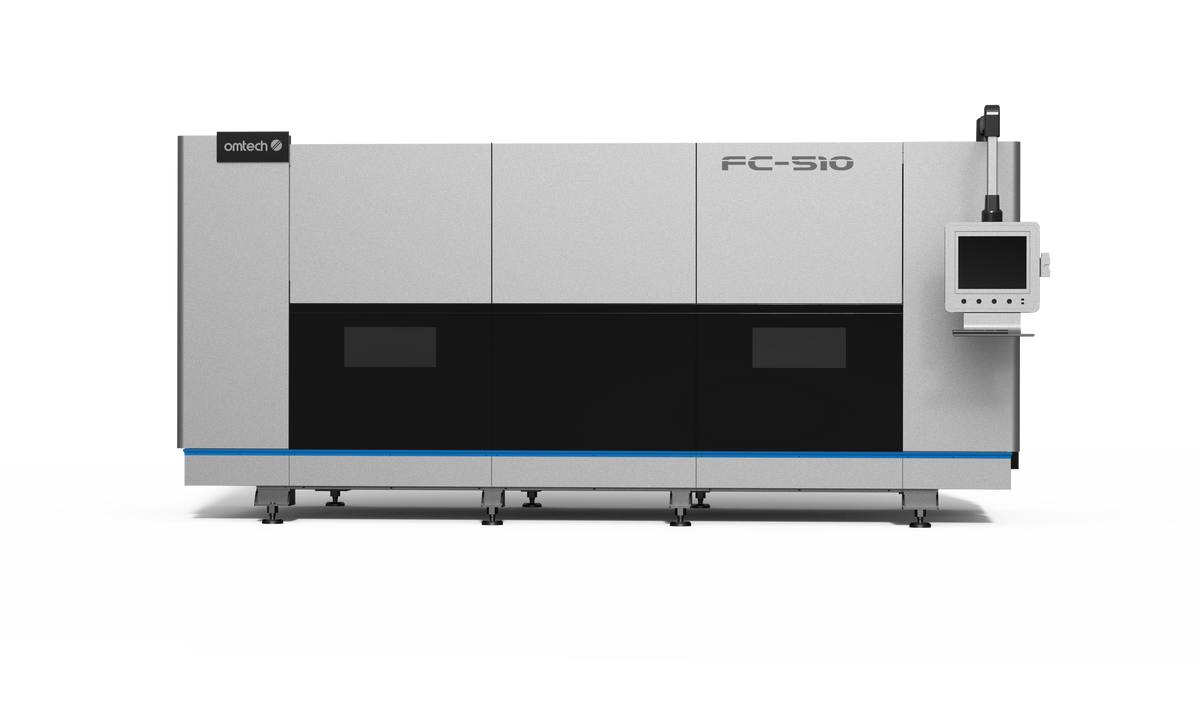

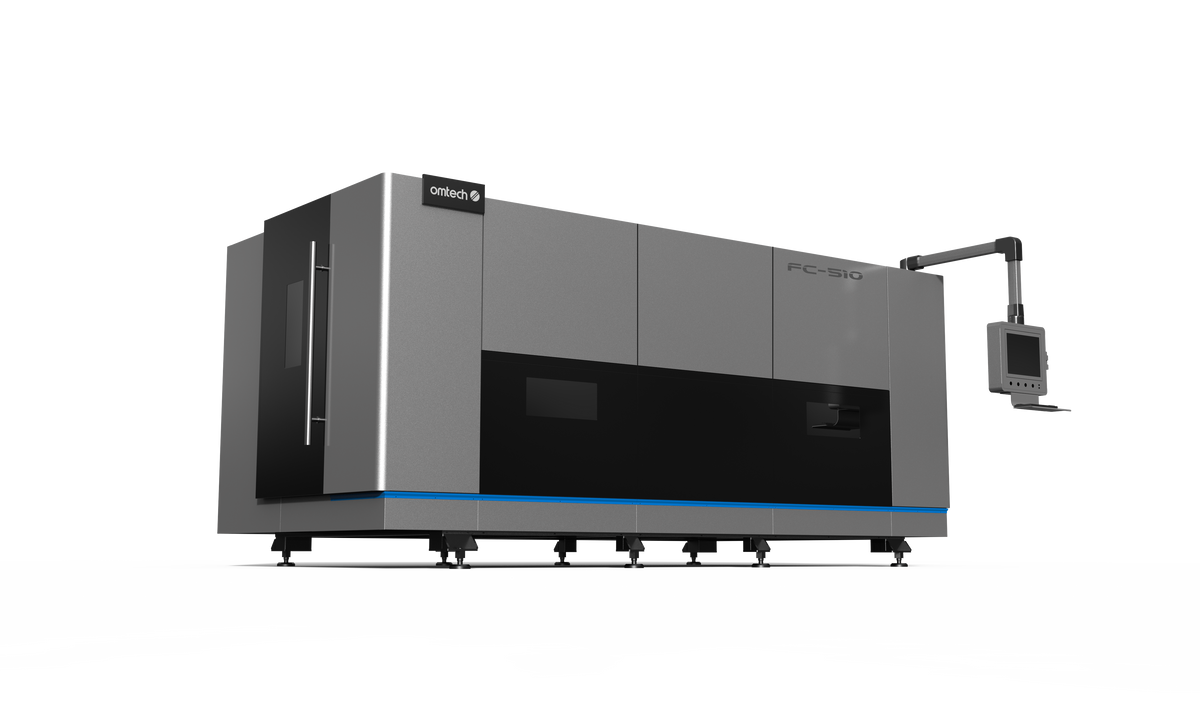

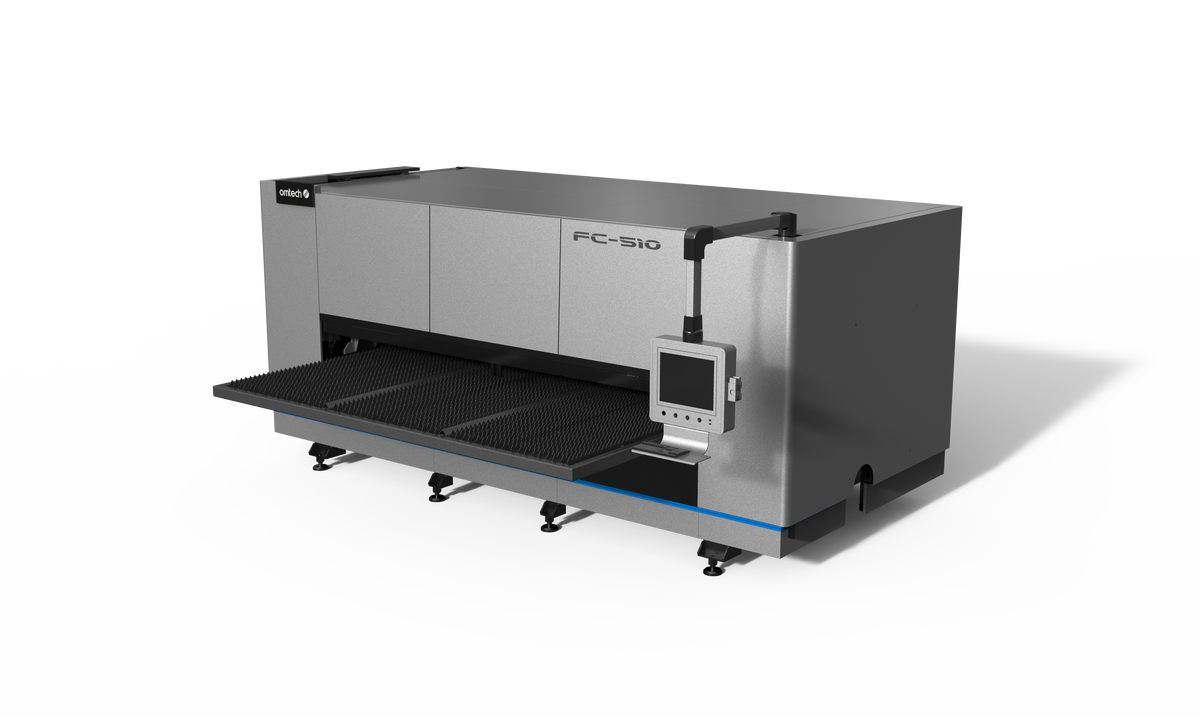

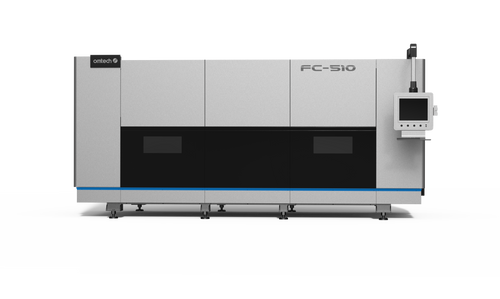

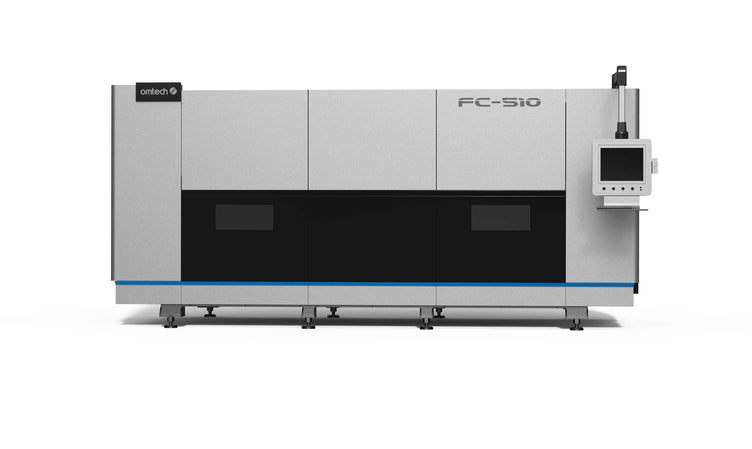

OMTech FC-510 comes equipped with an industry leading IPG 1.5 kW to 4 kW power source. The 5’x10’ working table comes fully enclosed for maximum safety for your business, and features a pull-out platform for easy material exchange. This precise and elegantly designed machine easily fits into any operational space without impeding other business operations. Includes all you need to get started, a reliable 2 year warranty, onsite installation plus training, and lifetime US-based technical support staff. Designed and assembled in the USA by OMTech’s team of expert laser engineers to meet all your light to heavy metal fabrication needs.
“FC-510, Superior Solution for Space Saving Safety”
OMTech FC-510 comes equipped with an industry leading IPG 1.5 kW to 4 kW power source. The 5’x10’ working table comes fully enclosed for maximum safety for your business, and features a pull-out platform for easy material exchange. This precise and elegantly designed machine easily fits into any operational space without impeding other business operations. Includes all you need to get started, a reliable 2 year warranty, onsite installation plus training, and lifetime US-based technical support staff. Designed and assembled in the USA by OMTech’s team of expert laser engineers to meet all your light to heavy metal fabrication needs.
The FC-510 is equipped with a 1.5 kW to 4 kW IPG laser power source, the world leader in fiber optics, known for its excellent beam quality, high energy density, superior electro-optical conversion efficiency, and guaranteed stability. Maintenance-free laser cutting with an expected lifetime of 100,000 operation hours. (RAYCUS power source optional)
This model has offered the all-in-one compact design to save space on your shop floor to increase your productivity output per square feet.
Swiss-designed laser head specifically engineered for a variety of power for large format cutting applications. The industrial fiber laser head includes a high-pressure resistant, anti-dust laser shield and air-tight sealed interior that keeps the optics free of dust and debris. A drawer-type lens mount allows easy access for routine maintenance, and interchangeable laser nozzles providing an array diverse cutting capabilities.
An anti-crash auto-tracking system protects the laser head & lens from accidental collisions, while a two-point centering focus system finds the perfect focal distance instantly.
With a top laser head moving speed at 1333mm per second, the FC-105 can help speed up your production process, saving you time and money.
European-engineered Schneider servo motors power the laser head across the gantry- rail system with extreme precision within ±0.05 mm and repeated positioning within ±0.02mm.
The high-precision Helical Gear Rack & Pinion system is 5x mill-cut ruler-processed and laser-interferometer tested to ensure acute cutting accuracy. An easy-to-use adjustment block allows quick readjustments throughout the life of the machine
All OMTECH FC series equipped with aerospace-grade 6061-T6 aluminum beams annealed at 1112°F (600°C) with a reinforcing triangular framework for extra rigidity, excellent shock absorption, and lightweight, low-inertia performance. Each beam is rough-machined, annealed, and twice vibration age-treated to ensure a lifetime of strength and stability.
The cutting platform equipped with removable SawTooth Blades to minimize laser beam reflections and disperse radiation, enhancing edge cut quality and facilitating kerf clearance. Included sheet metal clamps provide extra stability throughout processing.
Freely to adjust the 17” computer monitor with its convenient swing-arm mount. RK–330AM Industrial Computer with Windows 10 PRO provides multi-user management and enhanced data security for businesses large and small. Upload cut files via USB 3.0, LAN, Serial Port, or Wireless Network Card.
The industry-standard fiber cutting software simplifies complex sheet cutting tasks with in-depth design tools, integrating CAD, Nest, and CAM modules in one package. Complete drawing, editing, nesting, and workpiece framing in only a few clicks.
Create various gas assist presets that activate automatically or manually control the type of gas, flow, and pressure independently. The actual air/gas pressure output is displayed on the control panel in real time.
Multiple debris zones funnel below the workbed to collect scrap and dust, channeling metal waste into a rolling cleanup tray.
Your purchase includes an OMTech OEM PRO-Series Water Chiller specially designed to water-cool industrial fiber laser systems
Your purchase includes an SG-40 Electric Transformer and TNS-30 Automatic Voltage Regulator to ensure a consistent supply of electricity to the fiber power source. The included centrifugal dust blower removes up to 2356 m³/h.
Design, final assembly, and quality control completed in USA with 2-Year Bumper to Bumper Limited Warranty.
All purchases include lifetime product technical support with an OMTech Laser Specialists based in Anaheim, California.
Your purchase includes onsite installation and training service led by OMTech US based Expert Technician. Your team will learn all basic aspects of fiber laser safety, machine setup, maintenance, software, and (time permitting) your specific cut job configuration.
-
Working Area
3000 × 1500 mm
-
Positioning Accuracy (X/Y)
±0.05 mm/m
-
Repeated Positioning Accuracy (X/Y)
±0.02 mm
-
Max Speed
1333 mm/s
-
Z-Axis Travel
100 mm
-
Max Acceleration
1 G
-
Work Table Max Load
300 kg
-
Metal Safety Cover
YES
-
Shuffle Table
Single Pull-Out Platform
-
Machine Size
4890 × 2300 × 2290 mm
-
Machine Net Weight
2900 kg
-
Machine Packaging Dimensions
5860 × 2320 × 2240 mm
-
Product Weight
3400 kg
-
Power Protection Level
IP54
-
Laser Power
1.5 kW, 2 kW, 3 kW, 4 kW
-
Power Parameters
3-Phase AC380V 50 Hz/60 Hz (Compatible with 208V, 220V, 480V power systems via transformer)
-
30 mm Circular Cut Accuracy
0.10-0.15 mm
-
30 mm Adjacent Cut Accuracy
0.08-0.12 mm
-
200 mm Adjacent Cut Accuracy
0.10-0.16 mm
-
200 mm Diagonal Cut Accuracy
0.15-0.20 mm
Laser power can vary from 1.5 to 4 kW depending on the thickness and quality of the material to be cut. Ask the sales office for more information to choose the right power for your needs.
Warranty 30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your OMTech Fiber Cutter purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new OMTech machine that we do, which is why every Fiber Cutter Machine purchase includes our Hassle-Free OMTech 30-Day Return option in order to fully experience and evaluate their new OMTech machine.
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the OMTech FC Series of products will perform according to the warranty policy stated above from date of invoice.
Frequently Asked Questions About the OMTech FC-510
The FC-510 is designed for fabrication businesses that need a full-size 5' × 10' fiber laser cutting platform while still prioritizing an enclosed, space-efficient machine layout.
It can be a strong fit for:
- Sheet metal fabrication shops
- Automotive and aftermarket manufacturers
- Metal sign manufacturers
- Job shops
- Equipment and enclosure manufacturers
- HVAC and ductwork businesses
- Prototype and small-batch manufacturers
- Businesses bringing outsourced metal cutting in-house
With a 3000 × 1500 mm working area, the FC-510 is better suited than smaller-format machines for businesses that regularly work with larger sheet stock.
The FC-510 is designed for cutting compatible metals using fiber laser technology.
Typical applications can include:
- Mild steel
- Stainless steel
- Aluminum
- Brass
- Other compatible sheet metals
Actual cutting capability depends on the selected laser power, material grade, thickness, assist gas, cutting parameters, and required edge quality.
If you provide OMTech with your material type and thickness, our team can help recommend the appropriate FC-510 configuration.
The right power depends on the work your shop performs.
1.5 kW may be suitable for businesses focused primarily on thinner sheet metal and lighter fabrication work.
2 kW can provide additional flexibility for mixed fabrication workloads and growing production requirements.
3 kW may be a better fit for shops that regularly process thicker materials or require greater throughput.
4 kW is intended for more demanding production environments where cutting speed, productivity, and thicker-material capability are higher priorities.
Rather than selecting power based on wattage alone, we recommend matching the machine to your most common materials, thicknesses, and daily workload.
Yes. The FC-510 is designed for fabrication environments requiring repeatable sheet-metal cutting.
Features supporting production use include:
- Up to 1333 mm/s head movement speed
- Schneider servo motors and drivers
- High-precision helical gear rack
- Aerospace-grade aluminum gantry
- Automatic gas and lubrication system
- Integrated debris collection
- Industrial water chiller
- Large 3000 × 1500 mm work area
The appropriate production configuration will depend on your required throughput and material mix.
The FC-510 is specified with:
Positioning Accuracy: ±0.05 mm/m
Repeat Positioning Accuracy: ±0.02 mm
Published processing accuracy varies depending on geometry.
For example:
- 30 mm circular cut accuracy: 0.10–0.15 mm
- 30 mm adjacent cut accuracy: 0.08–0.12 mm
- 200 mm adjacent cut accuracy: 0.10–0.16 mm
- 200 mm diagonal cut accuracy: 0.15–0.20 mm
Actual results may also depend on material, thickness, machine setup, cutting parameters, and operating conditions.

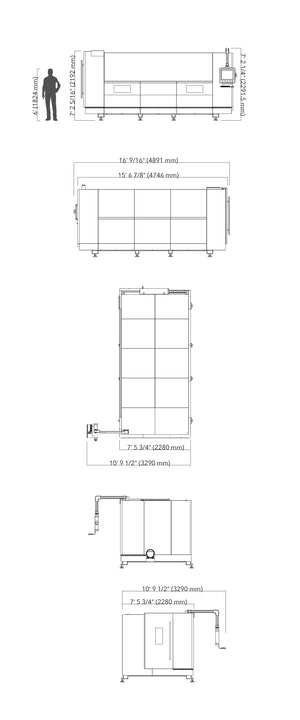

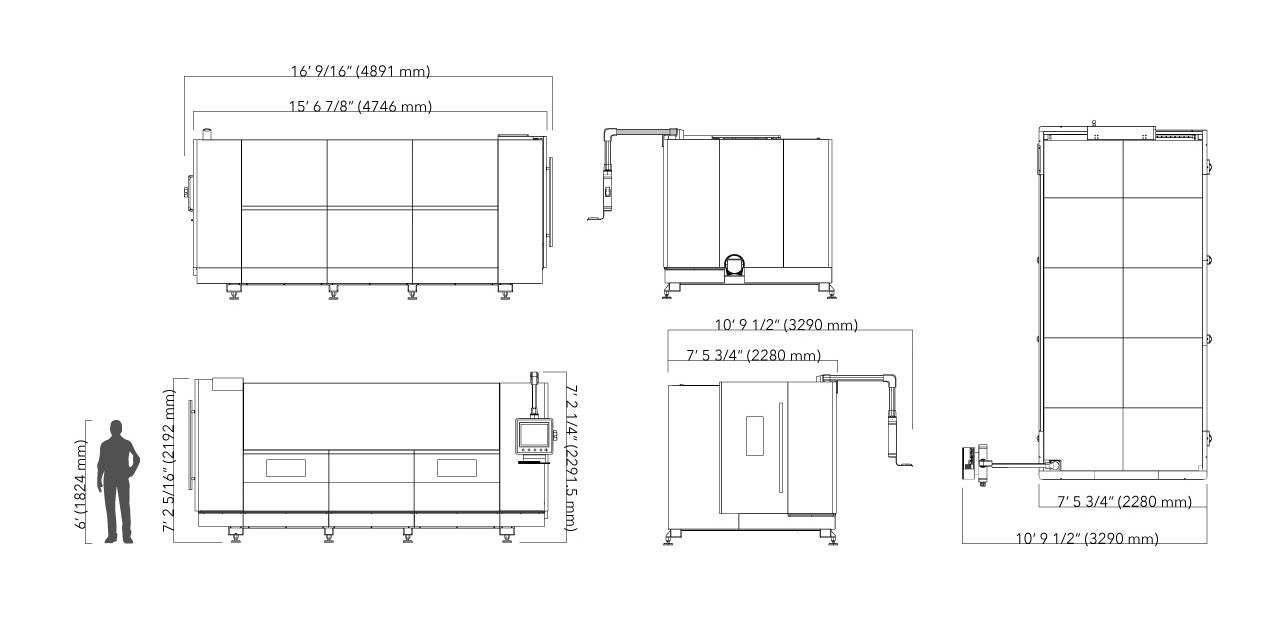

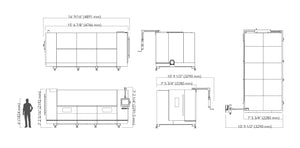

The machine itself measures approximately:
4890 × 2300 × 2290 mm
However, your installation area should be larger than the machine footprint.
Additional clearance should be planned for:
- Operator access
- Material loading
- Pull-out platform movement
- Maintenance
- Electrical connections
- Assist gas connections
- Water chiller
- Blower and extraction
- Material handling equipment
We recommend reviewing your planned installation area with OMTech before delivery.
The biggest difference is working area.
The FC-44 offers a 1300 × 1300 mm cutting area and is designed for smaller parts and more compact fabrication environments.
The FC-510 provides a much larger 3000 × 1500 mm working area, making it more suitable for larger sheet-metal jobs and businesses that require greater material capacity.
Choose the FC-44 when:
- Floor space is limited
- Most components are relatively small
- Full-size sheet processing is not required
Choose the FC-510 when:
- Larger sheet stock is common
- You manufacture larger panels or components
- You want greater flexibility for production work
The FC-510 has a 3000 × 1500 mm working area, making it suitable for many large-format sheet metal applications.
Before purchasing, compare the exact dimensions of the stock you normally receive with the machine's usable working area.
If your business frequently processes sheet sizes beyond this working envelope, speak with OMTech about other FC-Series configurations.
Cutting capacity depends on laser power, material, and assist gas. The FC-510 can cut carbon steel up to approximately 14–25 mm, stainless steel up to 6–12 mm, aluminum up to 5–10 mm, and brass or copper up to 3–8 mm, depending on whether you choose the 1.5 kW, 2 kW, 3 kW, or 4 kW configuration.
Actual cutting performance may vary based on material grade, gas purity, machine settings, and required edge quality.
