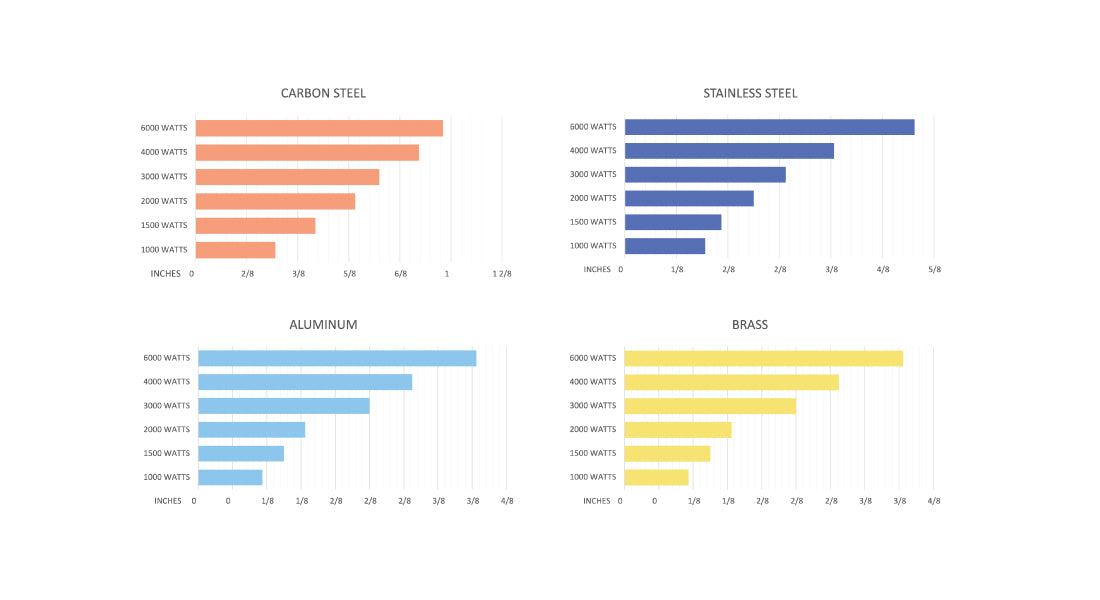

Equipped with a wide range 1.5-4 kW IPG laser power source, the world leader in fiber optics, known for its excellent beam quality, high energy density, superior electro-optical conversion efficiency, and guaranteed stability. Maintenance-free laser cutting with an expected lifetime of 100,000 operation hours. (RAYCUS power source optional)

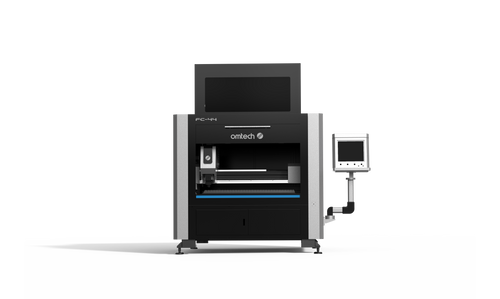

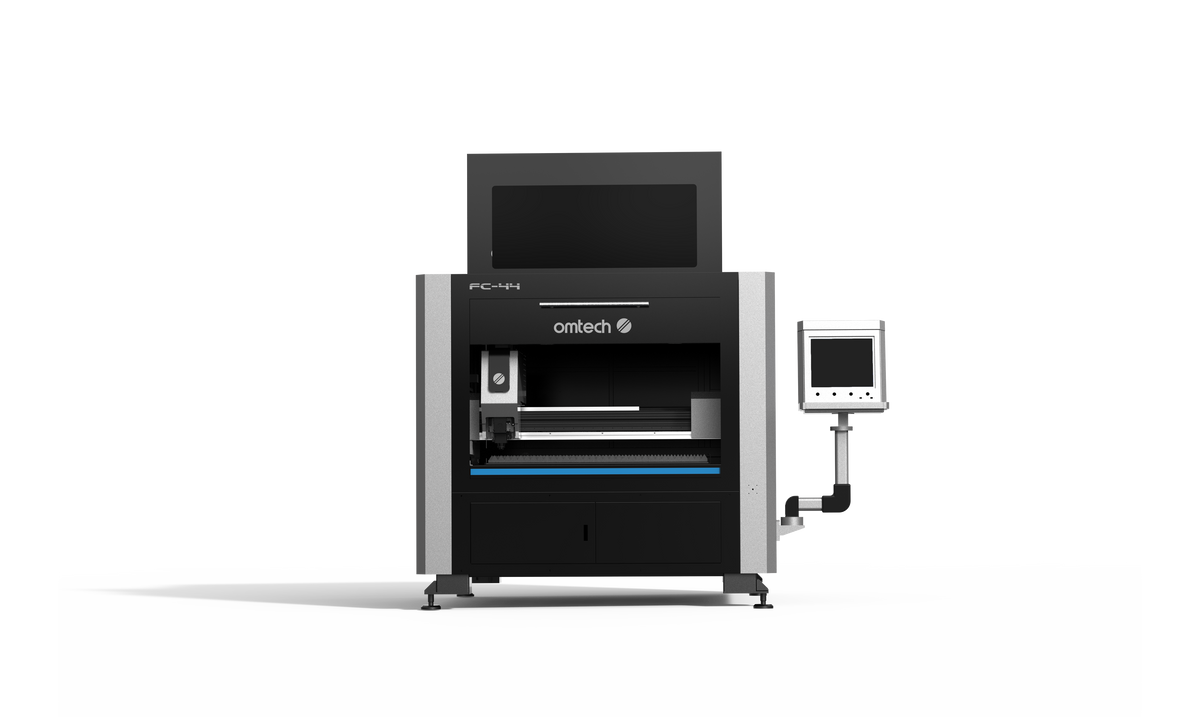

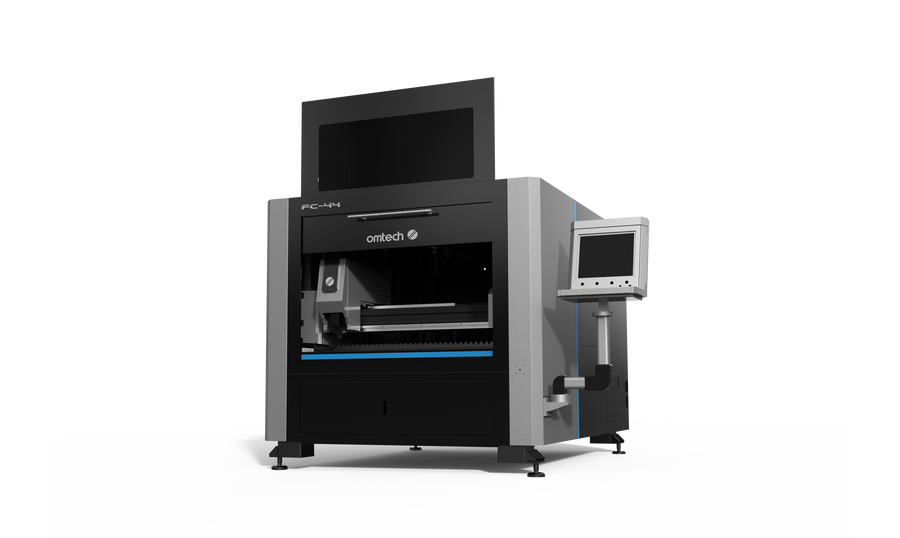

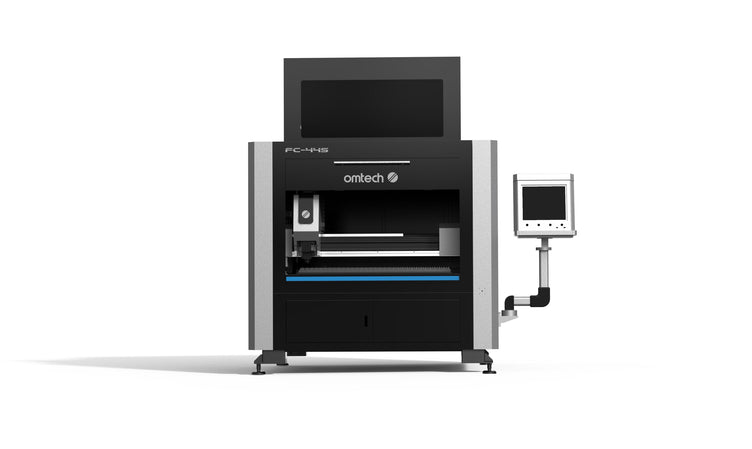

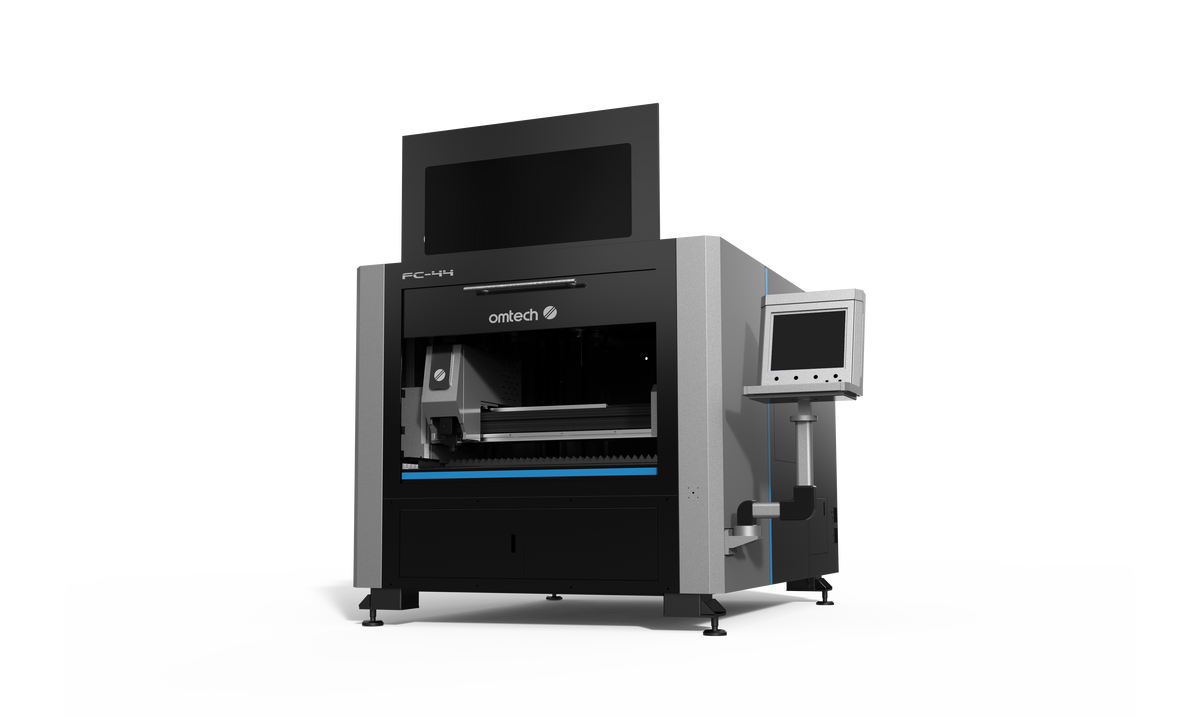

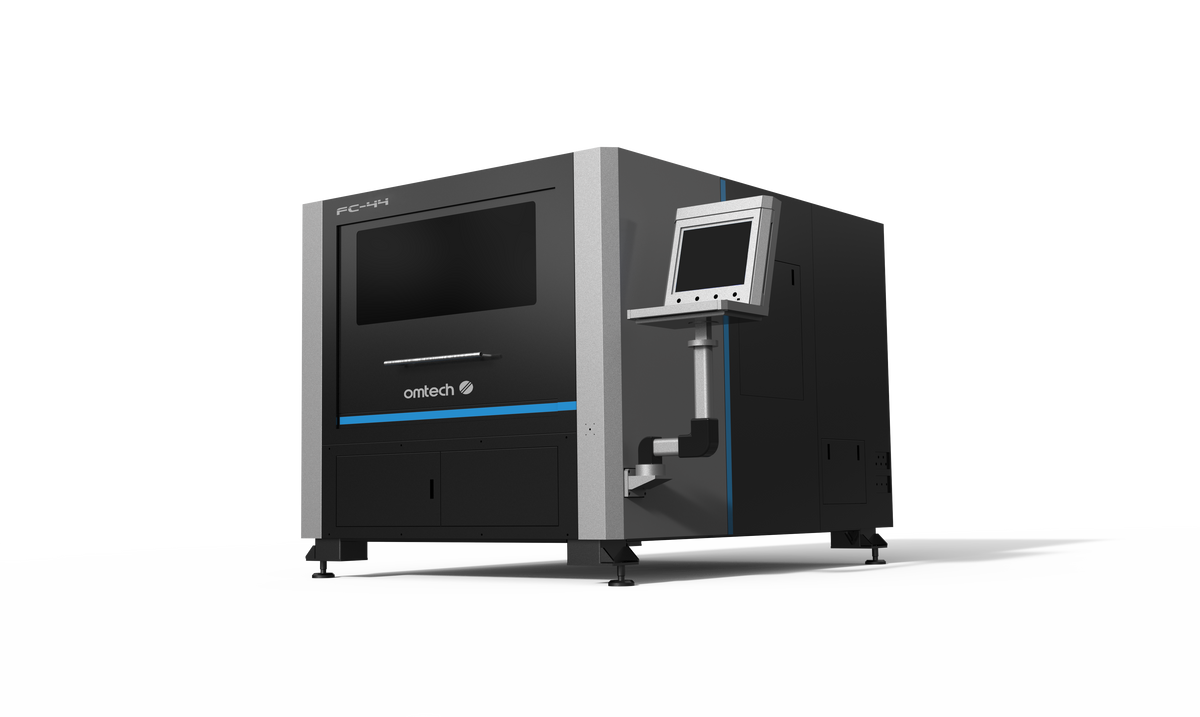

This model has offered the all-in-one compact design to save space on your shop floor to increase your productivity output per square feet.

Swiss-designed laser head specifically engineered for a variety of power for large format cutting applications. The industrial fiber laser head includes a high-pressure resistant, anti-dust laser shield and air-tight sealed interior that keeps the optics free of dust and debris. A drawer-type lens mount allows easy access for routine maintenance, and interchangeable laser nozzles providing an array diverse cutting capabilities.

An anti-crash auto-tracking system protects the laser head & lens from accidental collisions, while a two-point centering focus system finds the perfect focal distance instantly.

With a top laser head moving speed at 1333 mm per second, the FC-105 can help speed up your production process, saving you time and money.

European-engineered Schneider servo motors power the laser head across the gantry-rail system with extreme precision within ±0.05 mm and repeated positioning within ±0.02 mm.

The high-precision Helical Gear Rack & Pinion system is 5× mill-cut ruler-processed and laser-interferometer tested to ensure acute cutting accuracy. An easy-to-use adjustment block allows quick readjustments throughout the life of the machine.

All OMTECH FC series equipped with aerospace-grade 6061-T6 aluminum beams annealed at 600 °C (1112 °F) with a reinforcing triangular framework for extra rigidity, excellent shock absorption, and lightweight, low-inertia performance. Each beam is rough-machined, annealed, and twice vibration age-treated to ensure a lifetime of strength and stability.

The cutting platform equipped with removable SawTooth Blades to minimize laser beam reflections and disperse radiation, enhancing edge cut quality and facilitating kerf clearance. Included sheet metal clamps provide extra stability throughout processing.

Freely to adjust the 17” computer monitor with its convenient swing-arm mount. RK-330AM Industrial Computer with Windows 10 PRO provides  multi-user management and enhanced data security for businesses large and small. Upload cut files via USB 3.0, LAN, Serial Port, or Wireless Network Card.

The industry-standard fiber cutting software simplifies complex sheet cutting tasks with in-depth design tools, integrating CAD, Nest, and CAM modules in one package. Complete drawing, editing, nesting, and workpiece framing in only a few clicks.

Create various gas assist presets that activate automatically or manually control the type of gas, flow, and pressure independently. The actual air/gas pressure output is displayed on the control panel in real time.

Multiple debris zones funnel below the workbed to collect scrap and dust, channeling metal waste into a rolling cleanup tray.

Your purchase includes an OMTech OEM PRO-Series Water Chiller specially designed to water-cool industrial fiber laser systems

Your purchase includes an SG-40 Electric Transformer and TNS-30 Automatic Voltage Regulator to ensure a consistent supply of electricity to the fiber power source. The included centrifugal dust blower removes up to 2356 m³/h.

Design, final assembly, and quality control completed in USA with 2-Year Bumper to Bumper Limited Warranty.

All purchases include lifetime product technical support with an OMTech Laser Specialists based in Anaheim, California.

Your purchase includes onsite installation and training service led by OMTech US based Expert Technician. Your team will learn all basic aspects of fiber laser safety, machine setup, maintenance, software, and (time permitting) your specific cut job configuration.
