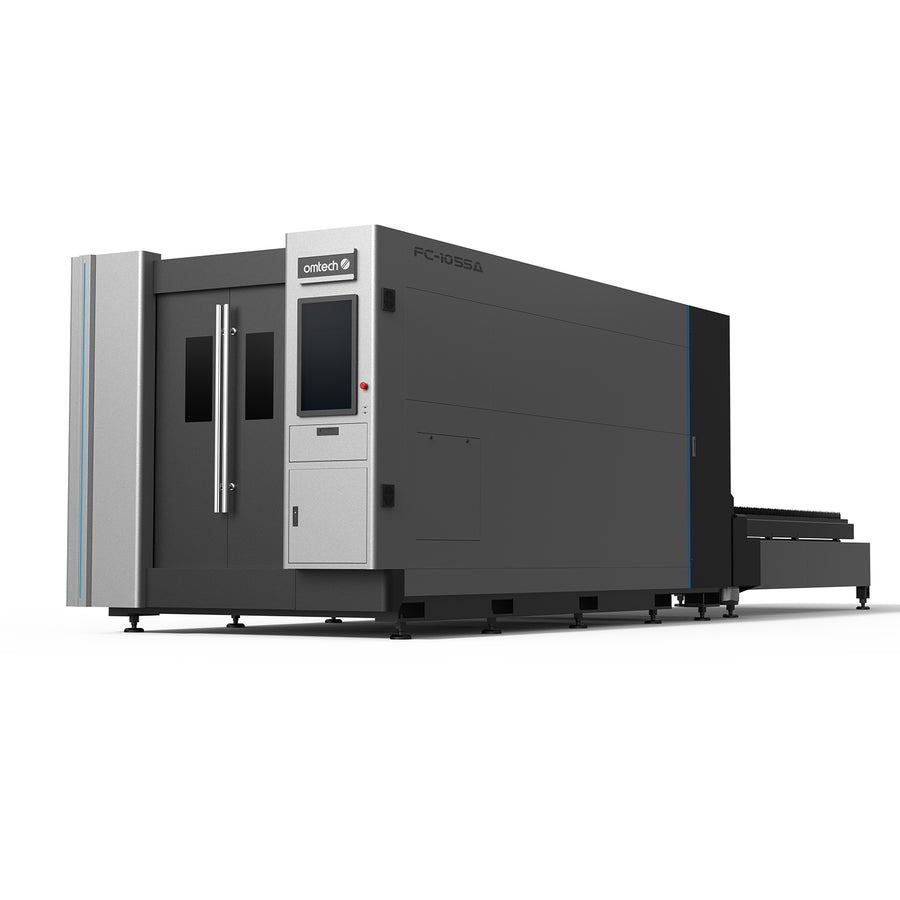

“FC-105SA, Most desired FC for variety metal fabrication”
Price Match Guarantee
*Monthly Payment Depends on Your Credit, APR as low as 5.09%, All Payments are 100% tax-deductible
- Industrial Fiber Laser Water Chiller
- Transformer (SG-40) and Blower
- Free On-site Installation and US Base Training
- 2-Year Limited Warranty and Life-time Support
Download
Get A Custom Quote
Equipped with a 1.5 kW to 6 kW IPG laser power source, the world leader in fiber optics, known for its excellent beam quality, high energy density, superior electro-optical conversion efficiency, and guaranteed stability. Maintenance-free laser cutting with an expected lifetime of 100,000 operation hours. (RAYCUS power source optional)
This model has offered the all-in-one compact design to save space on your shop floor to increase your productivity output per square feet.
Swiss-designed laser head specifically engineered for a variety of power for large format cutting applications. The industrial fiber laser head includes a high-pressure resistant, anti-dust laser shield and air-tight sealed interior that keeps the optics free of dust and debris. A drawer-type lens mount allows easy access for routine maintenance, and interchangeable laser nozzles providing an array diverse cutting capabilities.
Japanese Shimpo reducer delivers the features for today’s industry needs. High reduction ratios, without sacrificing efficiency. A compact design with overhung load capacities, and ultimate precision backlash options. All of that, while requiring minimal maintenance that ensures the reliability of machine performance at the top level of industry.
An anti-crash auto-tracking system protects the laser head & lens from accidental collisions, while a two-point centering focus system finds the perfect focal distance instantly.
With a top laser head moving speed at 2166mm per second, the FC-105SA can help speed up your production process, saving you time and money.
European-engineered Schneider servo motors power the laser head across the gantry- rail system with extreme precision within ±0.05 mm and repeated positioning within ±0.02mm.
The high-precision Helical Gear Rack & Pinion system is 5x mill-cut ruler-processed and laser-interferometer tested to ensure acute cutting accuracy. An easy-to-use adjustment block allows quick readjustments throughout the life of the machine.
The cutting platform equipped with removable SawTooth Blades to minimize laser beam reflections and disperse radiation, enhancing edge cut quality and facilitating kerf clearance. Included sheet metal clamps provide extra stability throughout processing.
Freely to adjust the 17” computer monitor with its convenient swing-arm mount. RK–330AM Industrial Computer with Windows 10 PRO provides multi-user management and enhanced data security for businesses large and small. Upload cut files via USB 3.0, LAN, Serial Port, or Wireless Network Card.
The industry-standard fiber cutting software simplifies complex sheet cutting tasks with in-depth design tools, integrating CAD, Nest, and CAM modules in one package. Complete drawing, editing, nesting, and workpiece framing in only a few clicks.
Create various gas assist presets that activate automatically or manually control the type of gas, flow, and pressure independently. The actual air/gas pressure output is displayed on the control panel in real time. FC-105SA additionally provides an automatic lubrication system.
Multiple debris zones funnel below the workbed to collect scrap and dust, channeling metal waste into a rolling cleanup tray.
Your purchase includes an OMTech OEM PRO-Series Water Chiller specially designed to water-cool industrial fiber laser systems
Your purchase includes an SG-40 Electric Transformer and TNS-30 Automatic Voltage Regulator to ensure a consistent supply of electricity to the fiber power source. The included centrifugal dust blower removes up to 2356 m³/h.
Design, final assembly, and quality control completed in USA with 2-Year Bumper to Bumper Limited Warranty.
All purchases include lifetime product technical support with an OMTech Laser Specialists based in Anaheim, California.
Your purchase includes onsite installation and training service led by OMTech US based Expert Technician. Your team will learn all basic aspects of fiber laser safety, machine setup, maintenance, software, and (time permitting) your specific cut job configuration.
-
Working Area
3000 × 1500 mm
-
Positioning Accuracy (X/Y)
±0.05 mm/m
-
Repeated Positioning Accuracy (X/Y)
±0.02 mm
-
Max Speed
2166 mm/s
-
Z-Axis Travel
220 mm
-
Max Acceleration
1 G
-
Work Table Max Load
700 kg
-
Metal Safety Cover
YES
-
Shuffle Table
Dual Shuffle Platform (25 s)
-
Machine Size
8300 × 2270 × 2260 mm
-
Machine Net Weight
6500 kg
-
Machine Packaging Dimensions
Main Bed + Base: 5450 × 2300 × 2340 mm. Switch Bed + Base: 3620 x 2300 x 2100 mm
-
Power Protection Level
IP54
-
Laser Power
1500 - 6000 W
-
Power Parameters
3-Phase AC380V 50 Hz/60 Hz
-
Product Weight
Main Bed + Base: 5000 kg. Switch Bed + Base: 3000 kg
-
Display
YES
-
WIFI Wireless Control
YES
-
Power Protection Level
IP54
-
Camera Monitoring System
YES
-
Laser Head Anti-Collision
YES
-
Anti-Collision Mapping Sensor
YES
-
Lightning Piercing
NO
-
Auxiliary Gas Low Pressure Alarm
Optional
-
Automatic Gas Cutting Pressure Regulation
YES (Oxygen included, Nitrogen Optional)
-
Door Safety Protection
YES
-
Laser Source Operational Alarm
YES
-
Countertop Lock
YES
-
Zone Based Dust Removal System
YES
-
Automatic Lubrication System
YES
-
30 mm Circular Cut Accuracy
≤0.1 mm
-
30 mm Adjacent Cut Accuracy
≤0.1 mm
-
200 mm Adjacent Cut Accuracy
≤0.1 mm
-
200 mm Diagonal Cut Accuracy
≤0.1 mm
You Choose The Power of The Laser
Laser power can vary from 1 to 6 kW depending on the thickness and quality of the material to be cut. Ask the sales office for more information to choose the right power for your needs.

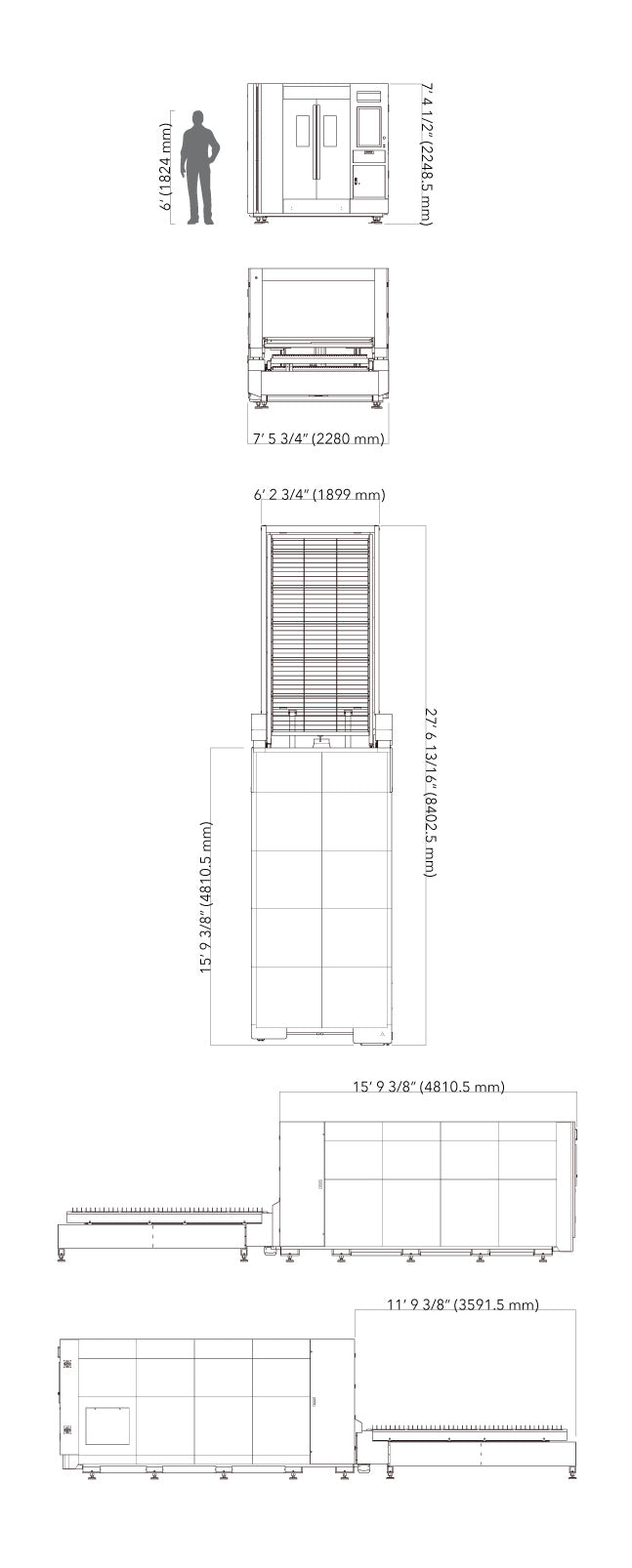

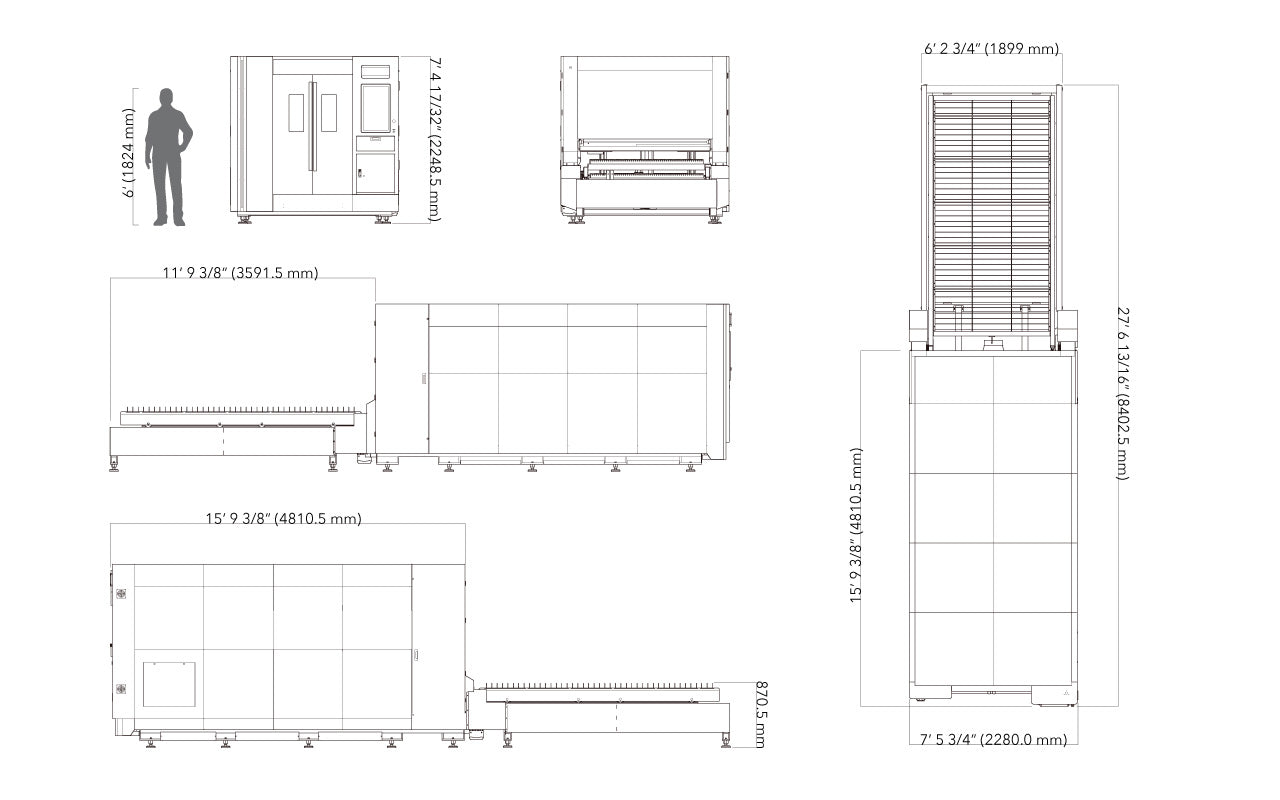

Dimensions
Warranty 30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your OMTech Fiber Cutter purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new OMTech machine that we do, which is why every Fiber Cutter Machine purchase includes our Hassle-Free OMTech 30-Day Return option in order to fully experience and evaluate their new OMTech machine.
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the OMTech FC Series of products will perform according to the warranty policy stated above from date of invoice.
Frequently Asked Questions About the OMTech FC-105SA
The FC-105SA is built for high-duty commercial environments:

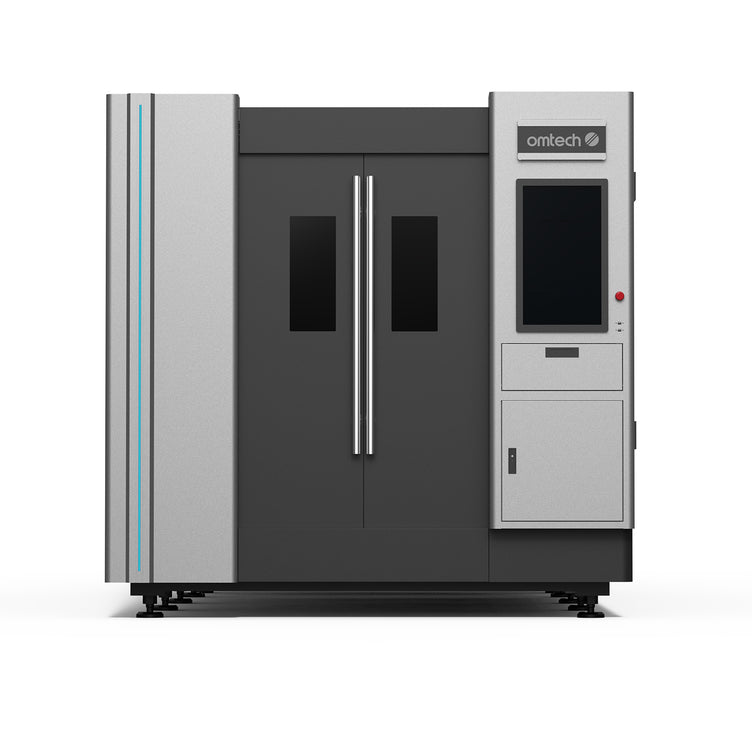

- Class 1 Enclosure: Protective laser viewing glass and door interlock safety sensors contain Class 4 radiation inside the chamber.
- Camera Monitoring System: Internal HD cameras stream real-time cutting progress directly to the 17" swing-arm monitor, allowing safe visual monitoring without opening the doors.
- Zone-Based Exhaust: Activated damper zones focus suction directly underneath the active cutting head, channeling smoke and particulate out through the included 2356 m3/h centrifugal blower.
The FC-105SA is designed for sheet metal fabrication and can process carbon steel, stainless steel, aluminum, brass, copper, and other metals compatible with fiber laser cutting. With IPG power options from 1.5 kW to 6 kW, it can be configured for anything from lighter sheet metal work to more demanding production applications.
Actual cutting capacity depends on the selected laser power, material thickness, assist gas, and required edge quality.
Both machines are designed for large-format sheet metal cutting, but they serve different production environments.
The FC-105 is an open-bed system, providing direct access to the cutting table for material loading and handling.
The FC-105SA adds a fully enclosed cutting area and dual shuffle platform, allowing one table to be loaded or unloaded while the other is cutting. It also reaches a listed maximum movement speed of 2166 mm/s, compared with 1333 mm/s for the FC-105.
For shops prioritizing accessibility and a simpler workflow, the FC-105 may be sufficient. For higher-throughput production where table exchange and an enclosed cutting environment are important, the FC-105SA is the more production-oriented option.
The FC-105SA features a 25-second fast dual exchange platform. While the fiber laser actively cuts a 5' X 10' metal sheet inside the fully enclosed enclosure, operators safely unload finished parts and prepare the next sheet on the exterior bed. This continuous workflow eliminates loading downtime, increasing shop daily production output by up to 40% compared to single pull-out table models.

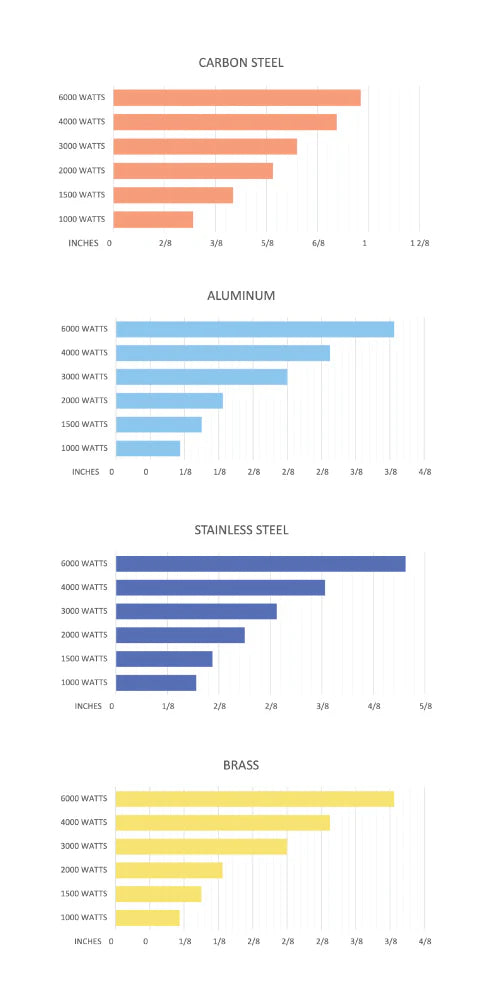

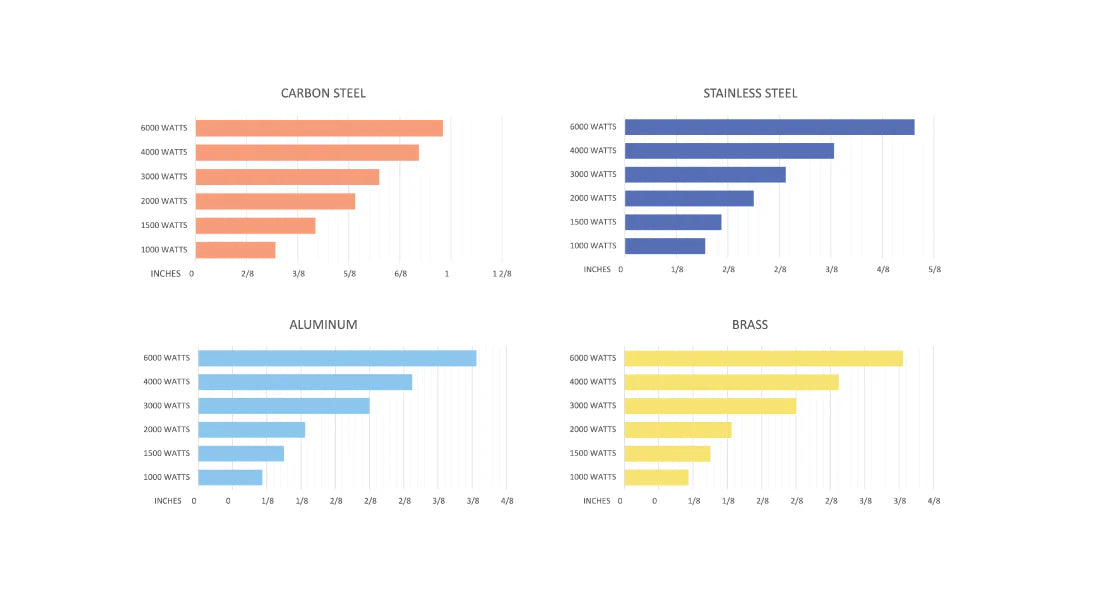

The FC-105SA features a 5' × 10' (3000 × 1500 mm) dual exchange table and offers IPG fiber laser power options from 1.5 kW to 6 kW. At the 6 kW configuration, it can cut carbon steel up to approximately 28 mm, stainless steel up to 16 mm, aluminum up to 14 mm, and brass or copper up to 10 mm.
Cutting capacity varies by laser power, material, and assist gas. Oxygen (O₂) is typically used for carbon steel, while nitrogen (N₂) is commonly used for stainless steel, brass, and copper. Aluminum can be processed with nitrogen or dry compressed air. Actual results may vary depending on material grade, gas purity, cutting parameters, and required edge quality.
