What’s the difference between RF and glass CO₂ laser tubes?

RF (Radio Frequency) CO₂ Laser Tube: Longer lifespan – typically lasts 4–10+ years, several times longer than glass tubes. Smaller spot size (0.07 mm) for sharper, cleaner engraving details. Faster response time , ideal for high-speed engraving and large production runs. More consistent output thanks to metal-sealed construction. Low maintenance – no water cooling, no frequent realignment. Excellent at low-power precision work , especially on wood, acrylic, leather, and coated materials. Glass CO₂ Laser Tube: Lower cost , great for beginners or hobby users. Shorter lifespan and faster power decay over time. Requires water cooling and more regular maintenance. Larger spot size, making fine engraving less sharp.

What’s the difference between the rotary attachments?

Rotary Axis Attachment (Standard Roller) – Basic Simple roller design for straight, non-tapered cylinders. Best for basic cups, tubes, and jars. 4-Wheel Rotary Axis – Intermediate Four-wheel support for smoother rotation and better stability. Ideal for cups, bottles, and tumblers of various sizes. Rotary Axis with Jaw Chuck – Advanced Precision clamping system that locks objects firmly in place. Handles small, irregular, or uniquely shaped items with maximum accuracy.

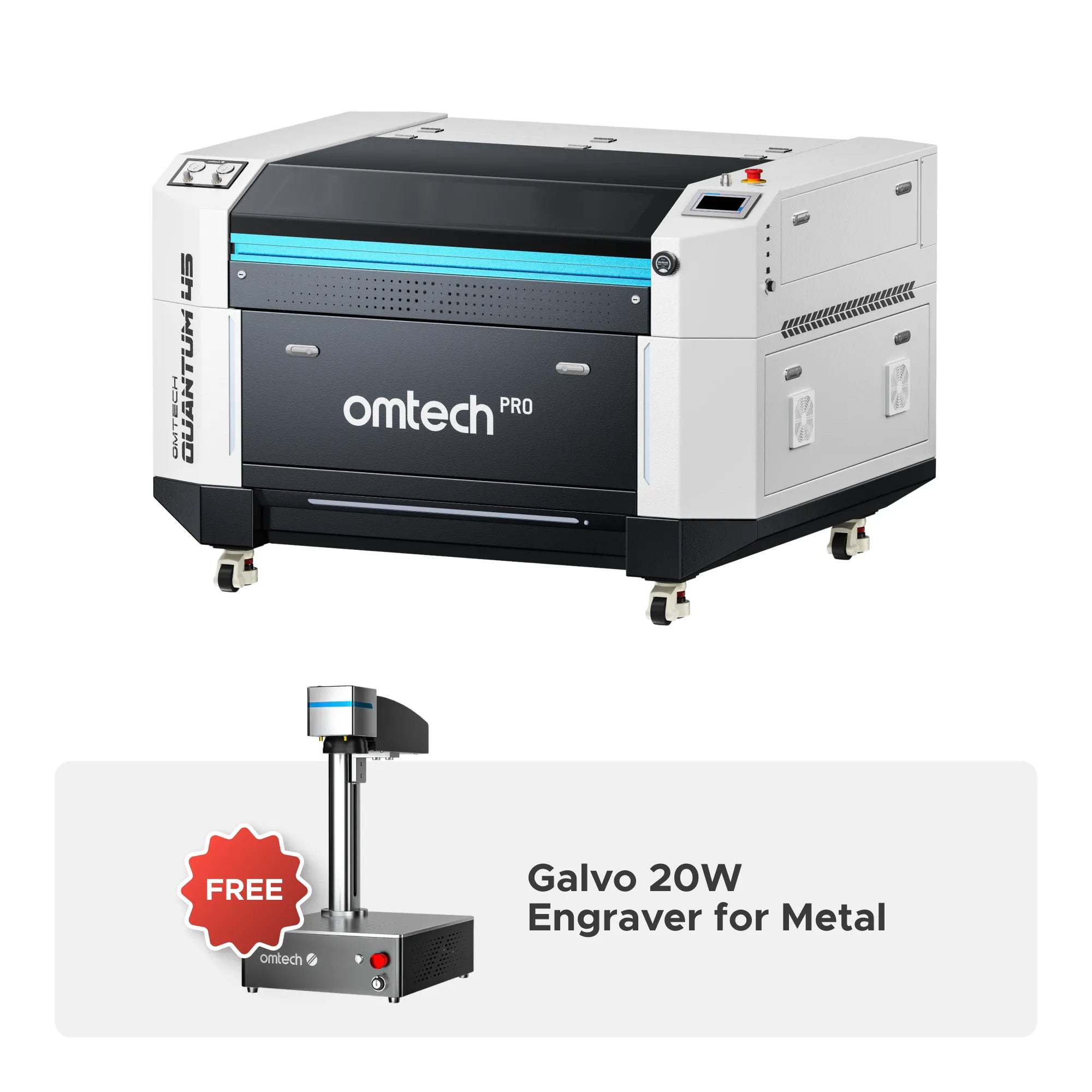

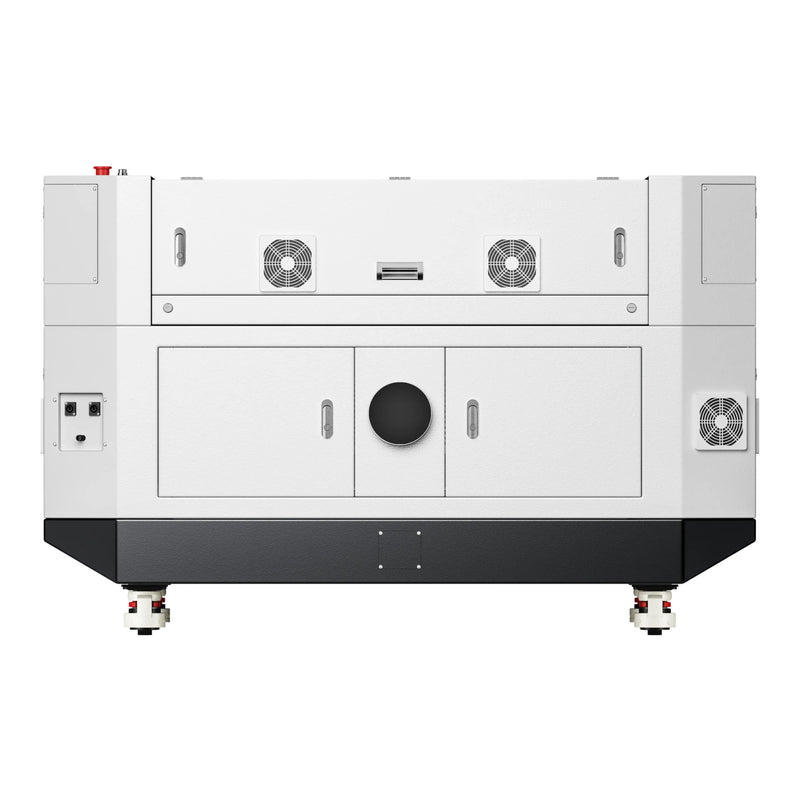

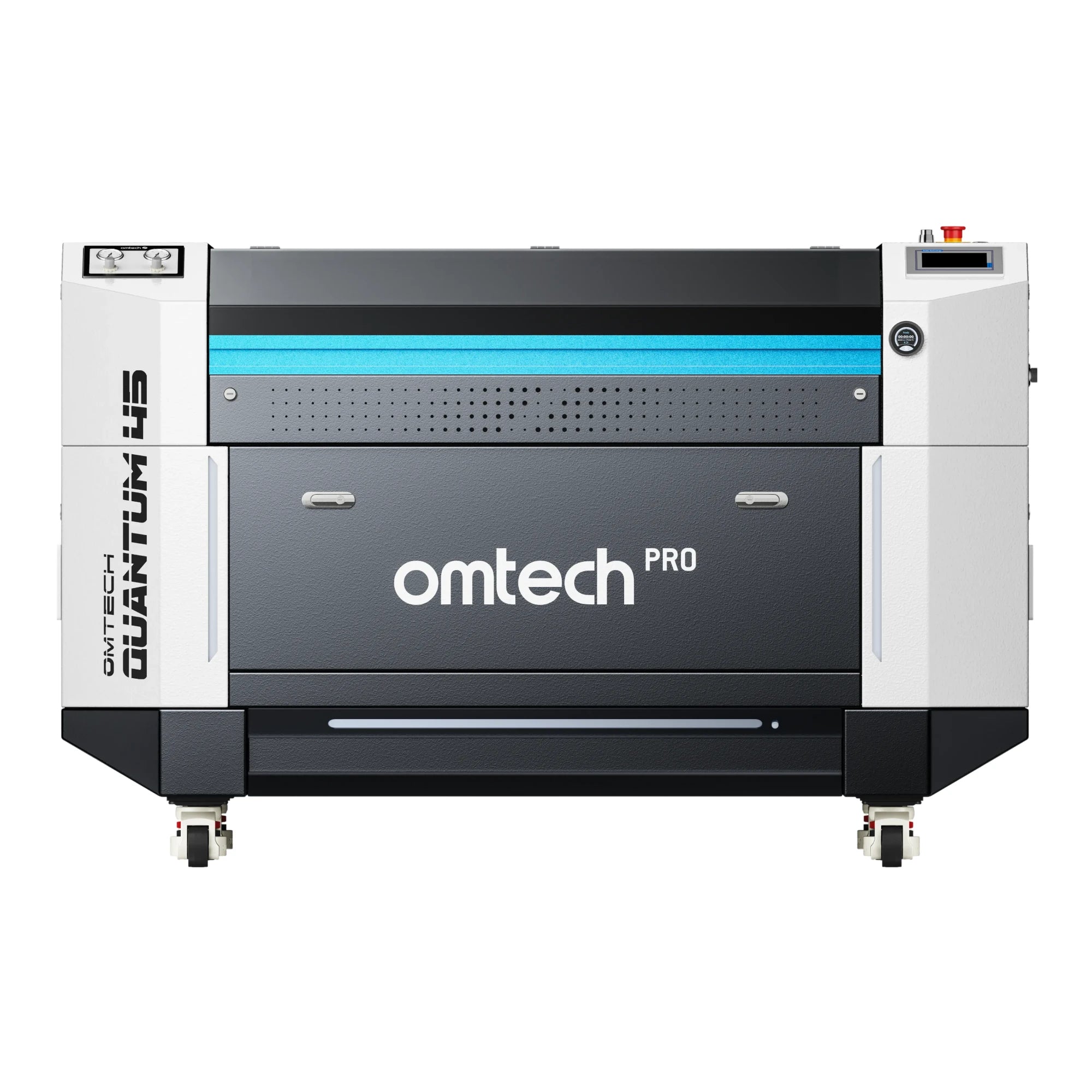

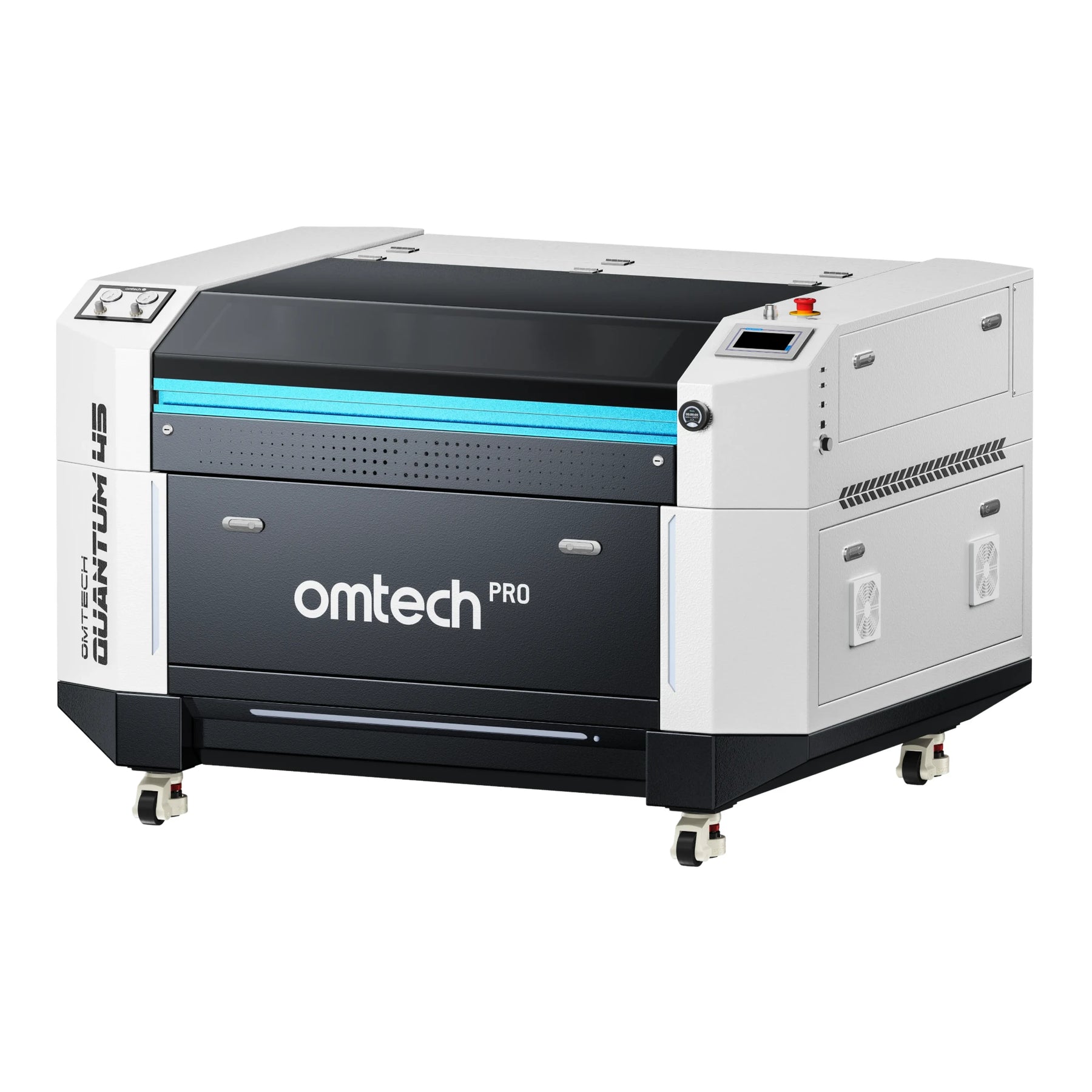

OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter

Name: OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter
Brand: OMTech
SKU: USB-RF40-US&FMM-R2MN-U1&USB-LIBU-01-[gslily]1+1+1
Price: 13599.99 USD
Availability: InStock

OMTech 20W Fiber Laser Marker Engraving Machine

Price Save $10,400

Safety Warning:

For safety reasons, do not leave the machine unattended during operation.

View MoreView Less

Get Two Free Virtual Technical Support Session When You Buy This Machine.
The OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter is engineered for production environments demanding speed and precision. At 4200 mm/s, this system halves processing time versus conventional models, allowing you to scale output and meet aggressive timelines. RF tube technology delivers a 0.07 mm spot size for intricate detail work while providing superior durability and longevity compared to glass alternatives. Dual connectivity—Wi-Fi and USB—integrates seamlessly with dedicated software, offering real-time monitoring and on-the-fly parameter adjustments via LED display. The fully enclosed cabinet design meets industrial safety standards while maintaining the robust performance required for high-throughput commercial applications.

View MoreView Less

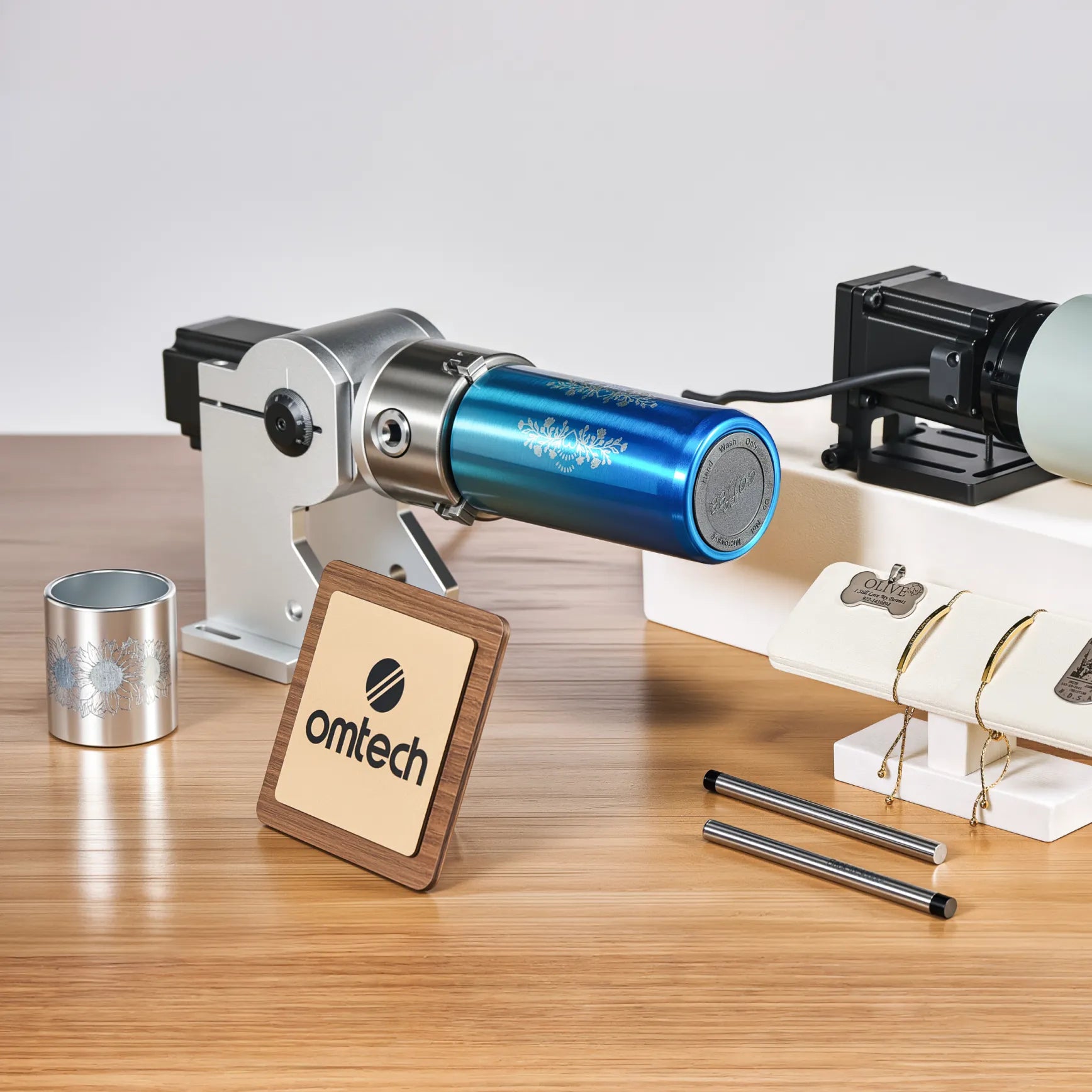

BUY ANY VARIANT, GET ONE FREE 20W GALVO FIBER LASER + FREE LIGHTBURN

Quantum 60W RF [ Estimated Shipping by Mid February ]

Quantum 60W RF with Rotary Axis Attachment

Quantum 60W RF with 4-WHEEL ROTARY AXIS

Quantum 60W RF with Rotary Axis with Jaw Chuck

Frequently Bought Together

OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter

Shipping calculated at checkout.

[{"id":52895685312876,"title":"Quantum 60W RF [ Estimated Shipping by Mid February ]","option1":"Quantum 60W RF [ Estimated Shipping by Mid February ]","option2":null,"option3":null,"sku":"USB-RF40-US\u0026FMM-R2MN-U1\u0026USB-LIBU-01-[gslily]1+1+1","requires_shipping":true,"taxable":true,"featured_image":{"id":61570621833580,"product_id":14954278388076,"position":1,"created_at":"2025-12-02T01:32:05-08:00","updated_at":"2025-12-02T01:32:37-08:00","alt":null,"width":2000,"height":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957","variant_ids":[52895685312876,52981308064108,52981308096876,52981308129644]},"available":true,"name":"OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter - Quantum 60W RF [ Estimated Shipping by Mid February ]","public_title":"Quantum 60W RF [ Estimated Shipping by Mid February ]","options":["Quantum 60W RF [ Estimated Shipping by Mid February ]"],"price":1359999,"weight":0,"compare_at_price":2399999,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53049832145260,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52981308064108,"title":"Quantum 60W RF with Rotary Axis Attachment","option1":"Quantum 60W RF with Rotary Axis Attachment","option2":null,"option3":null,"sku":"USB-RF40-US\u0026FMM-R2MN-U1\u0026USB-LIBU-01\u0026LRA-0730-00-[gslily]1+1+1+1","requires_shipping":true,"taxable":true,"featured_image":{"id":61570621833580,"product_id":14954278388076,"position":1,"created_at":"2025-12-02T01:32:05-08:00","updated_at":"2025-12-02T01:32:37-08:00","alt":null,"width":2000,"height":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957","variant_ids":[52895685312876,52981308064108,52981308096876,52981308129644]},"available":true,"name":"OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter - Quantum 60W RF with Rotary Axis Attachment","public_title":"Quantum 60W RF with Rotary Axis Attachment","options":["Quantum 60W RF with Rotary Axis Attachment"],"price":1372999,"weight":0,"compare_at_price":2419999,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53049832145260,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52981308096876,"title":"Quantum 60W RF with 4-WHEEL ROTARY AXIS","option1":"Quantum 60W RF with 4-WHEEL ROTARY AXIS","option2":null,"option3":null,"sku":"USB-RF40-US\u0026USB-LIBU-01\u0026FMM-R2MN-U1\u0026LRA-GL49-01-[gslily]1+1+1+1","requires_shipping":true,"taxable":true,"featured_image":{"id":61570621833580,"product_id":14954278388076,"position":1,"created_at":"2025-12-02T01:32:05-08:00","updated_at":"2025-12-02T01:32:37-08:00","alt":null,"width":2000,"height":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957","variant_ids":[52895685312876,52981308064108,52981308096876,52981308129644]},"available":true,"name":"OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter - Quantum 60W RF with 4-WHEEL ROTARY AXIS","public_title":"Quantum 60W RF with 4-WHEEL ROTARY AXIS","options":["Quantum 60W RF with 4-WHEEL ROTARY AXIS"],"price":1386999,"weight":0,"compare_at_price":2439999,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53049832145260,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52981308129644,"title":"Quantum 60W RF with Rotary Axis with Jaw Chuck","option1":"Quantum 60W RF with Rotary Axis with Jaw Chuck","option2":null,"option3":null,"sku":"USB-RF40-US\u0026USB-LIBU-01\u0026FMM-R2MN-U1\u0026LRA-KP58-00-[gslily]1+1+1+1","requires_shipping":true,"taxable":true,"featured_image":{"id":61570621833580,"product_id":14954278388076,"position":1,"created_at":"2025-12-02T01:32:05-08:00","updated_at":"2025-12-02T01:32:37-08:00","alt":null,"width":2000,"height":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957","variant_ids":[52895685312876,52981308064108,52981308096876,52981308129644]},"available":true,"name":"OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter - Quantum 60W RF with Rotary Axis with Jaw Chuck","public_title":"Quantum 60W RF with Rotary Axis with Jaw Chuck","options":["Quantum 60W RF with Rotary Axis with Jaw Chuck"],"price":1388999,"weight":0,"compare_at_price":2441999,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":53049832145260,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/omtech.com\/cdn\/shop\/files\/45_1x_d8d68c3c-ac13-4b81-849c-52825dde89ab.webp?v=1764667957"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Safe & Secure Checkout

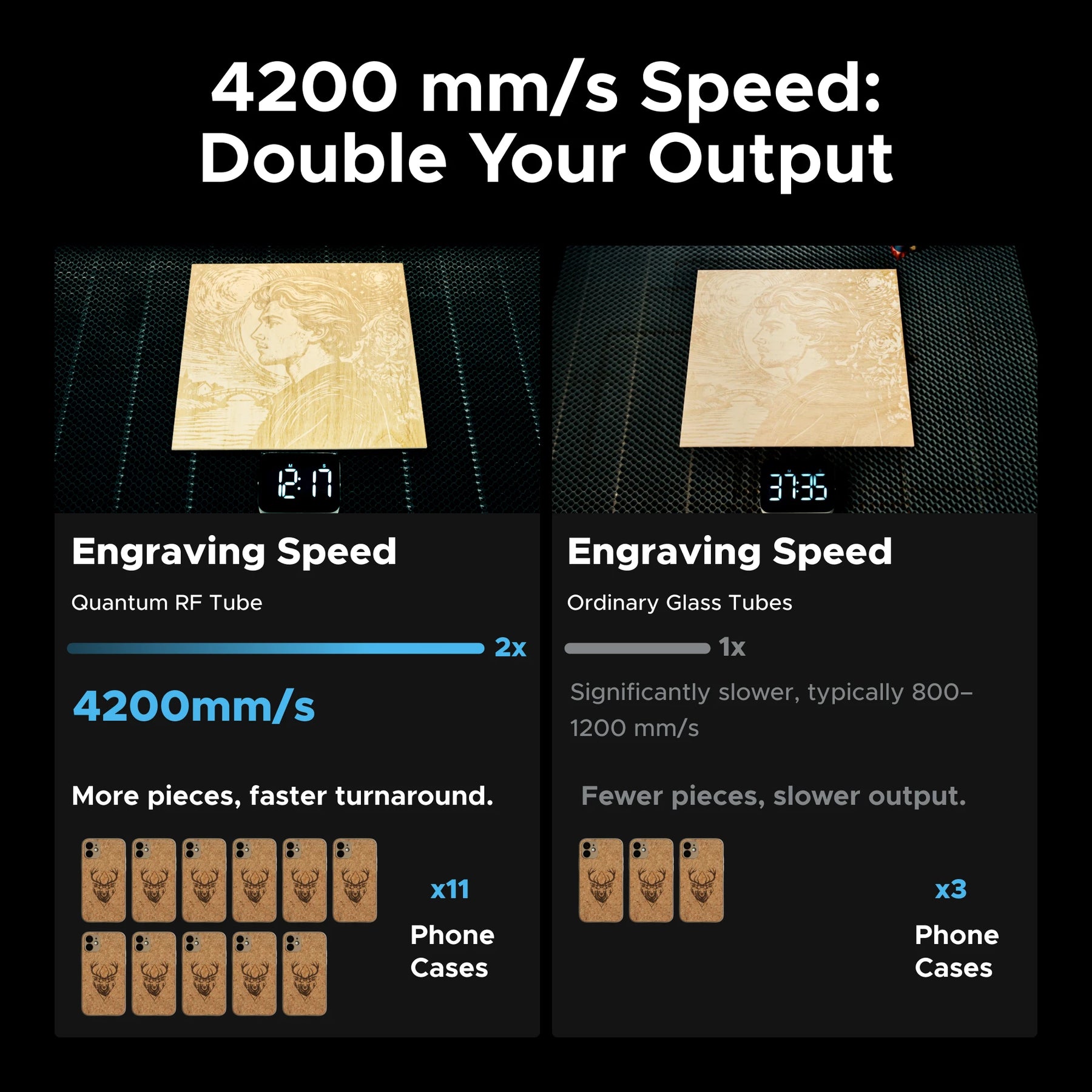

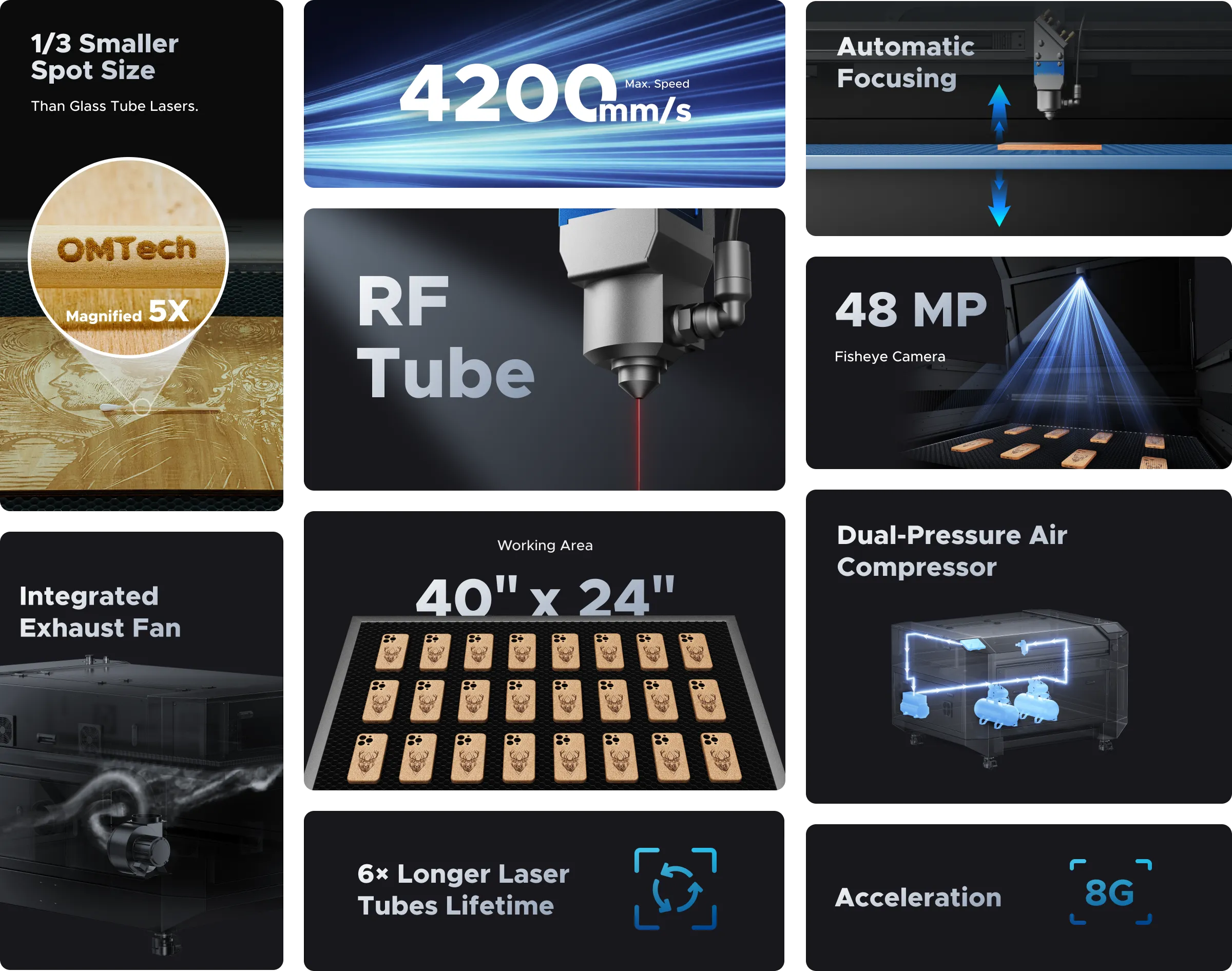

With Quantum, You Will Completely Upgrade Your Production:

Our industry-leading RF technology, combined with 8G acceleration, autofocus, and a replaceable laser tube, delivers a staggering 50% boost in engraving speed over the previous model.

Engraving Speed

Quantum RF Tube 4200mm/s

More pieces, faster turnaround.

11 pieces

Phone Cases

10 pieces

Leather Wallets

5 pieces

Wooden Signs

Engraving Speed

Ordinary Glass Tubes Significantly slower, typically 800–1200 mm/s

Fewer pieces, slower output.

3 pieces

Phone Cases

4 pieces

Leather Wallets

1 piece

Wooden Signs

Note: Tested against the Pronto 40 (V690, 90W). Each sample project used its fastest practical settings—for example, the Quantum model can reach 4200 mm/s, but the Phone Case project was run at 3000 mm/s to reduce time lost during frequent acceleration and deceleration.

Quantum RF Tube

Ordinary Glass Tubes

Engraving Speed

Quantum RF Tube 4200mm/s

Ordinary Glass Tubes Significantly slower, typically 800–1200 mm/s

More pieces, faster turnaround.

Quantum RF Tube: 11 pieces

Phone Cases

Fewer pieces, slower output.

Ordinary Glass Tubes: 3 pieces

Phone Cases

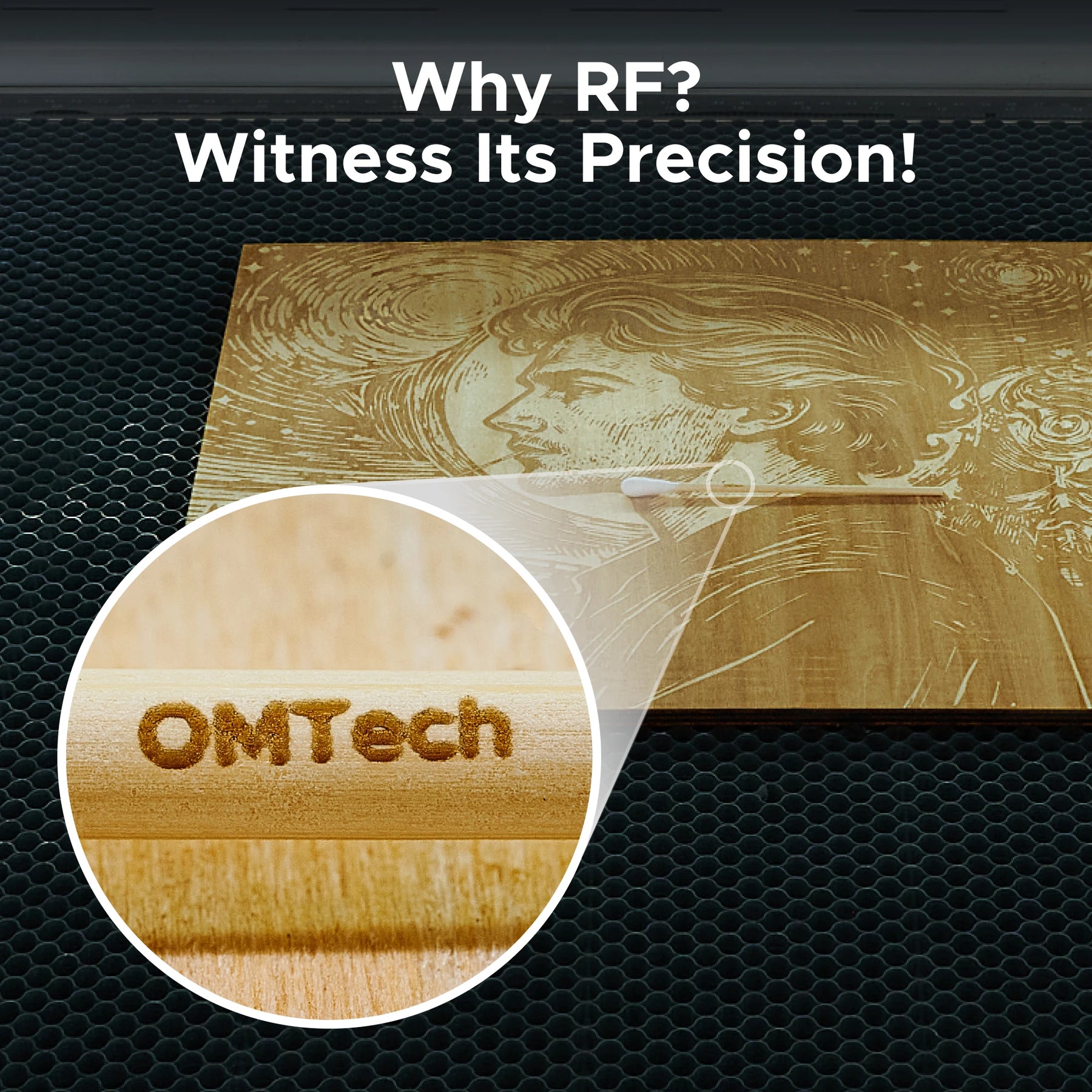

More Refined Production

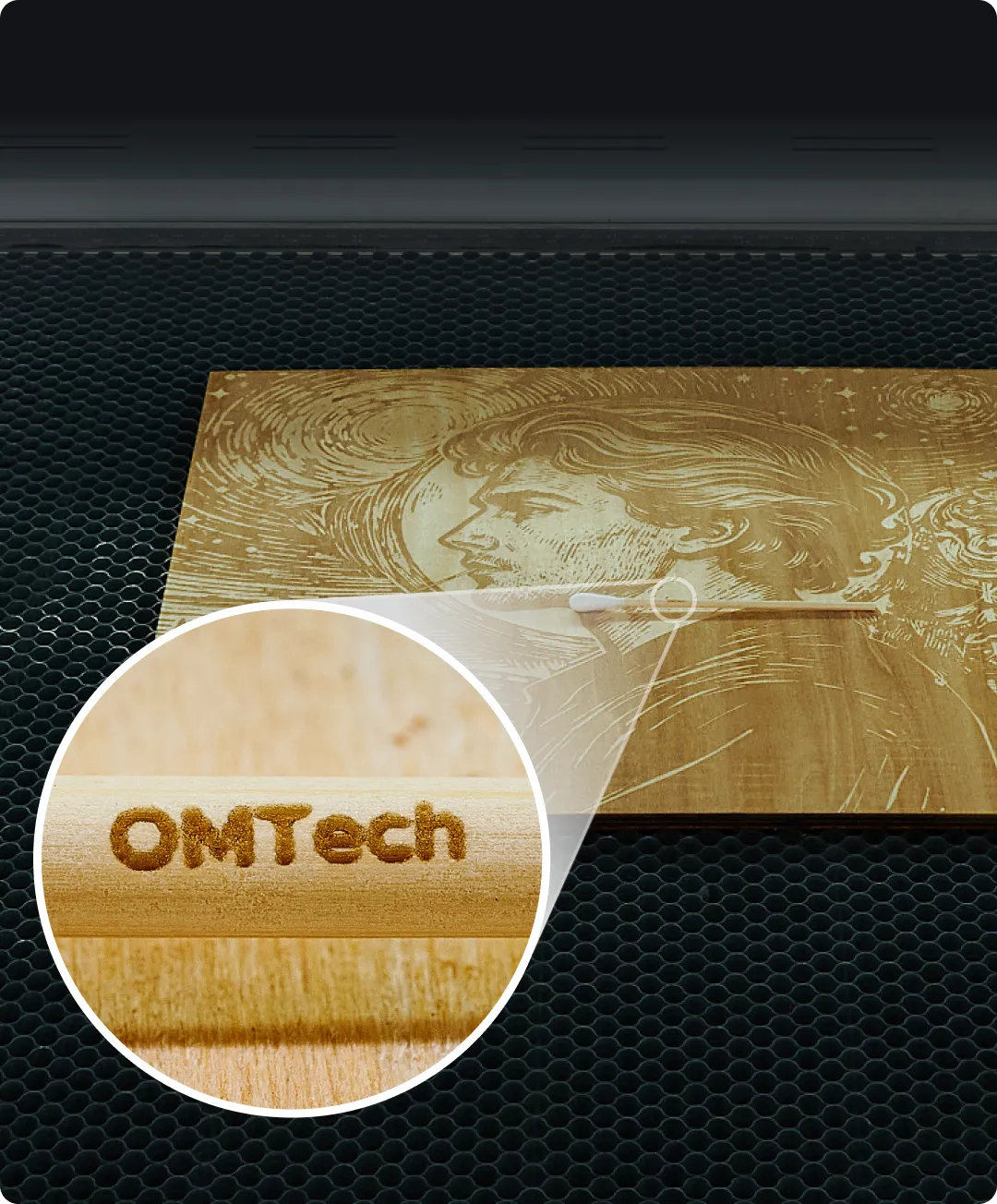

With a 0.07mm smallest spot size, even 0.4mm characters remain clear during high-speed engraving, ensuring fine details.

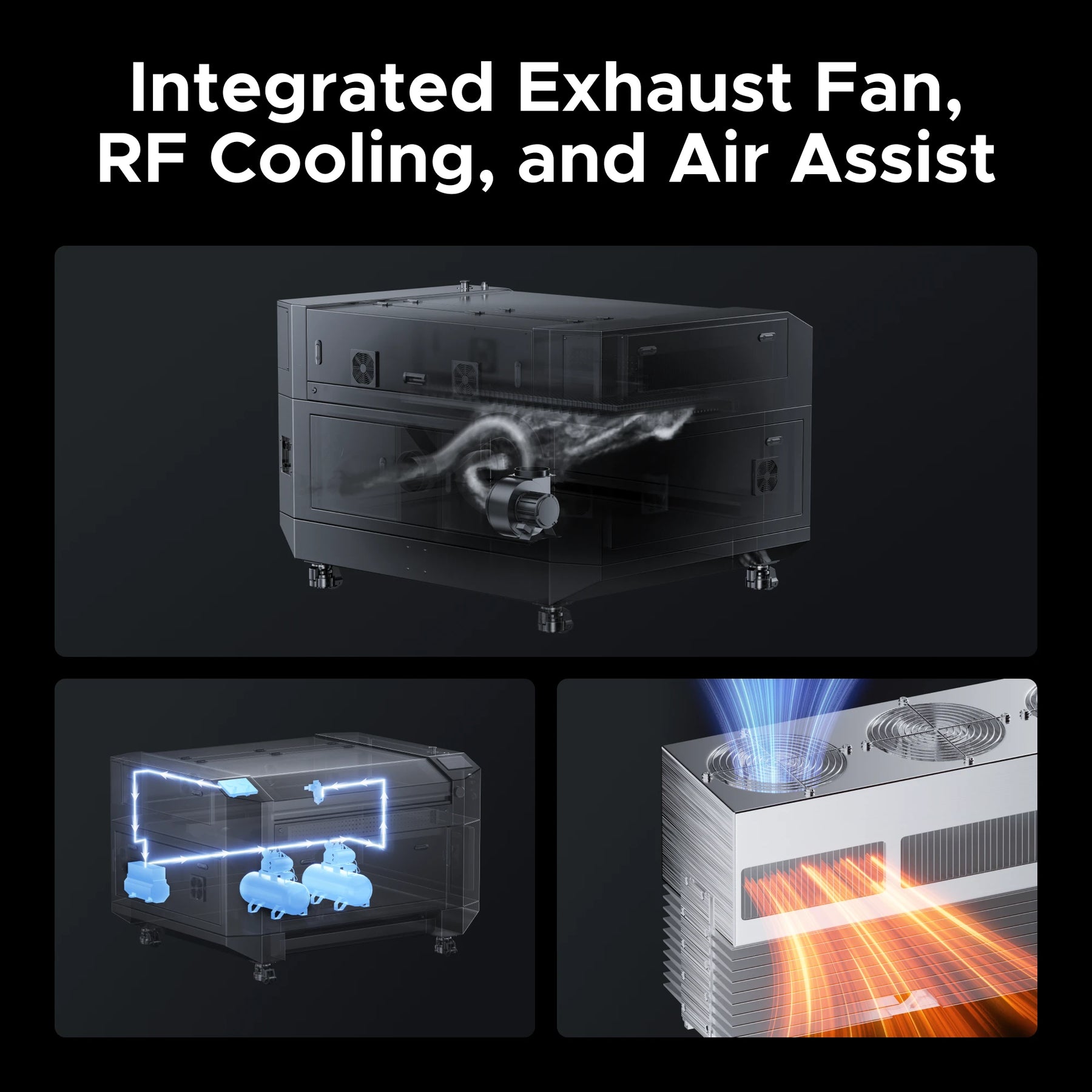

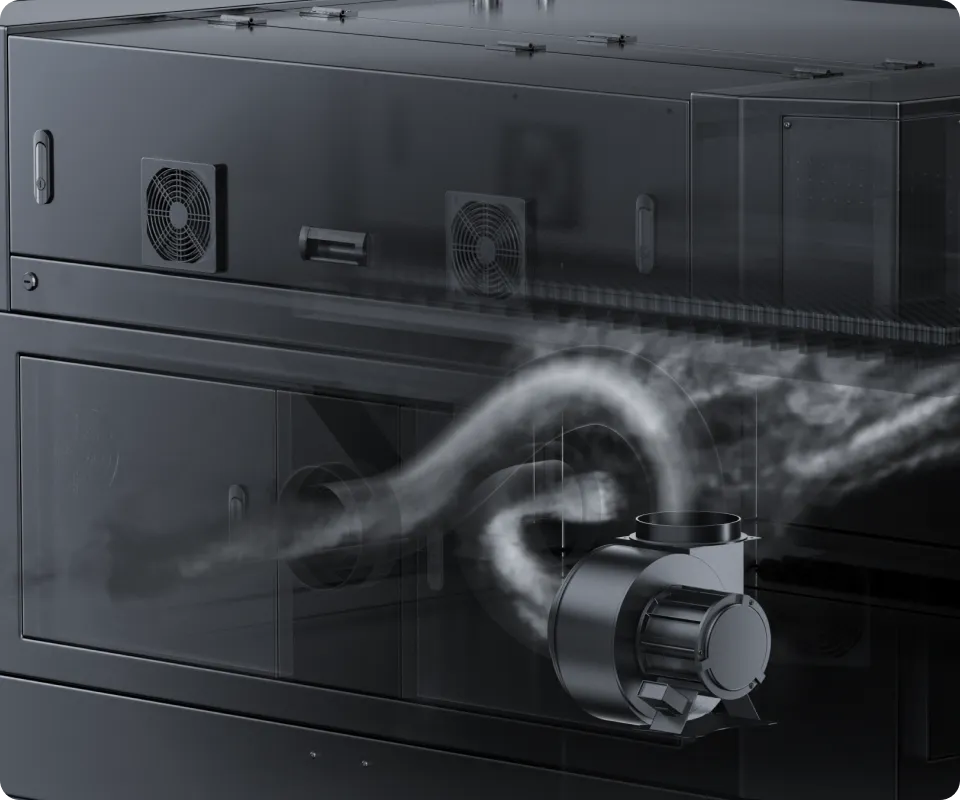

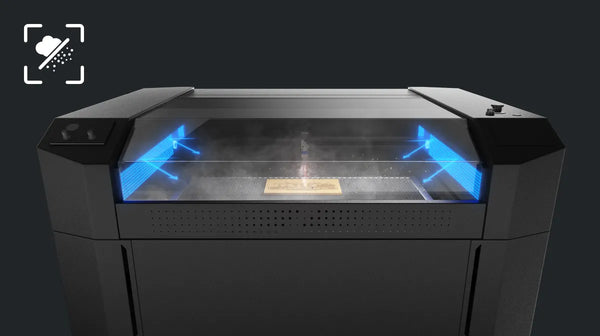

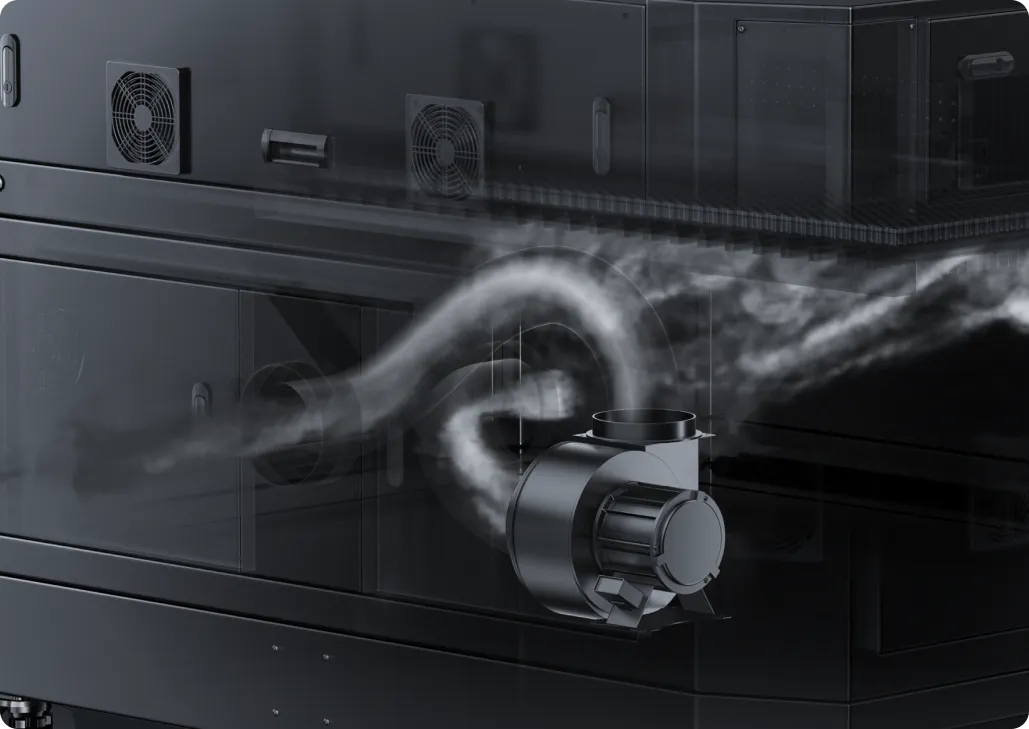

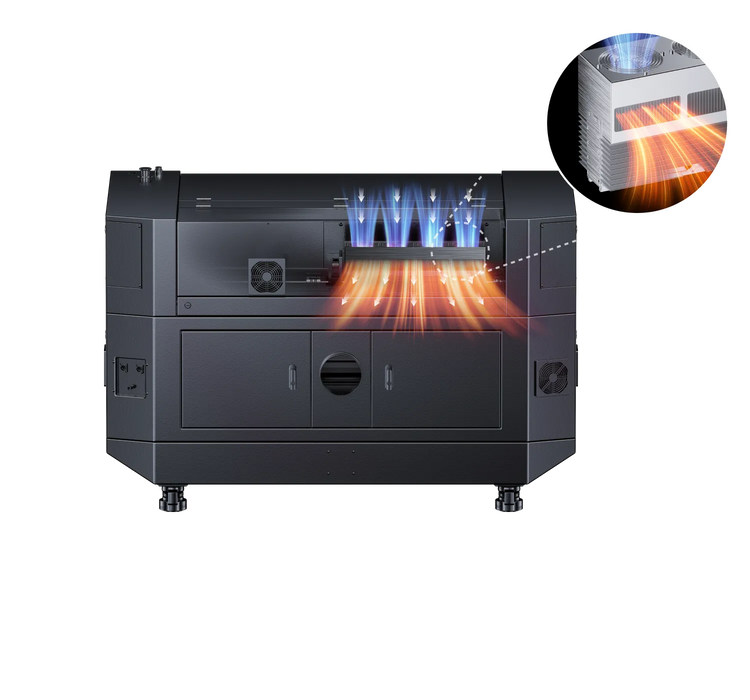

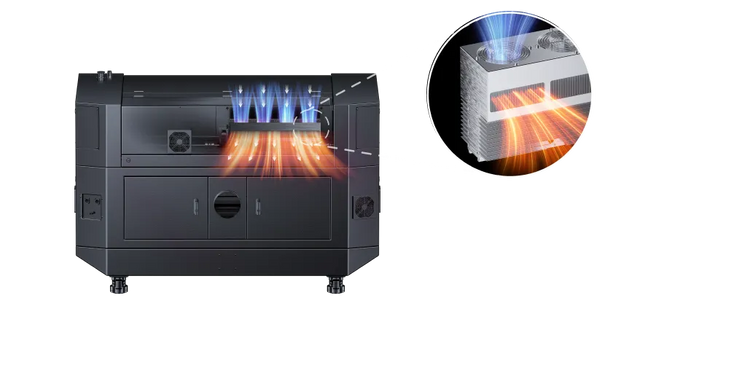

Efficient Dust Extraction Fan

Integrated with a 660 m³/h efficient dust extraction fan, effectively removing smoke and cooling the system, while the RF tube comes with built-in air cooling, enhancing performance and extending the system's lifespan.

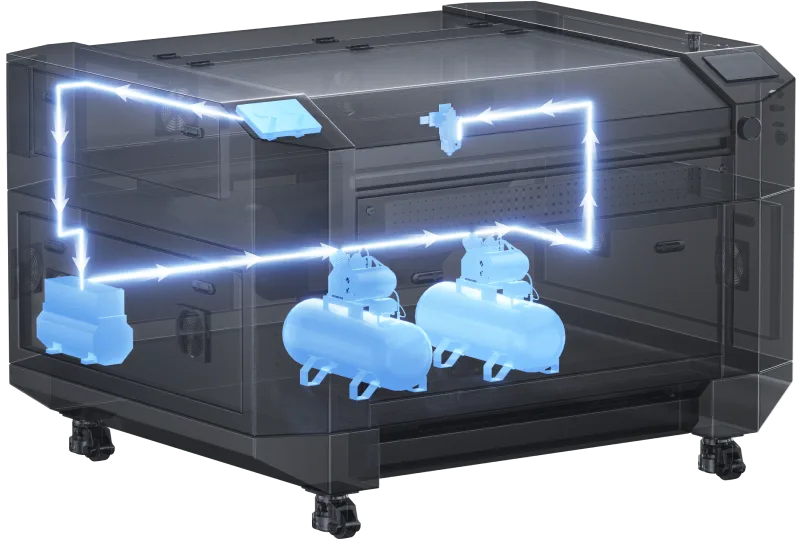

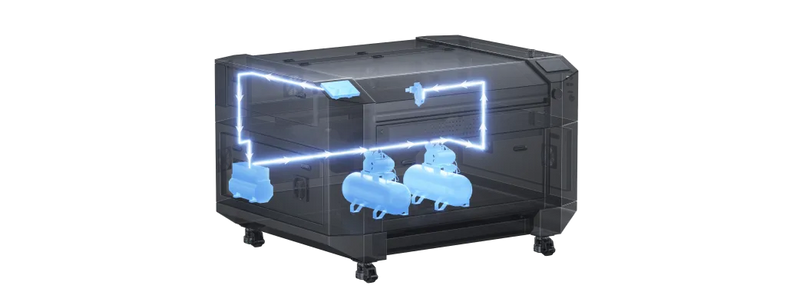

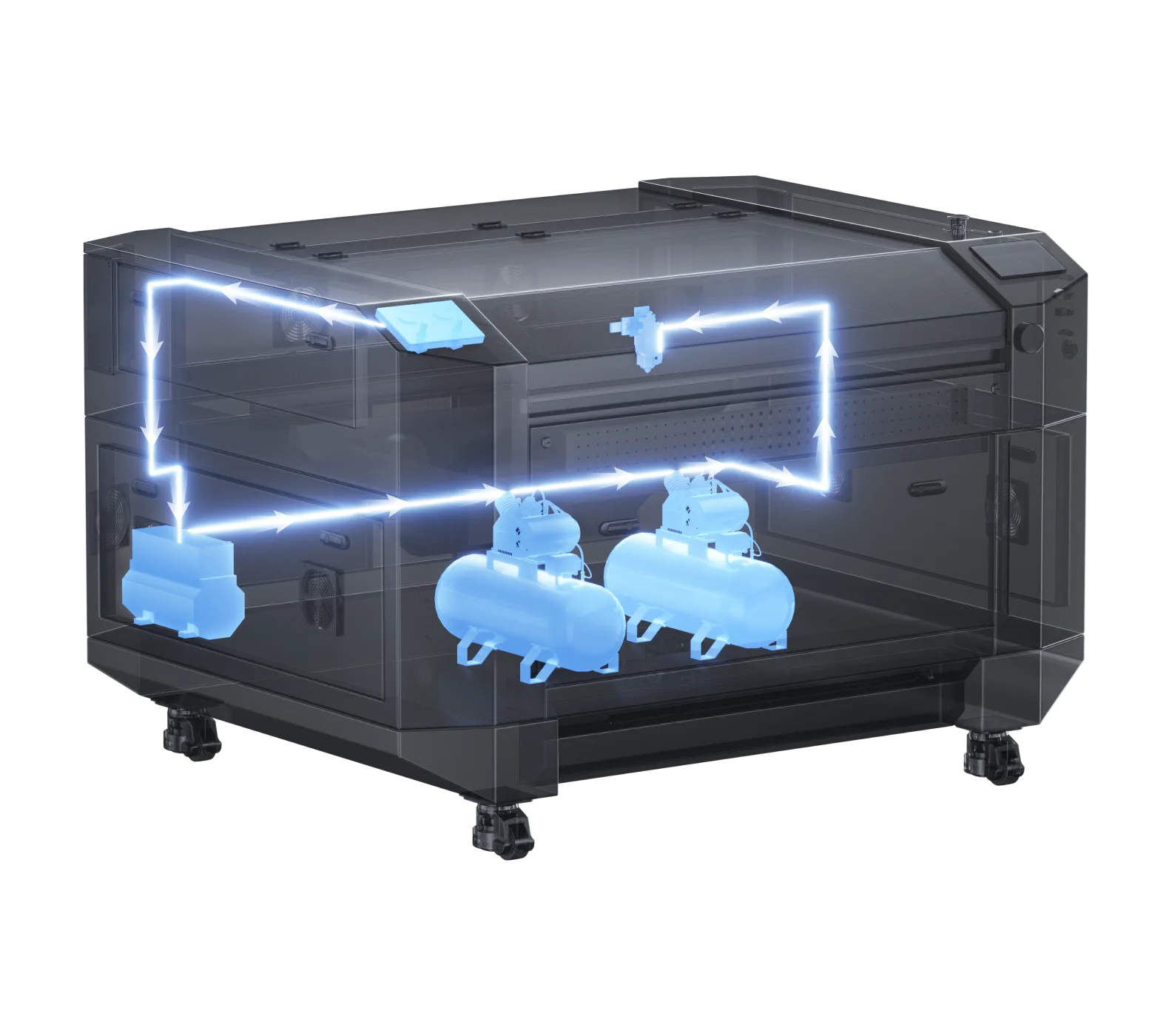

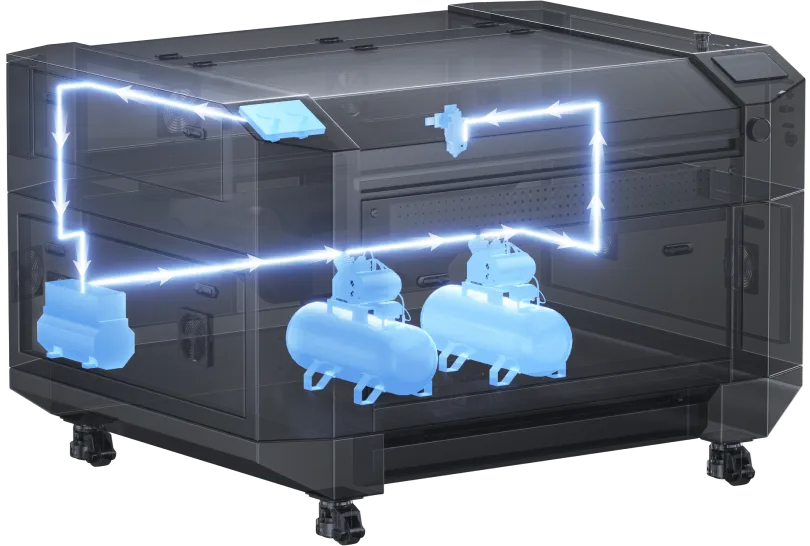

Built-in Dual Pressure Air Compressor

The 30L compressor automatically adjusts air pressure for engraving and cutting. Wood cuts up to 22mm, and acrylic cuts up to 24mm, ensuring optimal cutting performance and depth.

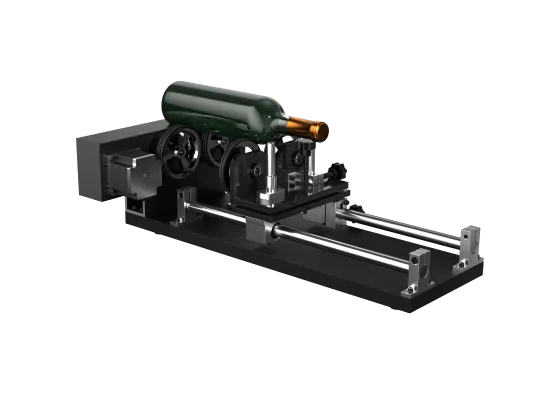

Rotary Axis

Three rotary axis options available, enabling multi-angle engraving and meeting a wider range of processing needs.

Making Every Step Easy, Quantum Brings You:

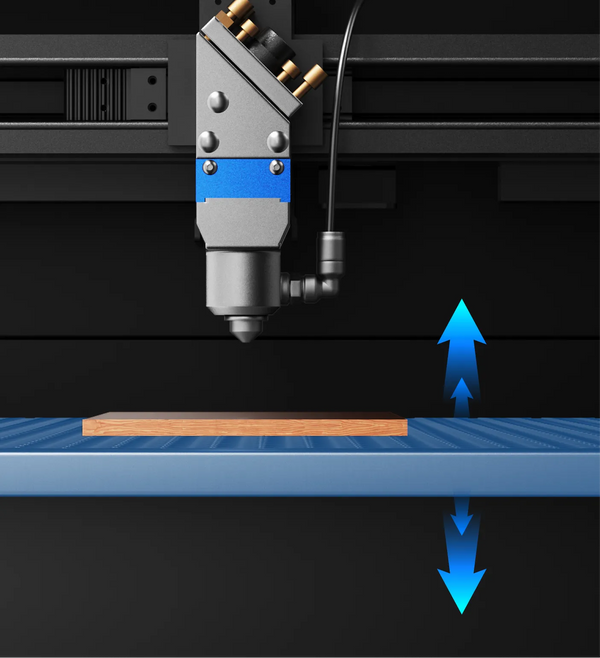

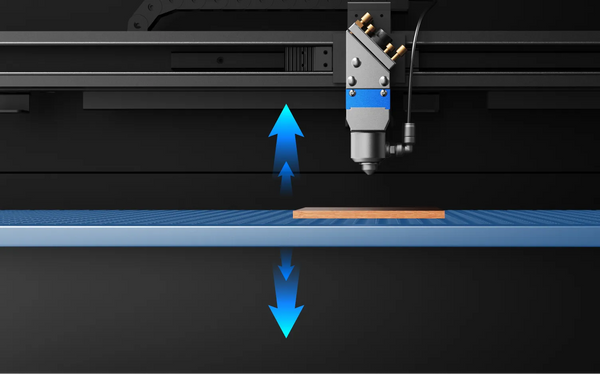

Auto-Focus Function

The auto-focus function simplifies operation, eliminating the need for manual adjustments, ensuring precise engraving and cutting every time.

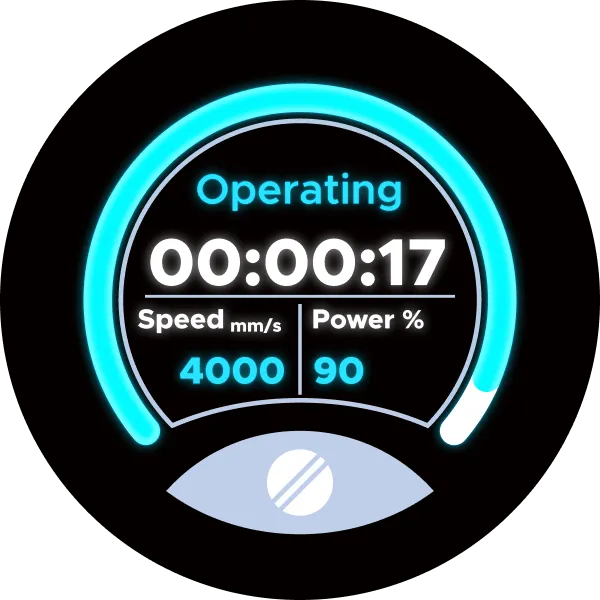

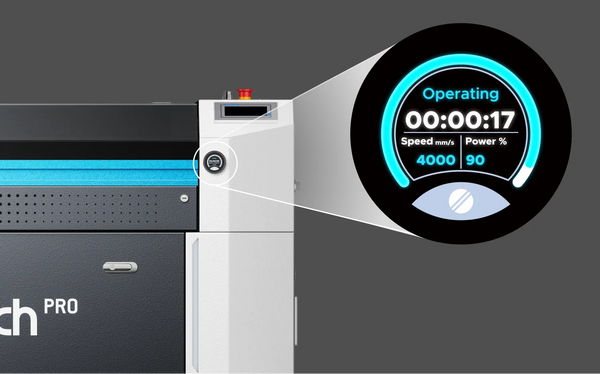

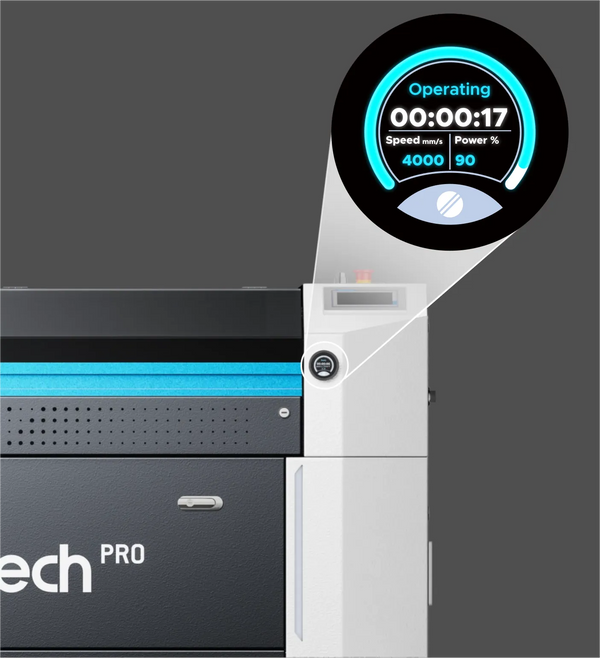

LED Real-Time Display

The real-time LED display shows device status and operational information, providing users with clear and intuitive feedback for easy monitoring of work progress.

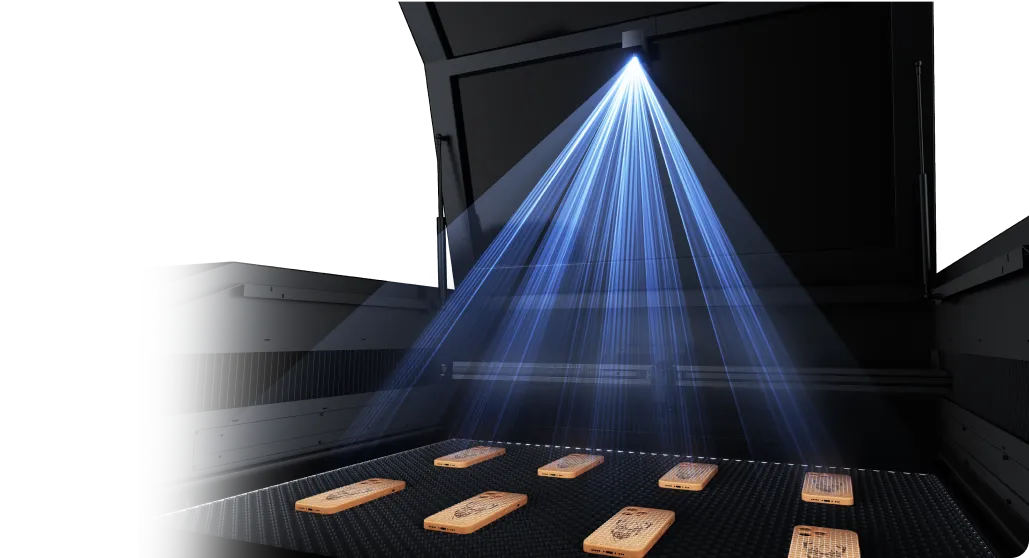

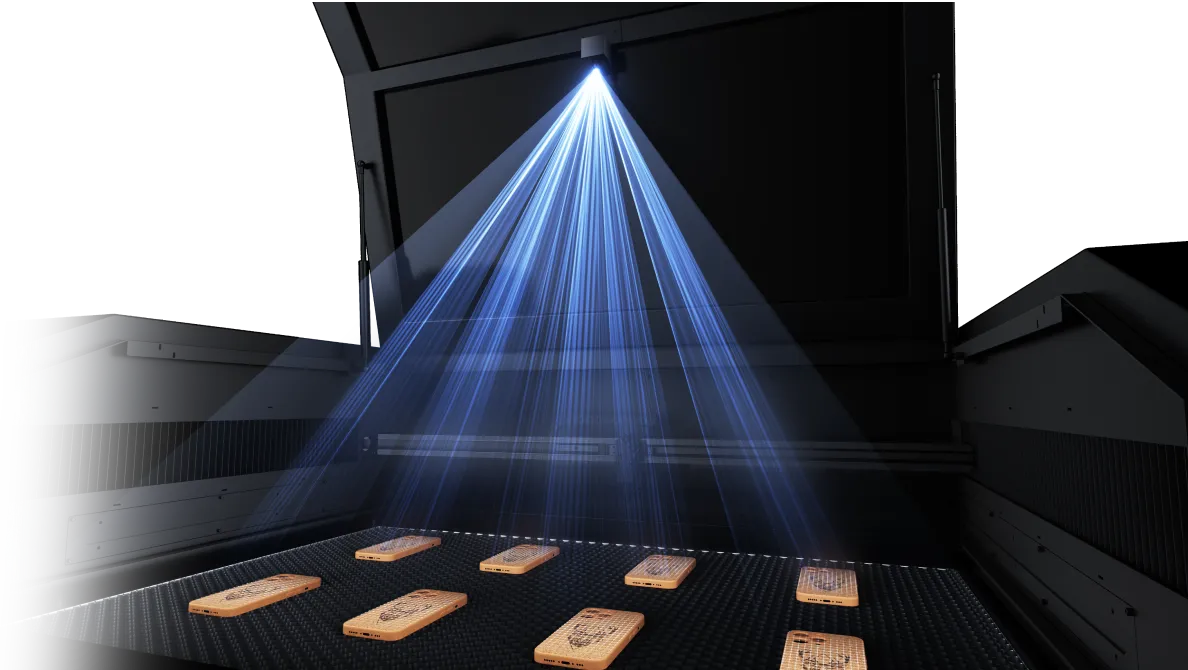

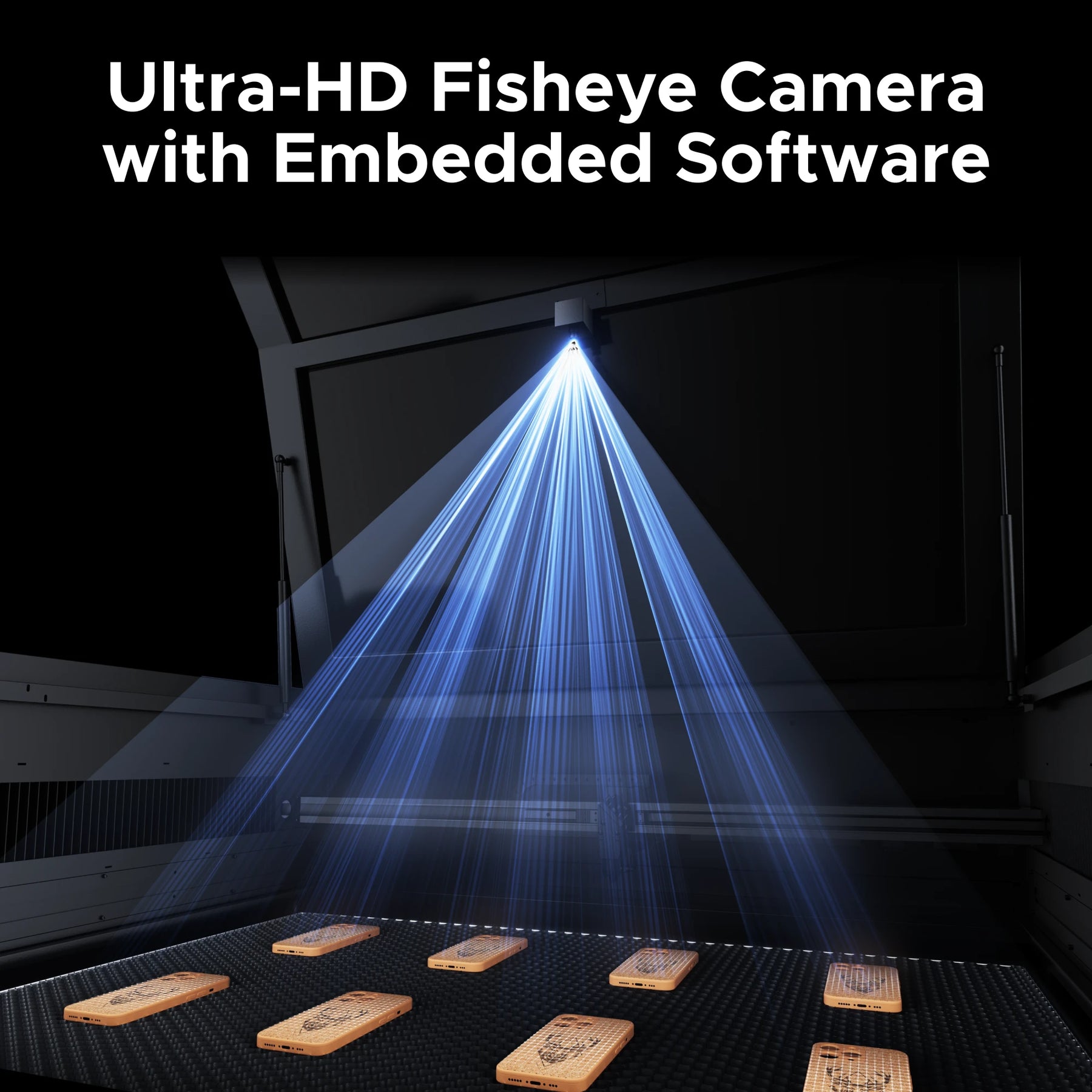

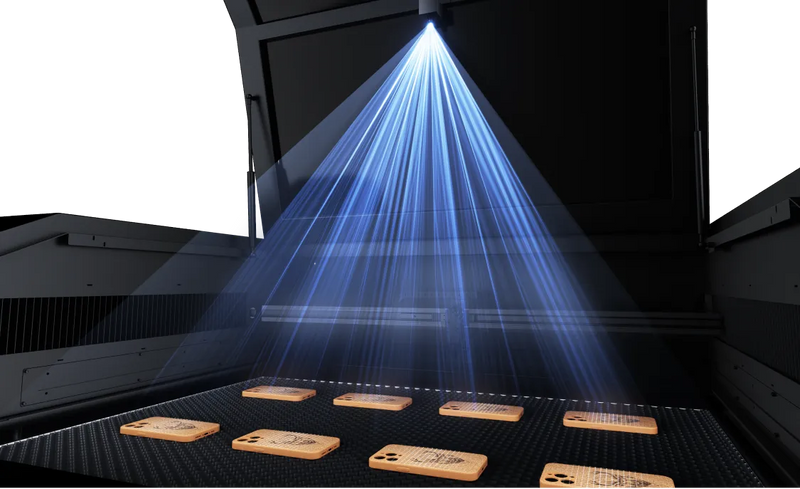

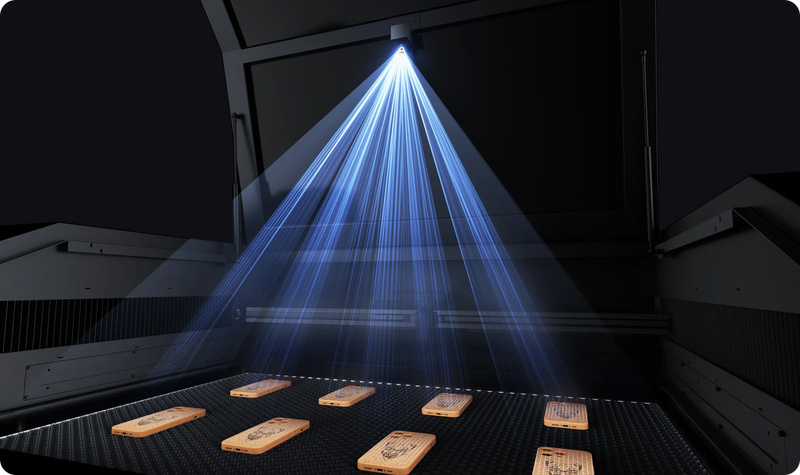

Ultra-HD Fisheye Lens

Equipped with a 48MP ultra-HD fisheye camera, providing a wide-angle view, and using built-in software for 100% distortion-free coverage of the work area, enhancing processing efficiency, precision, and convenience.

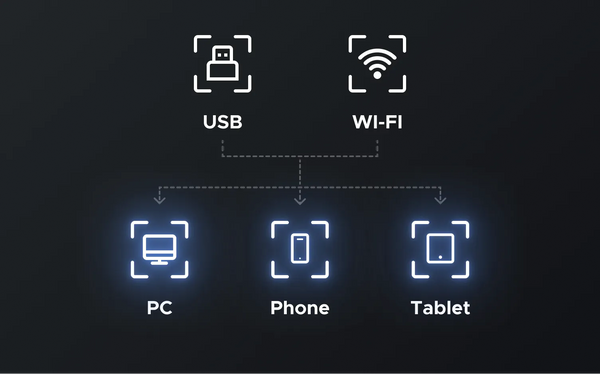

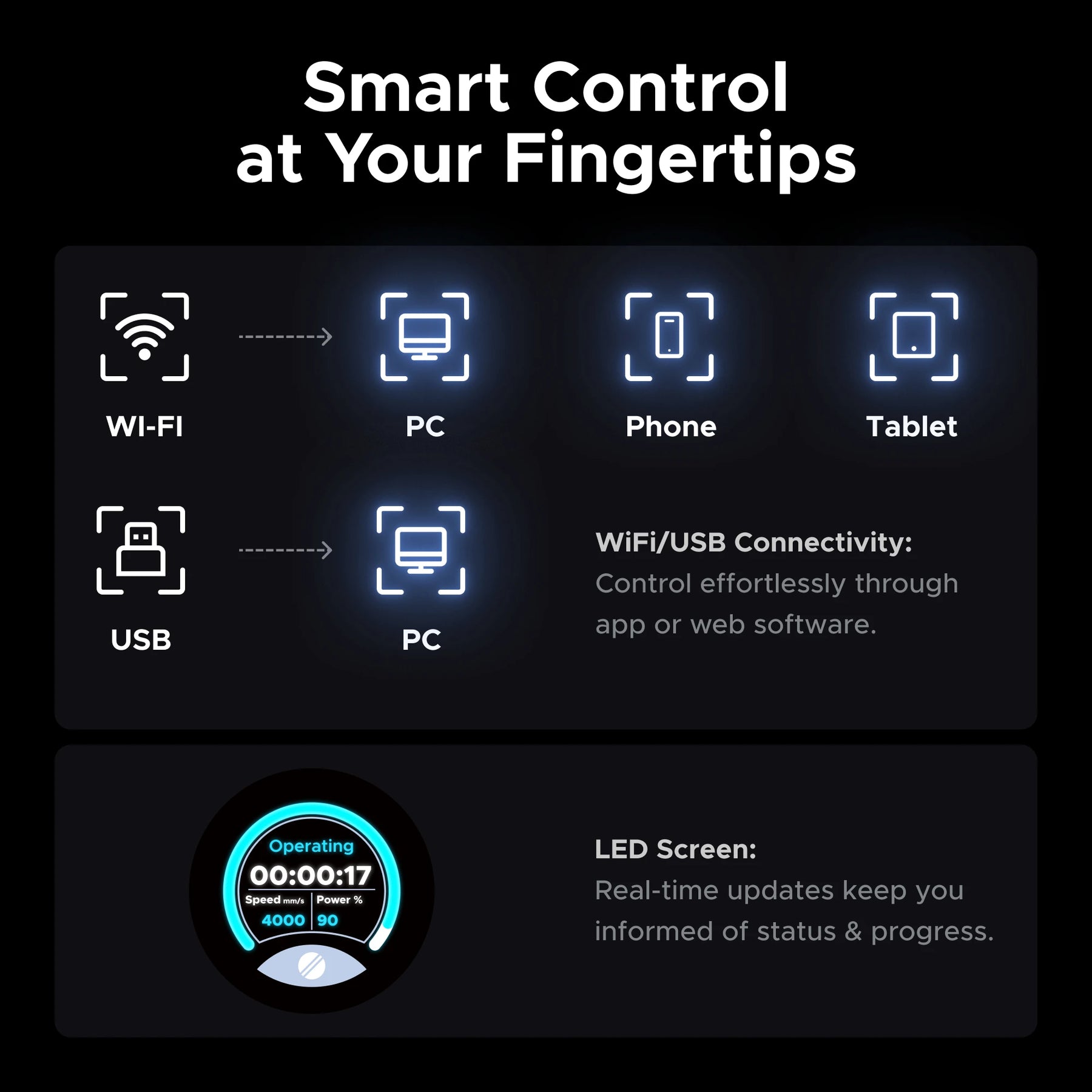

WIFI & USB Connectivity

Supports both WIFI and USB connectivity, streamlining data transfer between the device and the computer, improving work efficiency.

Auto-Focus Function

The auto-focus function simplifies operation, eliminating the need for manual adjustments, ensuring precise engraving and cutting every time.

LED Real-Time Display

The real-time LED display shows device status and operational information, providing users with clear and intuitive feedback for easy monitoring of work progress.

Ultra-HD Fisheye Lens

WIFI & USB Connectivity

Supports both WIFI and USB connectivity, streamlining data transfer between the device and the computer, improving work efficiency.

Protecting Every Detail, Quantum Brings You:

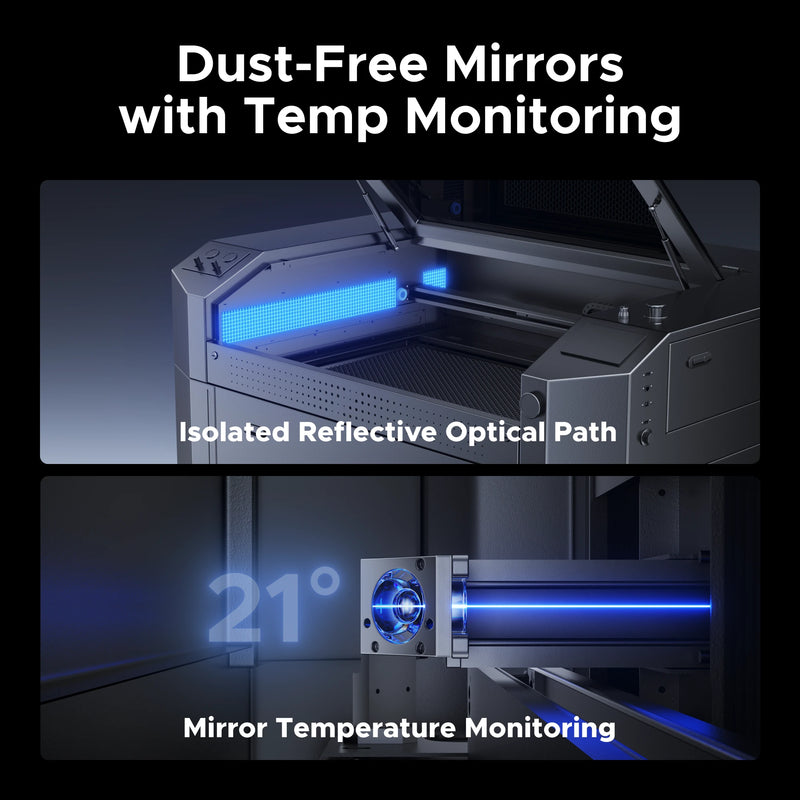

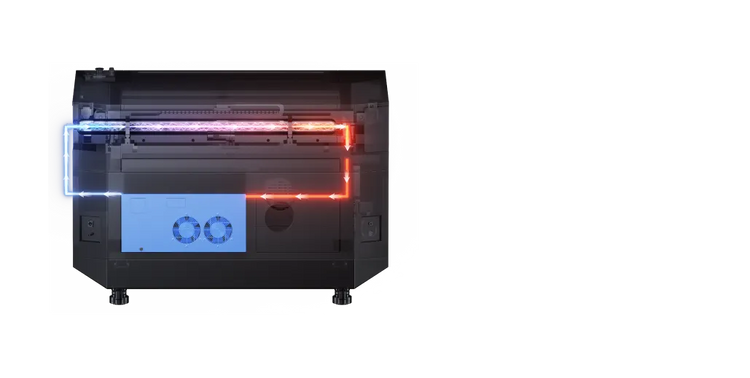

Isolated Optical Path Reflection

Provides a fully isolated optical path, ensuring the laser beam is unaffected by external factors, delivering more stable and precise engraving and cutting results.

Real-Time Mirror Temperature Monitoring

Monitors mirror temperatures in real-time, ensuring the system operates at its optimal state, preventing overheating and damage.

ROI Calculator

ROI Value Calculator

Selling Price$30

Unit Cost$2

Units Sold / Day5

Throughput Advantage:
Quantum offers higher speed and acceleration than conventional glass tube systems, leading to shorter cycle times and more available production capacity.

Glass Tube Lifetime Constraint:
Glass tubes have a fixed lifetime of around 2000 hours (≈83 days continuous operation). Over time, output declines due to maintenance, calibration drift, and tube replacement.

Only 63 days to surpass the standard glass tube solution

Based on a conservative model (same daily sales volume, partial conversion of spare capacity).

Daily Extra Profit (Quantum)

$—

—

Price Gap

$6,599

Quantum vs glass tube solution

Profit Advantage @ Day 120

$—

Quantum − glass tube

Quantum (no throughput decay) Glass tube solution (lifetime-limited) Profit advantage

Unlock Your Full Potential with Quantum

Rotary Axes Compatible

Easily Engrave or Cut on a Variety of Round & Cylindrical Surfaces

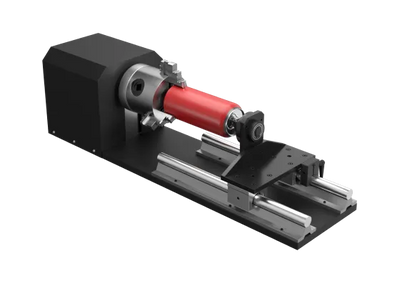

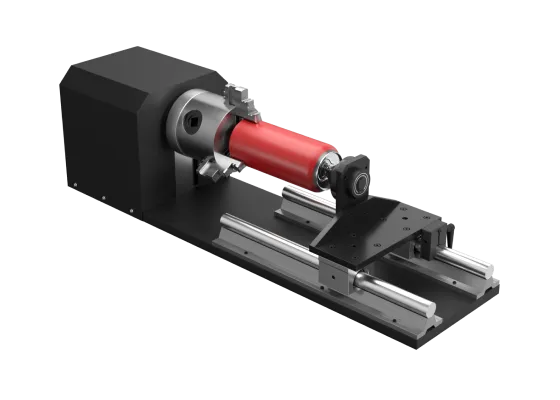

Rotary Axis with Jaw Chuck

$289.99

$299.99

Learn More

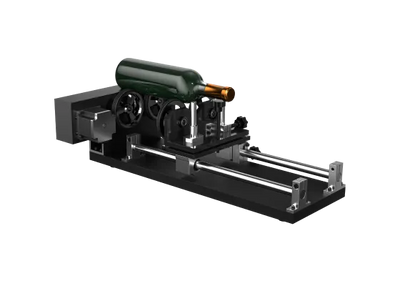

4-WHEEL ROTARY AXIS

$269.99

$299.99

Learn More

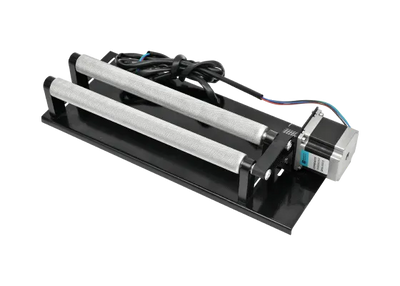

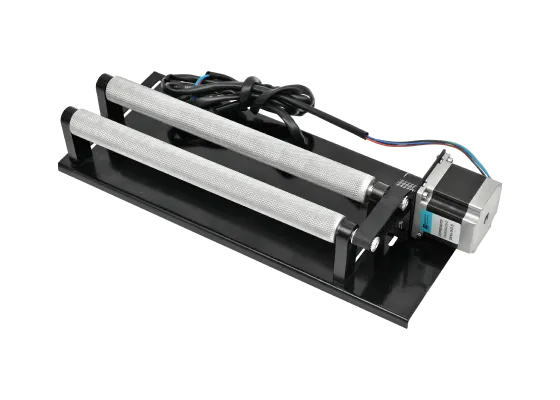

Rotary Axis Attachment

$129.99

$149.99

Learn More

Compare High-Power Laser Engravers (Above 100W)

Find the Right Machine for Your Workflow

ENTRY LEVEL

Maker AF4063-150 150W

Power 150W 150W

Work Area 63" × 40" LARGEST AREA

Max Speed 600 mm/s

Focus Auto Focus

Pass-through 4-Way

Price $6,999.99 BEST VALUE

View Details Buy Now

PROFESSIONAL

Pronto 60 130W

Power 130W 130W

Work Area 51" × 35"

Max Speed 1,000 mm/s FASTER

Focus Auto Focus

Pass-through 2-Way

Price $7,499.99

View Details Buy Now

PREMIUM

Pronto 75 150W

Power 150W 150W

Work Area 63" × 40"

Max Speed 1,000 mm/s FASTER

Focus Auto Focus

Pass-through 2-Way

Price $8,499.99

View Details Buy Now

INDUSTRIAL

Pro 3655 130W/150W

Power 130W/150W Two Options

Work Area 55.1" × 36.4"

Max Speed 1,200 mm/s

Focus Auto Focus

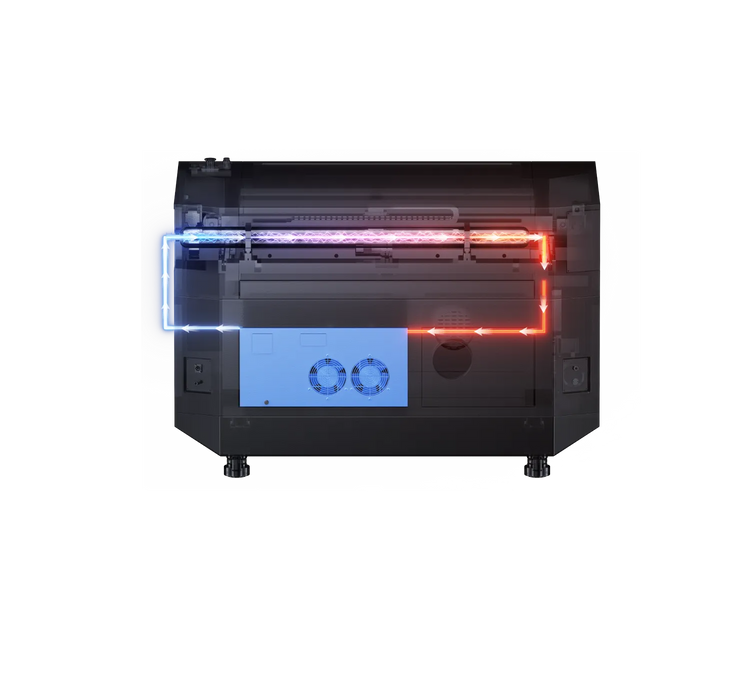

Water Chiller Built-in BUILT-IN CHILLER

Pass-through 4-Way

Price $8,999.99

View Details Buy Now

ULTRA PREMIUM

Pro Quantum 60W RF

Technology RF Laser RF TECH

Work Area 40" × 24"

Max Speed 4,200 mm/s ULTRA FAST

Spot Size 0.07 mm ULTRA PRECISION

Focus Auto Focus

Water Chiller Built-in

Price $13,599.99

View Details Buy Now

Package List

Specifications & Package List

Specifications:

Model: OMTech Quantum 40

Rated Power: 60W

Engraving Area: 39.4 x 23.6 in. (100x60 cm)

Spot Size: 0.003 in. (0.07 mm)

Type of CO2 Laser Tube: Radio Frequency

Max. Engraving Speed: 165.4 ips (4200 mm/s)

Camera Resolution: 48 MP

Airflow Capacity: 390 cfm (660 m3/h)

Bundled Software: RDWorks

Compatible Software (not incl.): LightBurn, CorelLaser

Data Transmission: USB Cable, Ethernet Cable, WiFi

Overall Dimensions (LxWxH): 63.4 x 48.8 x 40.9 in. (161x124x104 cm)

Certification: FDA

Supported Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga

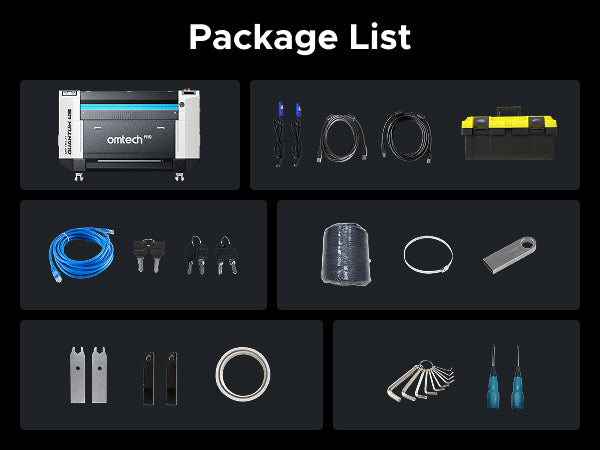

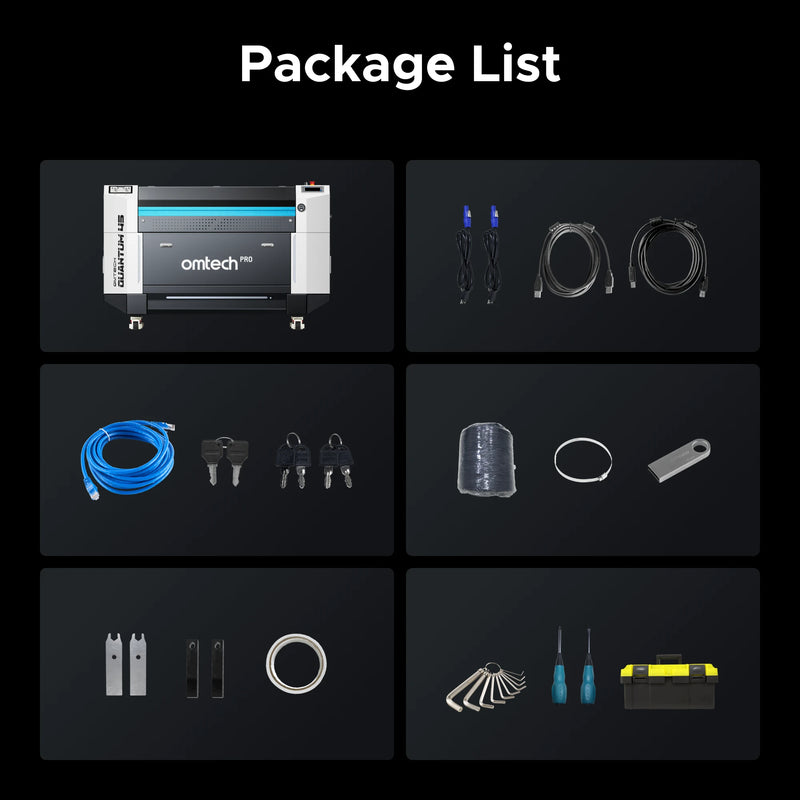

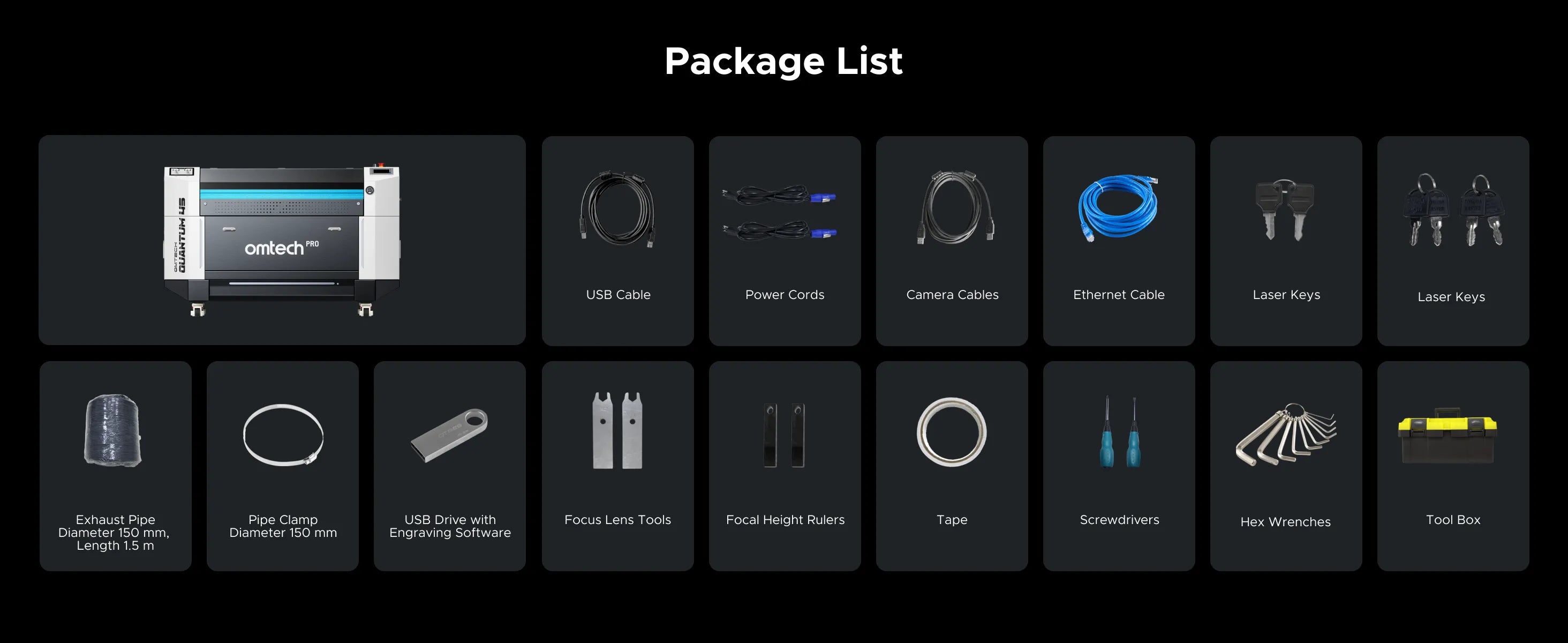

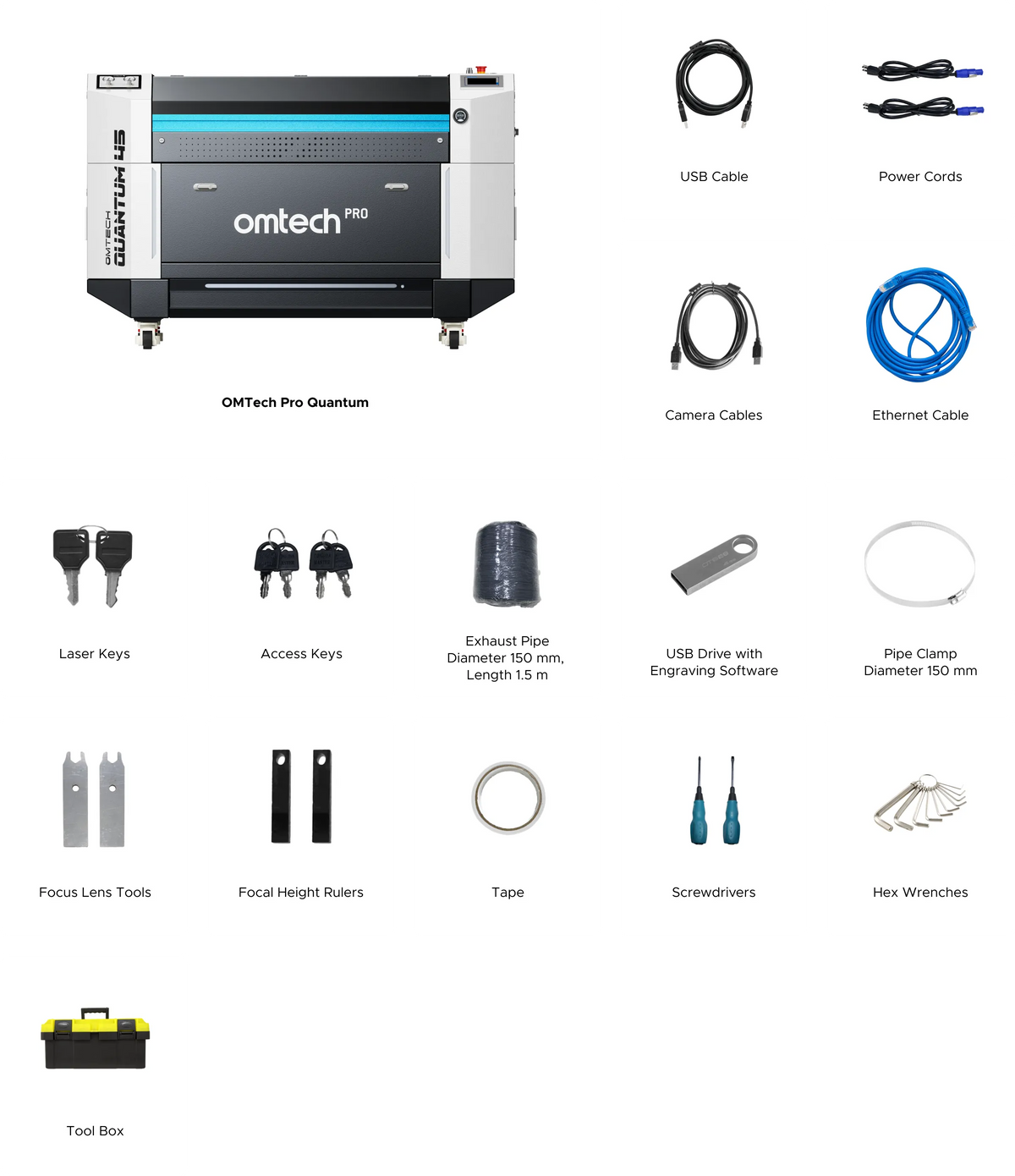

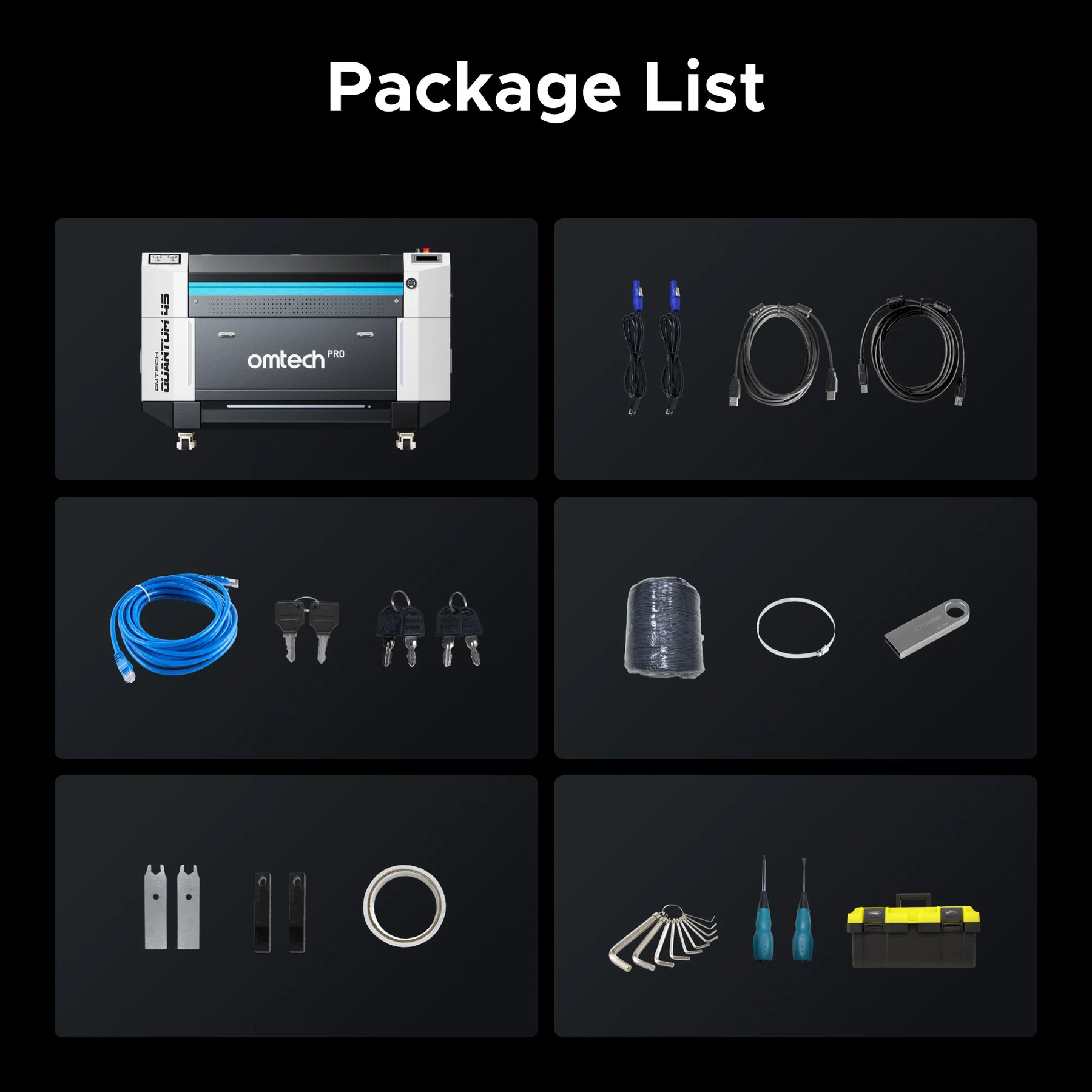

Package List:

60W CO2 Cabinet Laser Engraver x1

Exhaust Pipe x1

Set of Wrenches x1

Flathead Screwdriver x1

Phillips Screwdriver x1

Ethernet Cable x1

USB Cable x1

Clamp x1

Power Cables x2

Lens Tools x2

Laser Keys x2

Access Keys x4

Calibration Card x1

USB Flash Drive x1

Focusing Rulers x2

Tape x1

Silicone Gel x1

Frequently Asked Questions

Due to limited quantities and high demand, the expected shipping date will be displayed on the product page during checkout. Pre-sale orders will be fulfilled in batches, and each batch has a limited quantity. We recommend placing your order early to secure your spot in the next batch.

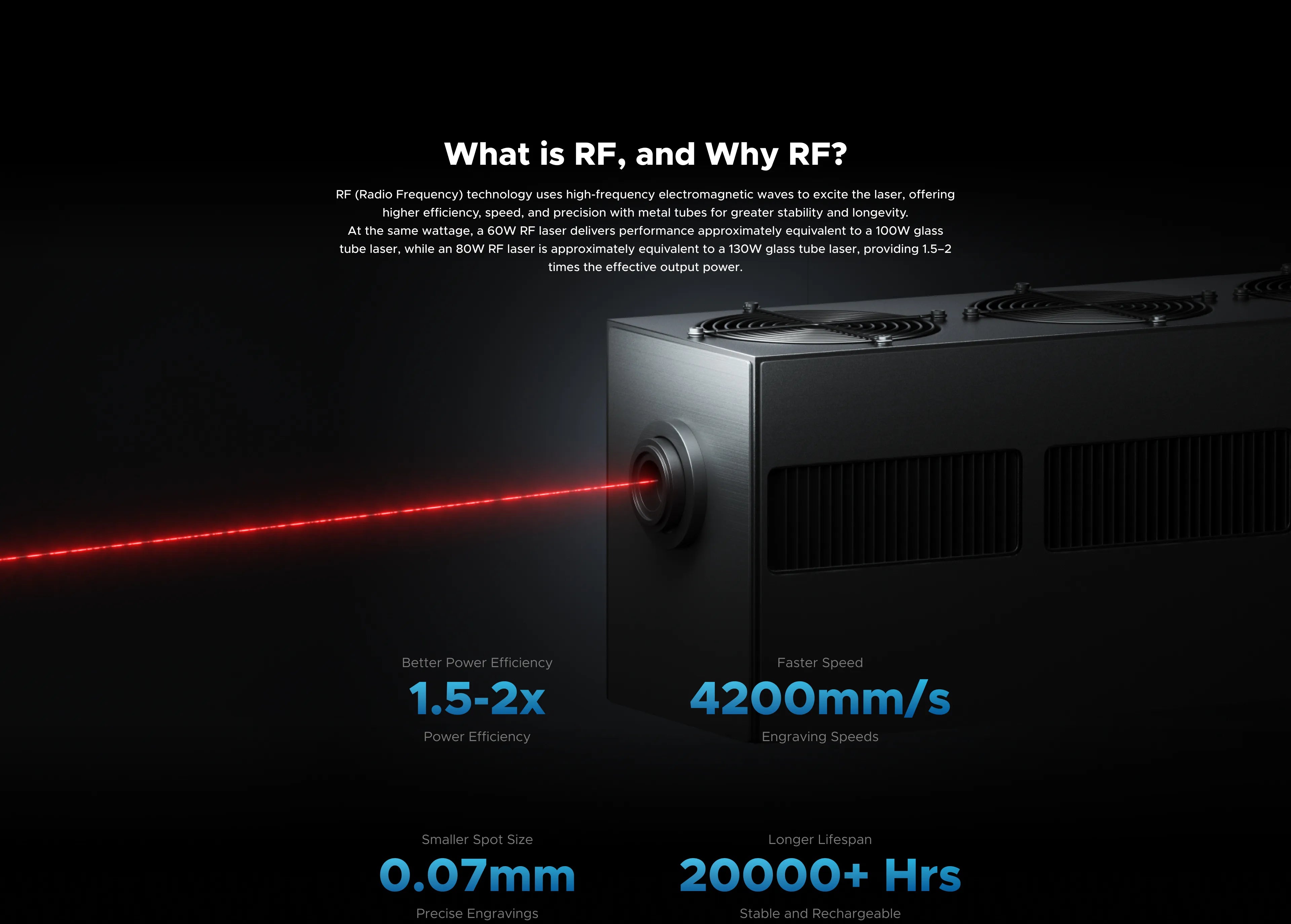

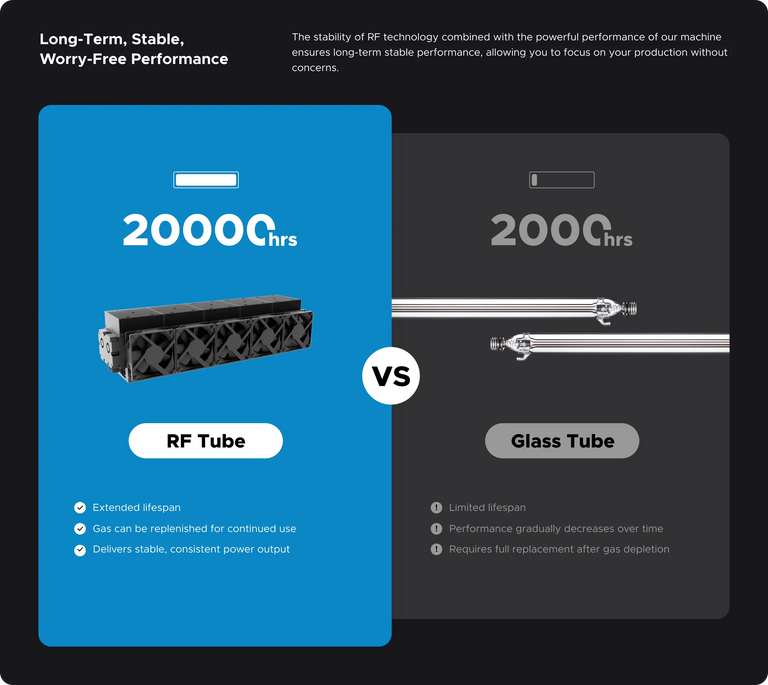

RF (Radio Frequency) CO₂ Laser Tube:

Longer lifespan – typically lasts 4–10+ years, several times longer than glass tubes.
Smaller spot size (0.07 mm) for sharper, cleaner engraving details.
Faster response time, ideal for high-speed engraving and large production runs.
More consistent output thanks to metal-sealed construction.
Low maintenance – no water cooling, no frequent realignment.
Excellent at low-power precision work, especially on wood, acrylic, leather, and coated materials.

Glass CO₂ Laser Tube:

Lower cost, great for beginners or hobby users.
Shorter lifespan and faster power decay over time.
Requires water cooling and more regular maintenance.
Larger spot size, making fine engraving less sharp.

Why is RF more expensive?

Because RF tubes offer significantly better precision, durability, stability, and productivity—making them the preferred choice for professional and industrial applications.

Rotary Axis Attachment (Standard Roller) – Basic

Simple roller design for straight, non-tapered cylinders.
Best for basic cups, tubes, and jars.

4-Wheel Rotary Axis – Intermediate

Four-wheel support for smoother rotation and better stability.
Ideal for cups, bottles, and tumblers of various sizes.

Rotary Axis with Jaw Chuck – Advanced

Precision clamping system that locks objects firmly in place.
Handles small, irregular, or uniquely shaped items with maximum accuracy.

Yes.

We will launch this product at an exclusive pre-sale discount.

After the pre-sale period, the price will increase to its standard retail level.

Please refer to our Return & Refund Policy for details.
