FINANCING and RETURNS are not available for pre-owned units

Condition:

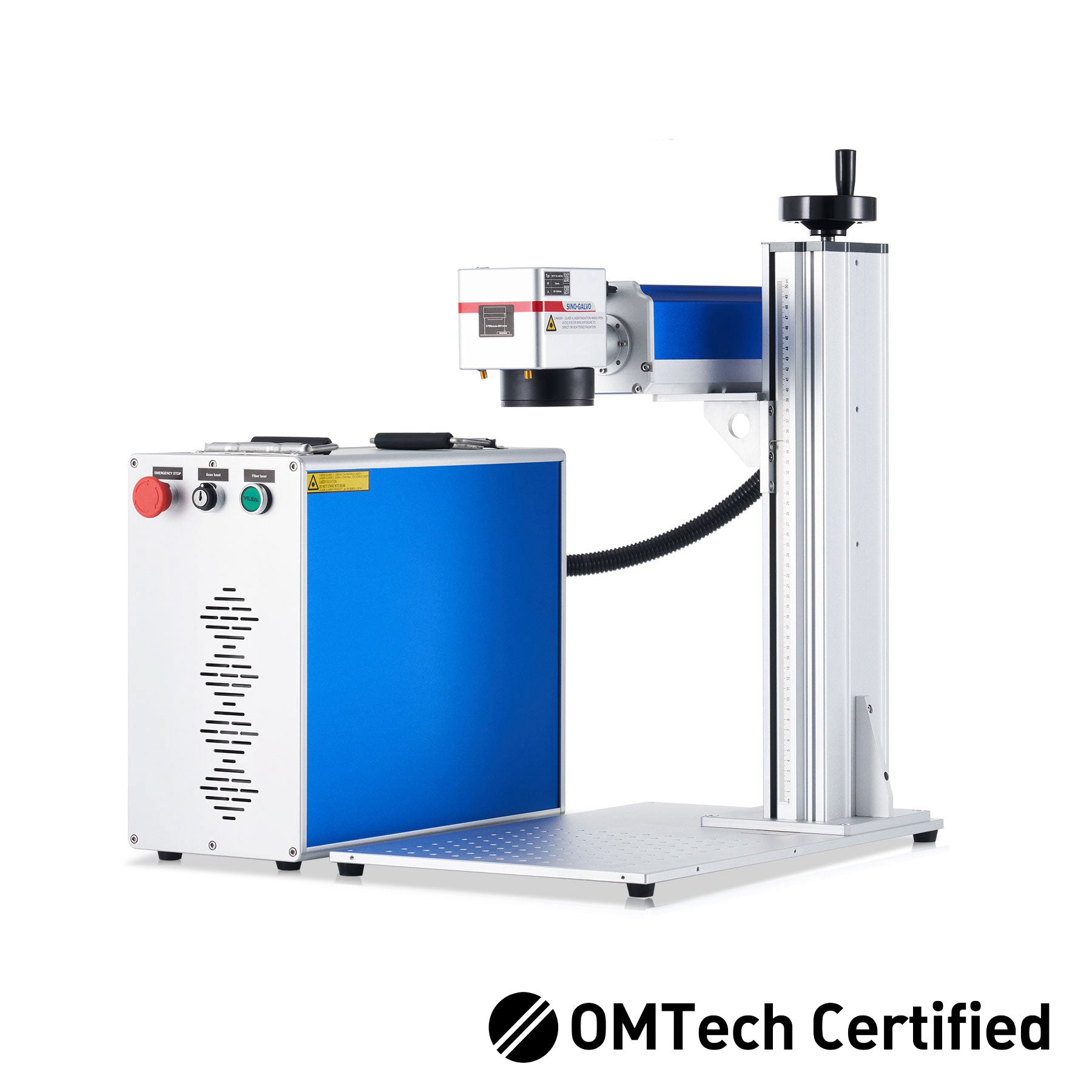

OMTech Certified:

This machine has undergone a thorough QA inspection by an OMTech Specialist, and each component has been repaired and tested for full operational performance.

Used Machines Are Sold As It Is:

Used laser machines are sold in their current state and condition. All sales for pre-owned units are final, machines will not be eligible for returns/refunds.

Photo Guide:

View condition examples of previous Pre-Owned models: Click Here

Safe Shipping:

This unit is carefully secured to a reinforced pallet and protected with several layers of bubble wrap for a dependable delivery.

Convenient Size:

• 7.9 x 7.9 in. (200x200 mm) marking area
• Net Weight: 78 lb. (35.5 kg)
• Package Dimensions: 29.5 x 14.6 x 29.9 in. (75x37x76 cm)
• Package Weight: 121 lb. (55 kg)

• Enough space to tackle metalwork projects
• The high-speed galvanometer drive system makes it easy to focus the variable lens.

Compatibility:

• Includes EzCad2 software compatible with Windows XP/7/10 (32 and 64 bits)
• Work side-by-side with programs like AutoCAD, CorelDraw, Adobe Illustrator, Photoshop, and more
• Photo-ready for images in BMP, GIF, JPG, DXF, PNG, and AI formats, and more

Power:

• The integrated power supply features increased response speed and performance — it’s beaming with possibilities!
• Laser Source: Raycus
• Galvanometer Source: Galvo-Tech
• Output Power: 50W
• Laser Wavelength: 1064 nm
• Laser Frequency: 50-100 kHz

• Max. Engraving Speed: 275.6 ips (7000 mm/s)
• Max. Engraving Depth: 0.004 in. (0.1 mm) on a single pass
• Positioning Accuracy: ±0.000004 in. (±0.1 μm)
• Est. Laser Service Life (MTTF): 100,000 hr.


Cutting Edge Features:

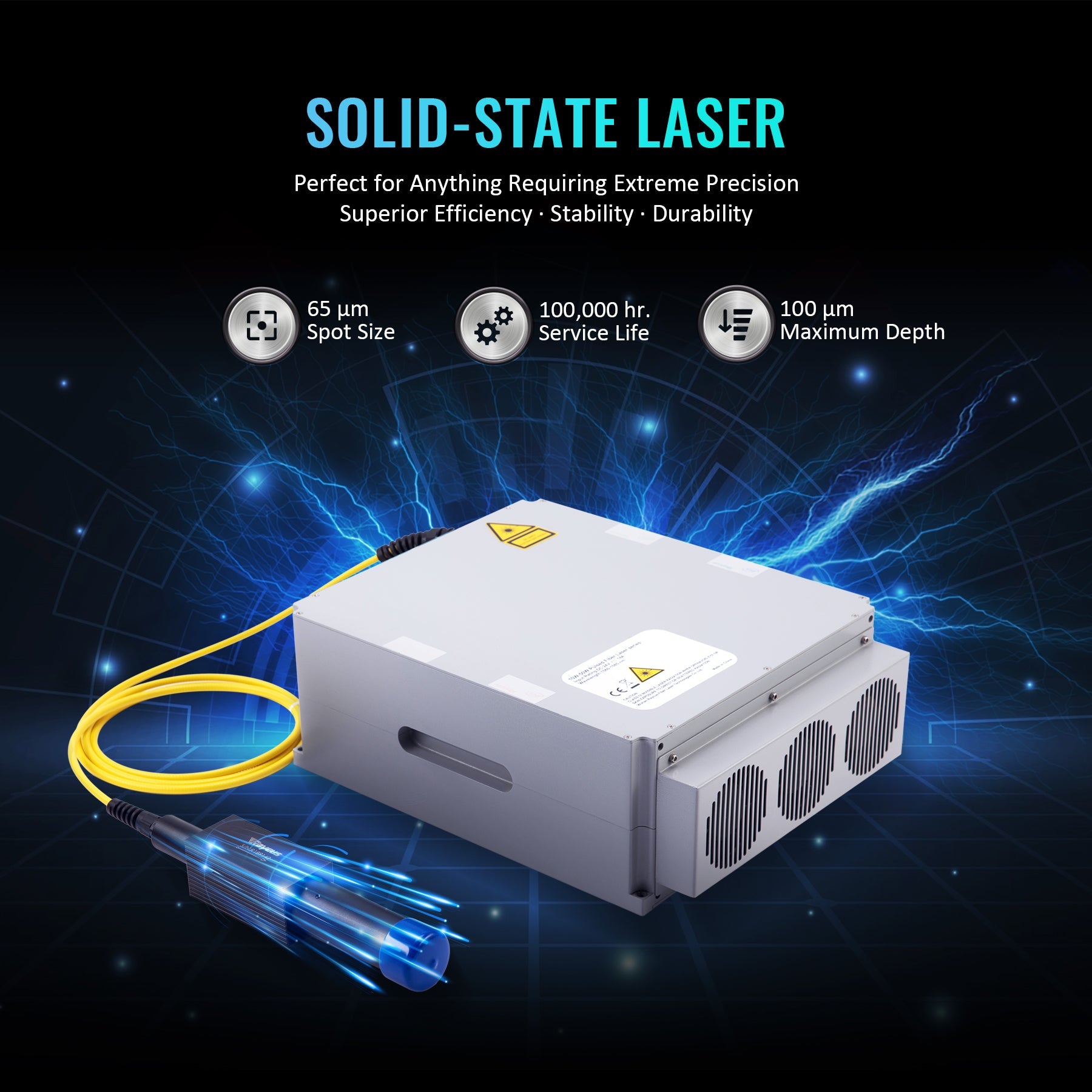

• 50W SOLID-STATE LASER: Whether professional engraver or inspired DIYer, this 50W fiber laser marking machine from OMTech will allow you to bring your ideas to life with greater speed and precision than ever before, etching precious and base metals with perfect clarity; ideal for applications with tight tolerances, the laser source is also incredibly durable with an average service life over 100,000 hours

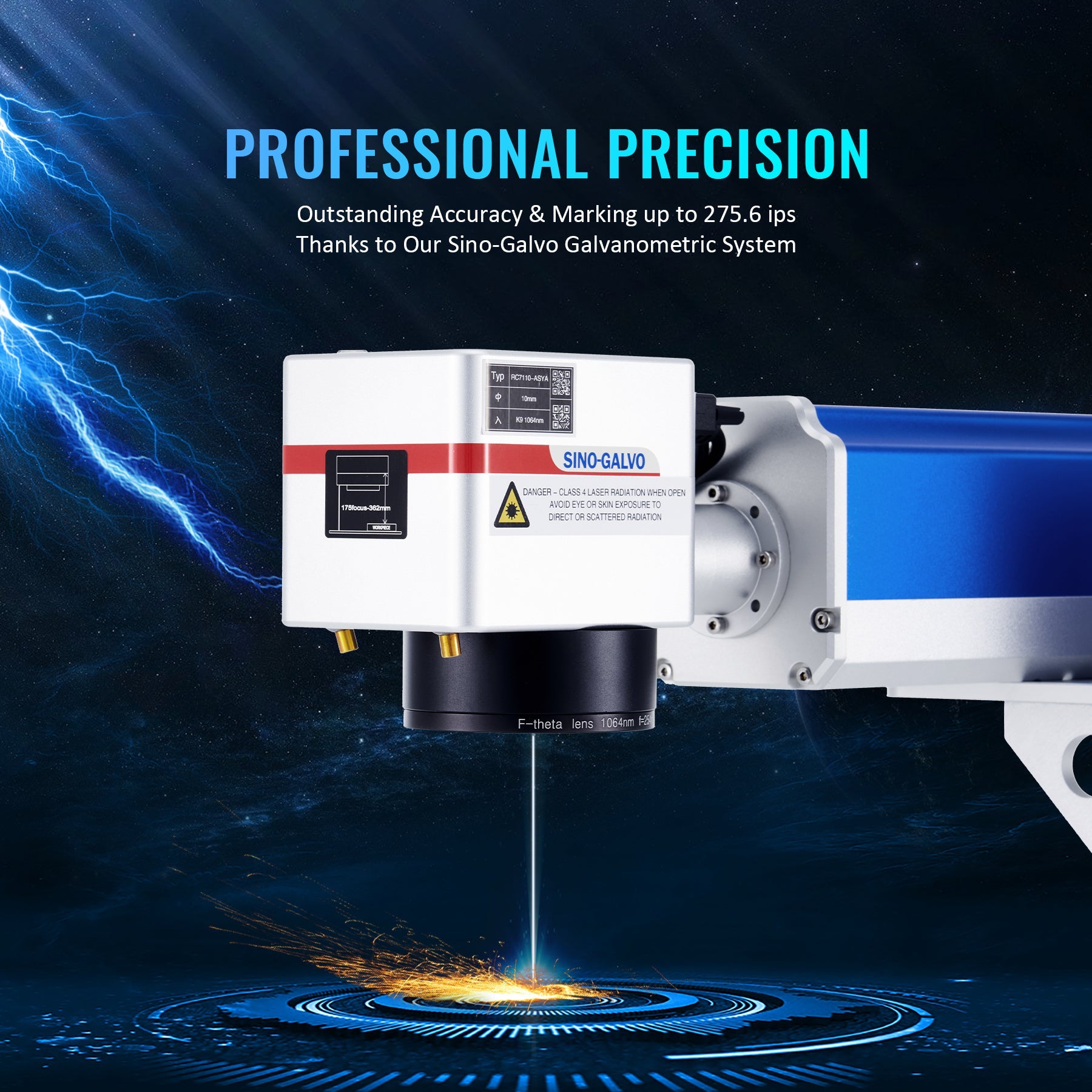

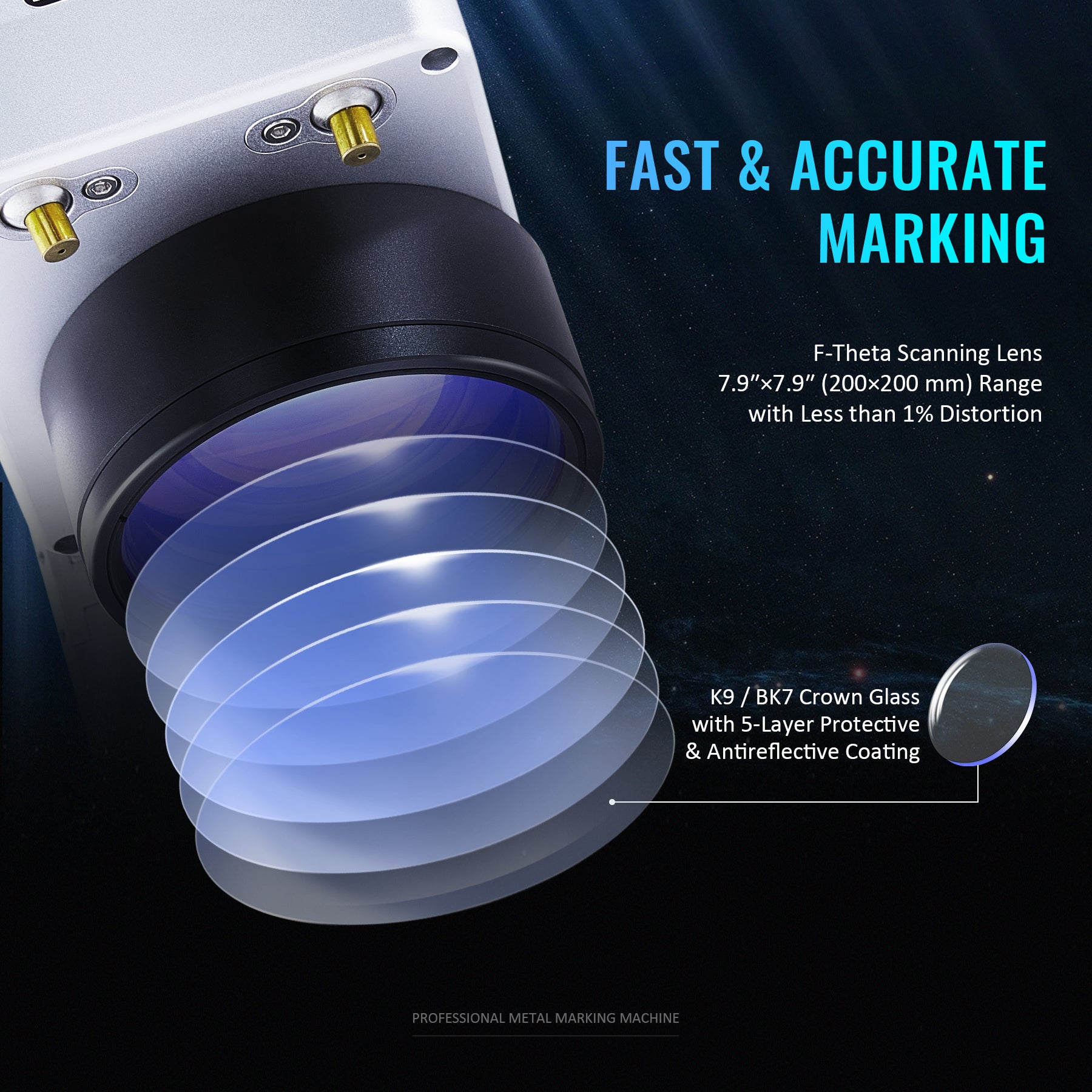

• PRECISION OPTICS: This laser metal marking machine's high-speed galvanometric system gives you extreme stability for quick scanning, engraving, and turnaround; make your mark on gemstones, silicon, steel, aluminum, brass, and more as the compact Fθ field lens uses its air-spaced design and protective & anti-reflective coatings to provide throughput with less than 1% distortion
• 200x200mm WORKBED: This fiber laser cutter provides a 9x7.9 inch (20x20 cm) bed with a built-in workspace grid and external laser locator for fast and exact calibration and focusing; one pair of protective eyewear comes included to safely handle the open design; and grid dots facilitate the positioning bars that can be used to hold your material in just the right spot every time as your laser works at speeds up to 275.6 ips (7000 mm/s)
• EASY OPERATION: This laser cutting and engraving tool comes bundled with EzCad2 software compatible with 32 and 64-bit editions of Windows 7, 8, and 10 and a wide range of image formats (see below); the included footpad trigger keeps batch work humming along, while the emergency button stands by so nothing goes awry; and when you need to engrave rings, bracelets, or other curved surfaces, your rotary axis attachment (not incl.) can be easily connected using the plug-and-play 4-pin connection port
• SUPERIOR SUPPORT & SERVICE: From garage artists to backyard businesses to professional jewelers and workshops, the OMTech community continues to grow thanks to our passionate dedication to making quality engraving available to all; order your own fiber engraver today and enjoy fast US-based shipping, a strong 2 year warranty, and helpful customer service and tech support, available weekdays from 8 am to 4:30 pm PST

Package Includes:

• 1 x Split-Fiber Laser Engraver
• 2 x Positioning Bars
• 8 x Attaching Bolts
• 1 x Tape Measure
• 1 x USB Flash Drive (with Software)
• 1 x Protective Eyewear
• 1 x Foot Switch
• 1 x Power Cord
• 1 x Hex Wrench Set
• 1 x Tool Box
• 1 x Monitor Mount
• 1 x USB Cable
• 1 x Height Lock
• 1 x Instruction Manual

Warranty:

• Great: 1-year parts warranty on pre-owned fiber laser machines
• Good: 6-month parts warranty on pre-owned fiber laser machines
• Functional: 3-month parts warranty on pre-owned fiber laser machines

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
• One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

Summary:

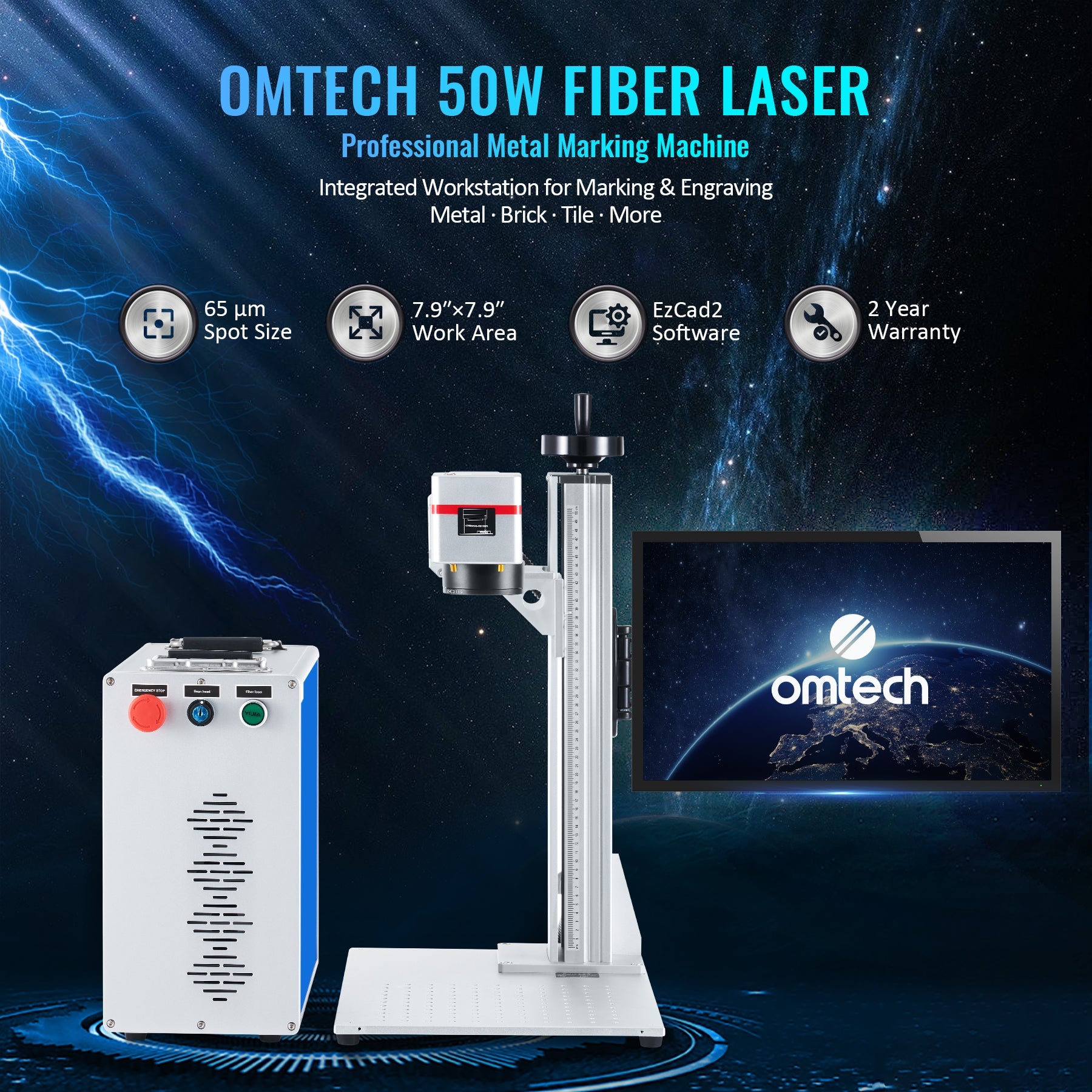

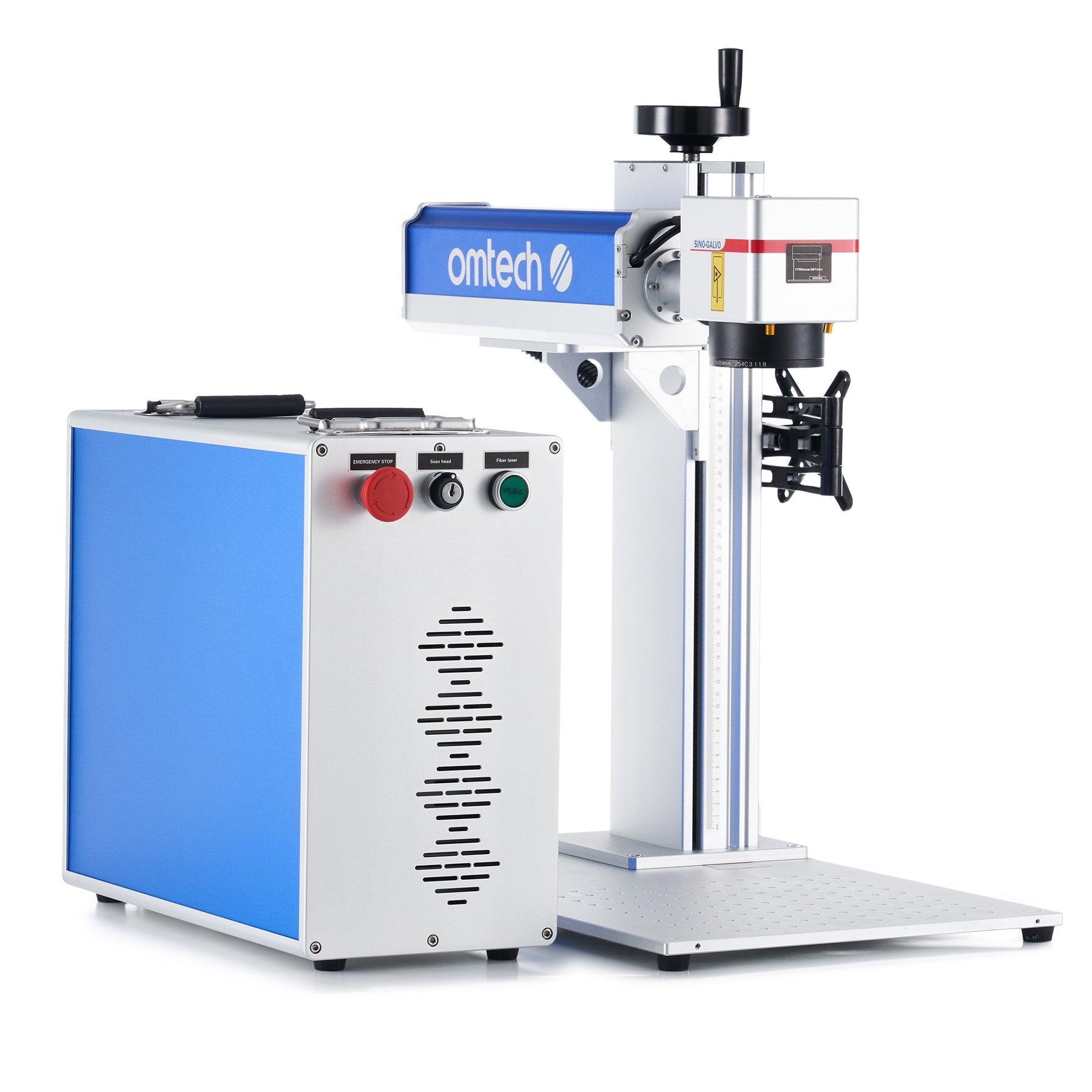

• The perfect machine for marking on bare metal surfaces! Equipped with a Galvo lens, workbench surface, and more, our fiber laser marker is ready to engrave your dreams into reality. Get ready to laser your way through a variety of metals with ease. Soon, you and your laser will be beaming with possibilities!

Compatible Materials:

• Acrylic
• Hard Plastics
• Brick
• Granite
• Marble
• Tile
• Aluminum
• Gold
• Silver
• Stainless Steel
• Brass
• Titanium
• Tungsten

*Contact us with questions on specific materials not listed, we can process a sample for confirmation. Some PVC-based acrylics can create toxic fumes when lasered.
